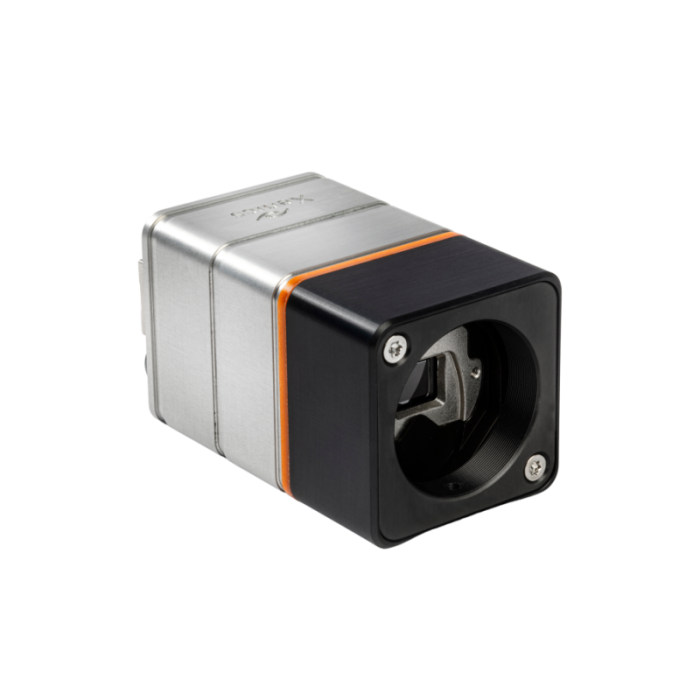

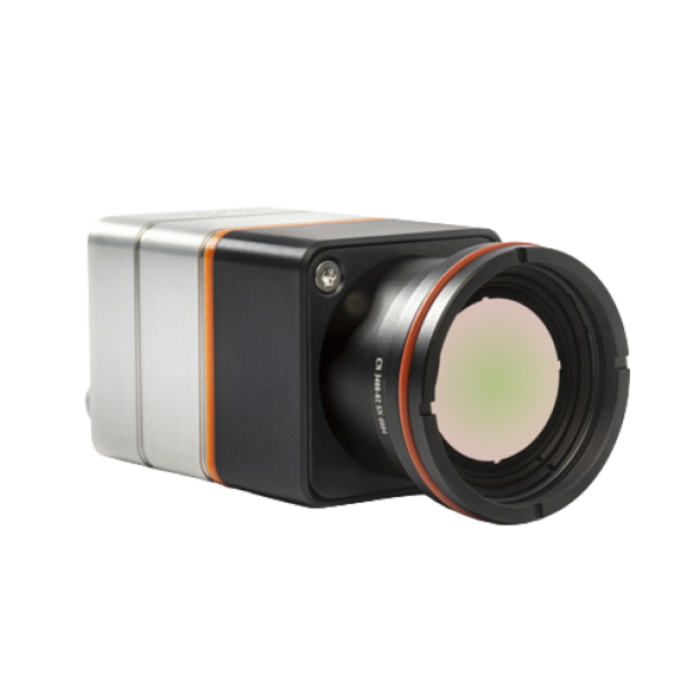

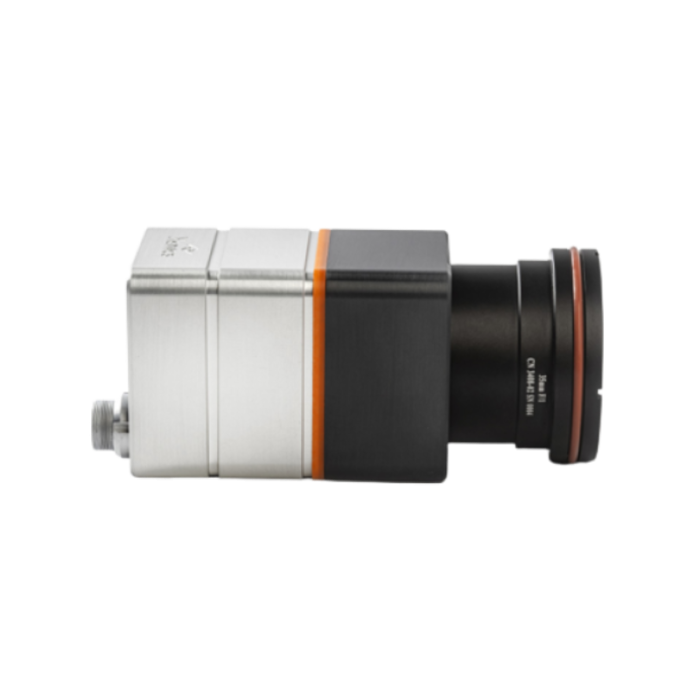

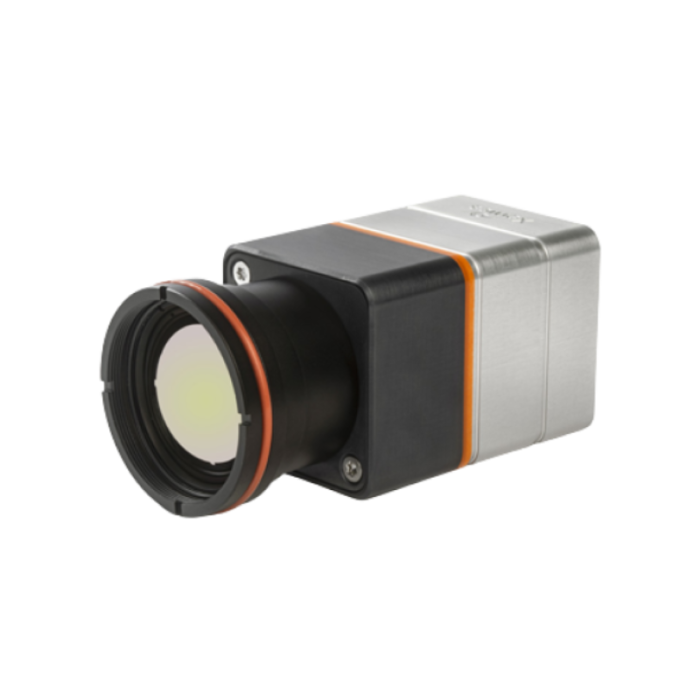

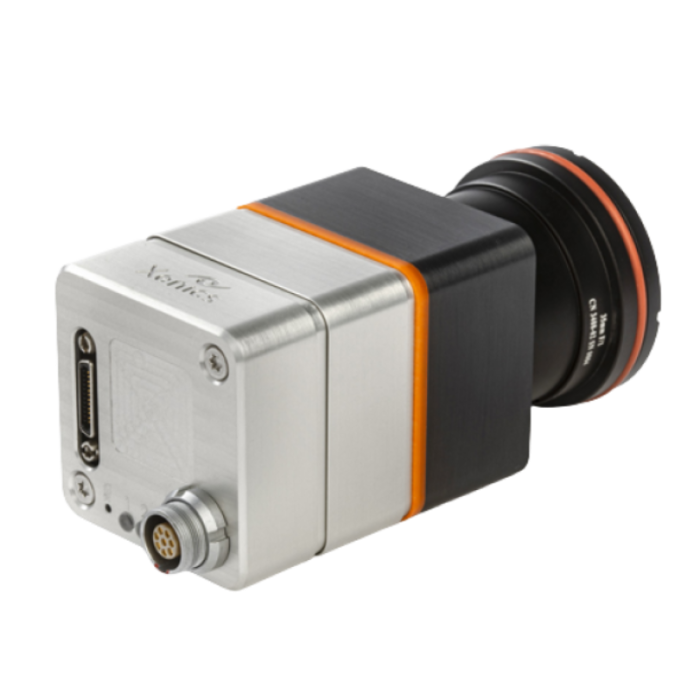

Xenics - Ceres

Compact, High-Resolution Thermal and Thermographic cameras

Key Features

  • Sensor: uncooled microbolometer with 640 x 480 or 1280 x 1024 pixels
  • Frame rate: up to 60 Hz (full frame)
  • Responsitivity: 8–14 µm
  • Thermographic (T) and Thermal (V) version
  • Interface: CameraLink or GigE Vision (PoE)
  • Operating temperature: -40°C to 70°C
  • Protection: high shock and vibration resistance
  • Flexible Optical Mount and Lens options

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

Hasta
Hasta
Hasta
Nombre del producto Wavelength range Resolution (MP) Frame rate (Hz) Lens mount Interface Sensor model Manufacturer Dimension (depth, mm) Dimension (height, mm) Dimension (width, mm) Resolution Horizontal (Px) Housing Pixel size (µm) Scan type Sensor format Sensor size diagonal (mm) Sensor type Shutter type Weight (kg)
XENICS CERES-T-1280-50-GE (45HZ)
 Colour; LWIR 1.3 45 M34 x 0.5; M45 x 0.75 Gigabit Ethernet Microbolometer Xenics 84 65 68 1280 standard 12 area N/A 9.84 µ bolometer Rolling shutter 0.650
XENICS CERES-T-640-50-GE (9HZ)
 Colour; LWIR 0.3 9 M24 x 0.5 Gigabit Ethernet Microbolometer Xenics 75 45 45 640 standard 12 area N/A 9.84 µ bolometer Rolling shutter 0.220
XENICS CERES-T-640-50-GE (60HZ)
 Colour; LWIR 0.3 60 M24 x 0.5 Gigabit Ethernet Microbolometer Xenics 75 45 45 640 standard 12 area N/A 9.84 µ bolometer Rolling shutter 0.220
XENICS CERES-T-640-50-CL (9HZ)
 Colour; LWIR 0.3 9 M24 x 0.5 CameraLink Microbolometer Xenics 67 45 45 640 standard 12 area N/A 9.84 µ bolometer Rolling shutter 0.220
XENICS CERES-T-640-50-CL (60HZ)
 Colour; LWIR 0.3 60 M24 x 0.5 CameraLink Microbolometer Xenics 67 45 45 640 standard 12 area N/A 9.84 µ bolometer Rolling shutter 0.220
XENICS CERES-T-1280-50-CL (60HZ)
 Colour; LWIR 1.3 60 M34 x 0.5; M45 x 0.75 CameraLink Microbolometer Xenics 81.4 65 68 1280 standard 12 area N/A 9.84 µ bolometer Rolling shutter 0.600
XENICS CERES-V-1280-CL
 Colour; LWIR 1.3 60 M34 x 0.5 CameraLink Microbolometer Xenics 81.4 65 68 1280 closed housing; standard 12 area N/A 20 µ bolometer Rolling shutter 0.537
XENICS CERES-V-1280-GE
 Colour; LWIR 1.3 60 M34 x 0.5 Gigabit Ethernet Microbolometer Xenics 81.4 65 68 1280 closed housing; standard 12 area N/A 20 µ bolometer Rolling shutter 0.537
XENICS CERES-V-640-GE
 Colour; LWIR 0.3 60 M34 x 0.5 Gigabit Ethernet Microbolometer Xenics 75 45 45 640 closed housing; standard 12 area N/A 9.6 µ bolometer Rolling shutter 0.210
XENICS CERES-V-640-CL
 Colour; LWIR 0.3 60 M34 x 0.5 CameraLink Microbolometer Xenics 66.9 45 45 640 closed housing; standard 12 area N/A 9.6 µ bolometer Rolling shutter 0.200
XENICS CERES-T-1280-50-GE (9HZ)
 Colour; LWIR 1.3 9 M34 x 0.5; M45 x 0.75 Gigabit Ethernet Microbolometer Xenics 75 45 45 1280 standard 12 area N/A 9.84 µ bolometer Rolling shutter 0.650
XENICS CERES-T-1280-50-CL (9HZ)
 Colour; LWIR 1.3 9 M34 x 0.5; M45 x 0.75 CameraLink Microbolometer Xenics 67 45 45 1280 standard 12 area N/A 9.84 µ bolometer Rolling shutter 0.600

¿Por qué elegir Xenics - Ceres?

Reveals properties not visible with other technologies

The particular technology used by Xenics ensures minimal thermal crosstalk between the detector elements, resulting in an exceptional resolution. This makes thermal radiation visible, allowing you to observe processes that are invisible to other technologies. With radiometric calibration, it is even possible to measure absolute temperatures in images.

Easy system integration

The cameras offer a high degree of flexibility in terms of frame rate, integration time, user interface and temperature range, enabling the user to fully adapt it to the given application. The Xeneth SDK and graphical user interface offer access to all camera functions, without the need to be a thermal camera expert.

Proven industrial interfaces

The series offers standard interfaces as CameraLink and Gigabit Ethernet (GigE Vision with PoE) for an easy and flexible connection to the PC. Thanks to these standardised industrial imaging interfaces, a wide variety of Common Vision Blox software tools can be used for data processing.

High degree of protection

The Gobi series has been designed to resist shocks up to 40 G for 11 ms (according to MIL-STD810G) and vibrations up to 5 G (20 Hz to 2,000 Hz) without being damaged. This is a particular advantage for mobile or aerial applications.

Xeneth: Graphical user interface to set up, control, record and measure temperature

Xeneth allows for easy set-up and control of infrared cameras and acquisition of images. All IR camera control settings can be optimised by the user. Xeneth software is supplied with every Xenics camera for easy set-up and control of the camera.
