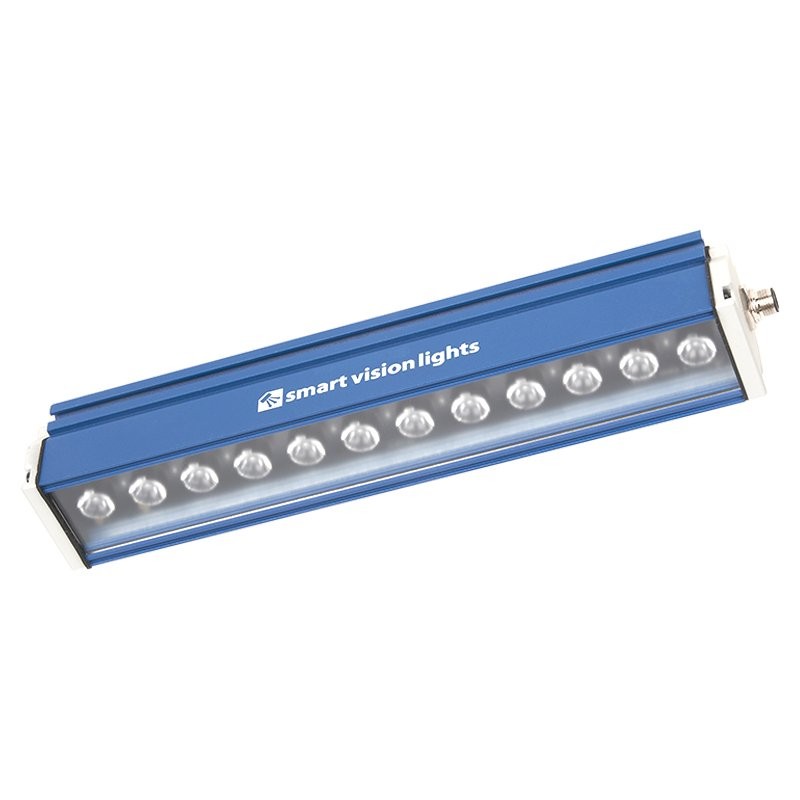

SVL BAR LIGHT LSR150-365
SKU#:
60963
Linear light with high intensity over 340,000 lux
Nota: ¡El producto real puede variar respecto a la imagen!
Las descargas se encuentran en la serie de productos correspondiente:
Smart Vision Lights - LSR
Contáctanos >
Solicitar precios
Se exceptúan errores y omisiones. Se aplican nuestros Términos y Condiciones Generales. Abastecemos exclusivamente a clientes corporativos.
Product Features
| Attributes | |
|---|---|
| Beam angle | narrow |
| Certificates | CE, RoHS |
| Connectors | M12 5-pin A-coded |
| Dominant wavelength (nm) | 365 |
| Emitting surface height (mm) | 40 |
| Emitting surface inner diameter (mm) | N/A |
| Emitting surface outer diameter (mm) | N/A |
| Emitting surface width (mm) | 146 |
| Input current (mA) | 530 |
| IP rating | IP65 |
| LED risk group | 0 (exempt) |
| Light colour | UV |
| Light distribution | direct |
| Lighting geometry | bar light |
| Lighting technique | backlight, frontlight |
| Mechanical depth (mm) | 50 |
| Mechanical height (mm) | 54 |
| Mechanical width (mm) | 181 |
| Power supply voltage (VDC) | 24 |
| Smart | no |
| Weight (kg) | 0.455 |
- Versatile Illumination: Supports Bright Field, Dark Field, and Direct Lighting configurations for diverse applications and inspection types.
- Multi-Drive™ mode offers flexible lighting with both continuous and OverDrive strobe modes
- SmartVisionLink enabled: Allows for easy, remote intensity adjustments in both continuous and OverDrive strobe modes, enhancing control and precision.
- Sizes: 150 mm, 300 mm, 450 mm, 600 mm, 900 mm, 1200 mm
- Wavelength: WHI (white), 365 nm (UV), 395 nm (UV), 470 nm (blue), 530 nm (green), 625 nm (red), 850 nm (IR), 940 nm (IR)
- Lens Configuration: Narrow (10°, standard), Wide (30°), Line (50° fan angle, 10° width),
- Linear Polarizer: Selectable between "none" and "Factory Installed"
- IP rating: IP65
- Any configuration can be requested
