VIEWORKS VC-4MC-M80E0-FM
SKU#:
17794
Ultra high-speed machine vision camera.

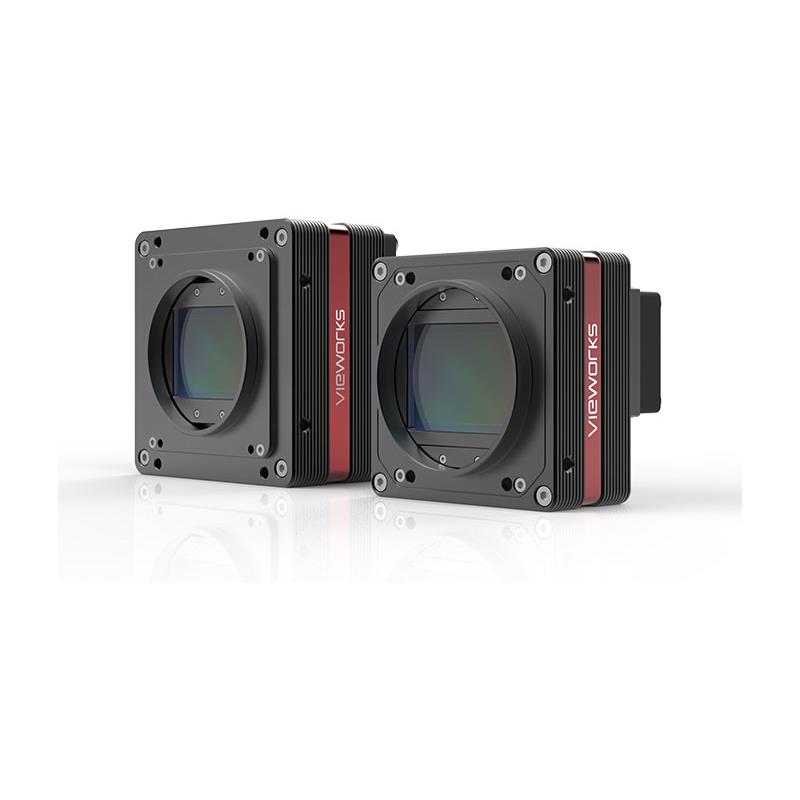

Nota: ¡El producto real puede variar respecto a la imagen!
Las descargas se encuentran en la serie de productos correspondiente:
Vieworks - VC
List Price
Your Discount
Your Price
2.110,00 €
Product not available in your country
Preço e disponibilidade sob consulta
Contáctanos >
Solicitar precios
Se exceptúan errores y omisiones. Se aplican nuestros Términos y Condiciones Generales. Abastecemos exclusivamente a clientes corporativos.
Product Features
| Attributes | |
|---|---|
| Wavelength range | Monochrome, Visible |
| Resolution (MP) | 4.2 |
| Frame rate (Hz) | 78.9 |
| Lens mount | Nikon F-Mount |
| Interface | CameraLink |
| Interface configuration | CameraLink Base |
| Sensor model | CMV4000 |
| Active sensor size (horizontal, mm) | 11.2 |
| Active sensor size (vertical, mm) | 11.2 |
| Bit depth | 10, 8 |
| Connector a: video | 2x CL |
| Connector b: power | Hirose 6-pin |
| Dimension (depth, mm) | 83 |
| Dimension (height, mm) | 68 |
| Dimension (width, mm) | 68 |
| Flange focal distance | 46.5 |
| Resolution Horizontal (Px) | 2048 |
| Housing | standard |
| Output formats | Mono10, Mono8 |
| Pixel clock (MHz) | 85 |
| Pixel size (µm) | 5.5 |
| Power consumption (W) | 6 |
| Power supply voltage (VDC) | 10 - 14 |
| Scan type | area |
| Sensor configuration | Single sensor |
| Sensor format | 1" |
| Sensor size diagonal (mm) | 15.93 |
| Sensor type | CMOS |
| Shutter type | Global shutter/Prog scan |
| Software CameraSuite | no |
| Software driver CVB | no |
| Resolution Vertical (Px) | 2048 |
| Weight (kg) | 0.460 |
- Sensor: high speed CMOS sensors
- Resolution: 2–155 megapixel
- Frame rate: up to 454 fps
- Bit depth: 8 bit, 10 bit or 12 bit data output
- Features: fixed pattern noise correction, field upgradable firmware, pixel defect correction
- Lens: C-, F-, M42 or M72-Mount
- Interface: CameraLink, CoaXPress or 10 GigE
- Software: compatible with Common Vision Blox
