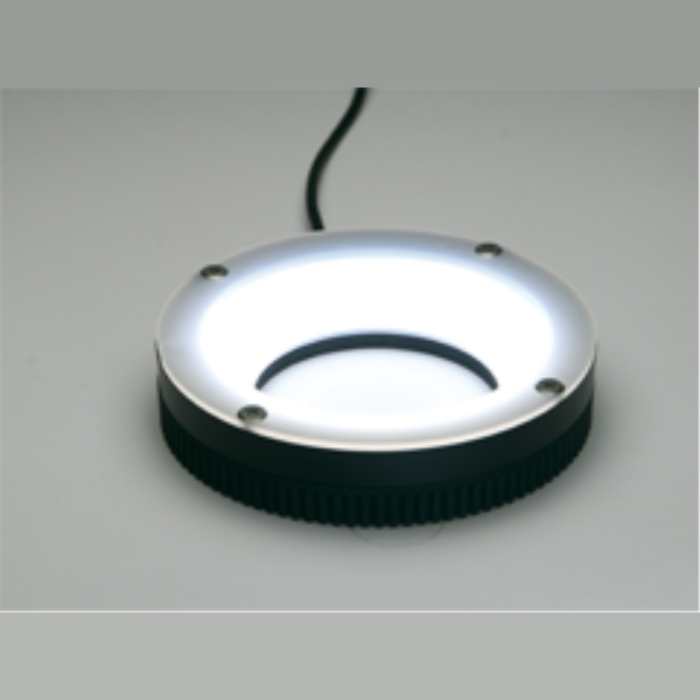

CCS - HPR2

High-power ring illumination with extreme brightness and uniformity – available in white, red, and blue for optimal vision system performance.

Key Features

  • Colour: white (6.000 K), red (635 nm), blue (470 nm) and RGB (622nm / 525 nm / 470 nm)
  • Power supply: 24V light series
  • Connector: standard connector, M12 and flying leads
  • Dimensions: outer diameters of 50 mm to 424 mm
  • Miscellaneous: accessories like the light joint bracket and the expansion mounting bracket available for some models

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

À
À
Nom de produit Beam angle Connectors Dominant wavelength (nm) Emitting surface height (mm) Emitting surface inner diameter (mm) Emitting surface outer diameter (mm) Emitting surface width (mm) Intensity control method IP rating LED risk group Light colour Light distribution Lighting geometry Lighting technique Manufacturer Smart Weight (kg)
CCS HPR2-75RD
 not specified N/A 635 N/A 41 91 N/A N/A N/A 0 (exempt) Red diffused ring light dark field; frontlight CCS no 0.160
CCS HPR2-200RD
 not specified N/A 635 N/A 166 216 N/A N/A N/A 0 (exempt) Red diffused ring light dark field; frontlight CCS no 0.380
CCS HPR2-400RD-FT
 not specified N/A 635 N/A 412 424 N/A N/A N/A 0 (exempt) Red diffused ring light dark field; frontlight CCS no 1.050
CCS HPR2-400FC-FT
 not specified N/A 470; 525; 622 N/A 412 424 N/A N/A N/A 0 (exempt) FC; RGB diffused ring light dark field; frontlight CCS no 1.050
CCS HPR2-50RD
 not specified N/A 635 N/A 45 50 N/A N/A N/A 0 (exempt) Red diffused ring light dark field; frontlight CCS no 0.046
CCS HPR2-50SW
 not specified N/A N/A N/A 45 50 N/A N/A N/A 0 (exempt) White diffused ring light dark field; frontlight CCS no 0.046
CCS HPR2-50BL
 not specified N/A 470 N/A 45 50 N/A N/A N/A 1 Blue diffused ring light dark field; frontlight CCS no 0.046
CCS HPR2-50FC
 not specified N/A 470; 525; 622 N/A 45 50 N/A N/A N/A 0 (exempt) FC; RGB diffused ring light dark field; frontlight CCS no 0.046
CCS HPR2-75FC
 not specified N/A 470; 525; 622 N/A 41 91 N/A N/A N/A 0 (exempt) FC; RGB diffused ring light dark field; frontlight CCS no 0.160
CCS HPR2-75SW
 not specified N/A N/A N/A 41 91 N/A N/A N/A 0 (exempt) White diffused ring light dark field; frontlight CCS no 0.160
CCS HPR2-75BL
 not specified N/A 470 N/A 41 91 N/A N/A N/A 1 Blue diffused ring light dark field; frontlight CCS no 0.160
CCS HPR2-100RD
 not specified N/A 635 N/A 109 116 N/A N/A N/A 0 (exempt) Red diffused ring light frontlight CCS no 0.170
CCS HPR2-100SW
 not specified N/A N/A N/A 109 116 N/A N/A N/A 0 (exempt) White diffused ring light frontlight CCS no 0.170
CCS HPR2-100BL
 not specified N/A 470 N/A 109 116 N/A N/A N/A 1 Blue diffused ring light frontlight CCS no 0.170
CCS HPR2-100FC
 not specified N/A 470; 525; 622 N/A 109 116 N/A N/A N/A 0 (exempt) FC; RGB diffused ring light frontlight CCS no 0.170
CCS HPR2-150BL
 not specified N/A 470 N/A 158 166 N/A N/A N/A 1 Blue diffused ring light dark field; frontlight CCS no 0.250
CCS HPR2-150RD
 not specified N/A 635 N/A 158 166 N/A N/A N/A 0 (exempt) Red diffused ring light dark field; frontlight CCS no 0.250
CCS HPR2-150SW
 not specified N/A N/A N/A 158 166 N/A N/A N/A 0 (exempt) White diffused ring light dark field; frontlight CCS no 0.250
CCS HPR2-150FC
 not specified N/A 470; 525; 622 N/A 158 166 N/A N/A N/A 0 (exempt) FC; RGB diffused ring light dark field; frontlight CCS no 0.250
CCS HPR2-200BL
 not specified N/A 470 N/A 208 216 N/A N/A N/A 1 Blue diffused ring light dark field; frontlight CCS no 0.380
CCS HPR2-200SW
 not specified N/A N/A N/A 208 216 N/A N/A N/A 0 (exempt) White diffused ring light dark field; frontlight CCS no 0.380
CCS HPR2-200FC
 not specified N/A 470; 525; 622 N/A 208 216 N/A N/A N/A 0 (exempt) FC; RGB diffused ring light dark field; frontlight CCS no 0.380
CCS HPR2-250BL
not specified N/A 470 N/A 258 266 N/A N/A N/A 1 Blue diffused ring light dark field; frontlight CCS no 0.510
CCS HPR2-250RD
not specified N/A 635 N/A 258 266 N/A N/A N/A 0 (exempt) Red diffused ring light dark field; frontlight CCS no 0.510
CCS HPR2-250SW
not specified N/A N/A N/A 258 266 N/A N/A N/A 0 (exempt) White diffused ring light dark field; frontlight CCS no 0.510
CCS HPR2-400SW-FT
 not specified N/A N/A N/A 412 424 N/A N/A N/A 0 (exempt) White diffused ring light dark field; frontlight CCS no 1.050
CCS HPR2-400BL-FT
 not specified N/A 470 N/A 412 424 N/A N/A N/A 1 Blue diffused ring light dark field; frontlight CCS no 1.050
CCS HPR2-50RD-IU
 not specified N/A 635 N/A 45 50 N/A variable voltage control N/A 0 (exempt) Red diffused ring light dark field; frontlight CCS no 0.046
CCS HPR2-75RD-IU
 not specified N/A 635 N/A 41 91 N/A variable voltage control N/A 0 (exempt) Red diffused ring light dark field; frontlight CCS no 0.160
CCS HPR2-100RD-IU
 not specified N/A 635 N/A 109 116 N/A variable voltage control N/A 0 (exempt) Red diffused ring light frontlight CCS no 0.170
CCS HPR2-150RD-IU
 not specified N/A 635 N/A 158 166 N/A variable voltage control N/A 0 (exempt) Red diffused ring light dark field; frontlight CCS no 0.250
CCS HPR2-50SW-IU
 not specified N/A N/A N/A 45 50 N/A variable voltage control N/A 0 (exempt) White diffused ring light dark field; frontlight CCS no 0.046
CCS HPR2-75SW-IU
 not specified N/A N/A N/A 41 91 N/A variable voltage control N/A 0 (exempt) White diffused ring light dark field; frontlight CCS no 0.160
CCS HPR2-100SW-IU
 not specified N/A N/A N/A 109 116 N/A variable voltage control N/A 0 (exempt) White diffused ring light frontlight CCS no 0.170
CCS HPR2-150SW-IU
 not specified N/A N/A N/A 158 166 N/A variable voltage control N/A 0 (exempt) White diffused ring light dark field; frontlight CCS no 0.250
CCS HPR2-100IR105
 not specified N/A 1050 N/A 66 116 N/A N/A N/A 0 (exempt) SWIR diffused ring light frontlight CCS no 0.170
CCS HPR2-100IR165
 not specified N/A 1650 N/A 66 116 N/A N/A N/A 0 (exempt) SWIR diffused ring light frontlight CCS no 0.170
CCS HPR2-100IR145
 not specified N/A 1450 N/A 66 116 N/A N/A N/A 0 (exempt) SWIR diffused ring light frontlight CCS no 0.170
CCS HPR2-200GR
 not specified N/A 525 N/A 166 216 N/A N/A N/A 0 (exempt) Green diffused ring light dark field; frontlight CCS no 0.380
CCS HPR2-75SW-FL
 not specified Open wire N/A N/A 41 91 N/A N/A N/A N/A White diffused ring light dark field; frontlight CCS no 0.160

Pourquoi choisir CCS - HPR2 ?

Uniform illumination of high output diffused light

Through the surface-mounted LED and diffusion plate, CCS achieves high output illumination of uniform diffused light. The lights are suitable for a wide range of applications since there is little variation regarding the uniform lighting even when changing the distance between test object and light unit.

Higher output than the conventional product

It can be combined with a strobe control unit for even brighter emission than continuous emission.
