JAI - Go-X

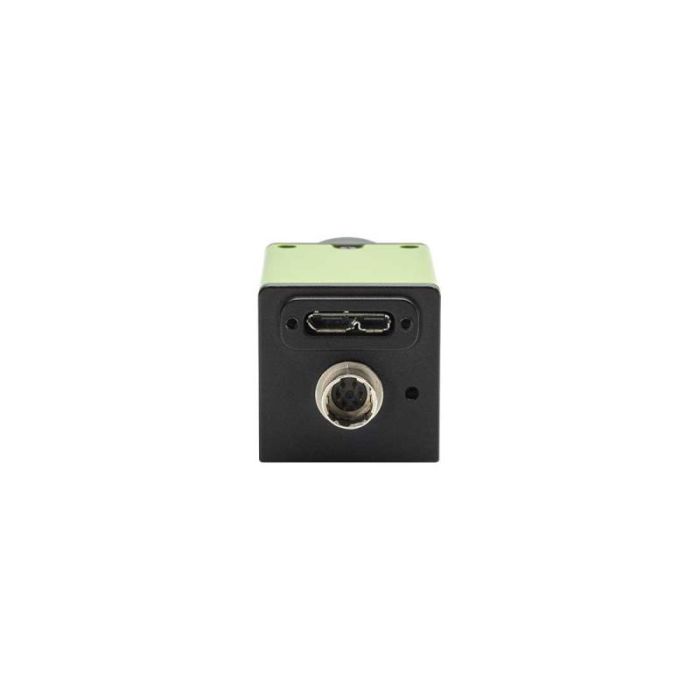

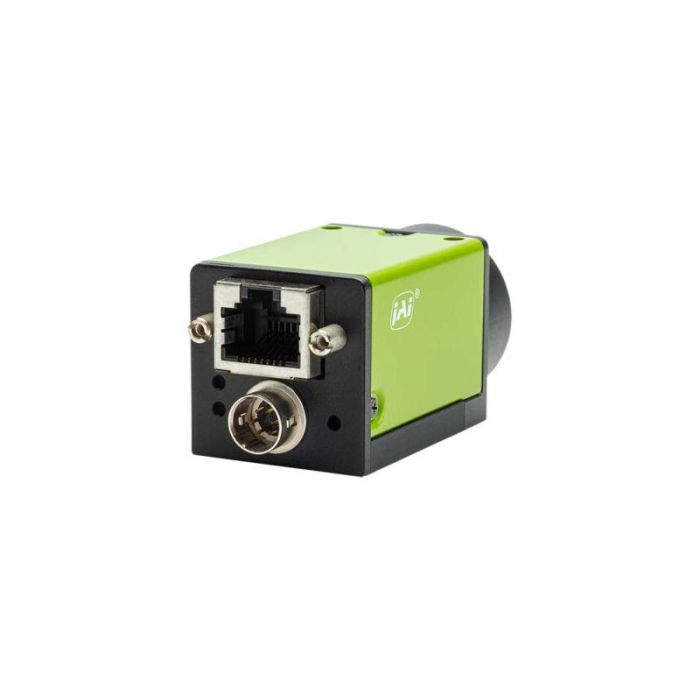

Small and reliable industrial camera with resolutions from 2.3 to 24.5 megapixels and GigE Vision, USB3 Vision or CoaXPress interface.

Key Features

  • Sensor: Sony Pregius and Pregius S CMOS sensors with global shutter or rolling shutter and square pixels
  • Resolution: up to 24.5 MP
  • Digital Output 8/10/12 bit
  • Frame rate: up to 162 fps in 8-bit mode
  • Features: ROI, image flipping and mirroring, 2x2 decimation, blemish compensation and shading correction, two different sequencer modes and automatic level control function
  • Interface: USB3 Vision, GigE Vision, CoaXPress
  • Lens mount: C-mount, CS-mount
  • Dimensions: 29 x 29 x 55 mm
  • Industrial proven with 80G shock and 10G vibration and MTBF > 200k hours
  • 6 years full warranty

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

À
À
À
Nom de produit Wavelength range Resolution (MP) Frame rate (Hz) Lens mount Interface Resolution Horizontal (Px) Resolution Vertical (Px) Sensor model Manufacturer Dimension (depth, mm) Dimension (height, mm) Dimension (width, mm) Housing Pixel size (µm) Scan type Sensor format Sensor size diagonal (mm) Sensor type Shutter type Weight (kg)
JAI GOX-5105M-PGE
 Monochrome; Visible 5.1 23 C-Mount Gigabit Ethernet 2472 2064 IMX547 JAI 55 29 29 small 2.74 area 1/1.8" 8.82 CMOS Global shutter 0.065
JAI GOX-5105C-PGE
 Colour; Visible 5.1 23 C-Mount Gigabit Ethernet 2472 2064 IMX547 JAI 55 29 29 small 2.74 area 1/1.8" 8.82 CMOS Global shutter 0.065
JAI GOX-3201M-PGE
 Monochrome; Visible 3.2 36.5 C-Mount Gigabit Ethernet 2048 1536 IMX265 JAI 51.5 29 29 small 3.45 area 1/1.8" 8.83 CMOS Global shutter 0.065
JAI GOX-2402M-PGE
 Monochrome; Visible 2.3 49.9 C-Mount Gigabit Ethernet 1920 1200 IMX392 JAI 51.5 29 29 small 3.45 area 1/2.3" 7.81 CMOS Global shutter 0.065
JAI GOX-2402C-PGE
 Colour; Visible 2.3 49.9 C-Mount Gigabit Ethernet 1920 1200 IMX392 JAI 51.5 29 29 small 3.45 area 1/2.3" 7.81 CMOS Global shutter 0.065
JAI GOX-5103M-PGE
 Monochrome; Visible 5 22.9 C-Mount Gigabit Ethernet 2448 2048 IMX264 JAI 51.5 29 29 small 3.45 area 2/3" 11.01 CMOS Global shutter 0.065
JAI GOX-2402M-USB
 Monochrome; Visible 2.3 162 C-Mount USB 1920 1200 IMX392 JAI 51.5 29 29 closed housing 3.45 area 1/2.3" 7.81 CMOS Global shutter N/A
JAI GOX-3201C-PGE
 Colour; Visible 3.2 36.5 C-Mount Gigabit Ethernet 2048 1536 IMX265 JAI 51.5 29 29 small 3.45 area 1/1.8" 8.83 CMOS Global shutter 0.065
JAI GOX-5103C-PGE
 Colour; Visible 5 22.9 C-Mount Gigabit Ethernet 2448 2048 IMX264 JAI 51.5 29 29 small 3.45 area 2/3" 11.01 CMOS Global shutter 0.065
JAI GOX-8901M-PGE
 Monochrome; Visible 8.9 13 C-Mount Gigabit Ethernet 4096 2160 IMX267 JAI 51.5 29 29 small 3.45 area 1" 15.98 CMOS Global shutter N/A
JAI GOX-8901C-PGE
 Colour; Visible 8.9 13 C-Mount Gigabit Ethernet 4096 2160 IMX267 JAI 51.5 29 29 small 3.45 area 1" 15.98 CMOS Global shutter N/A
JAI GOX-12401M-PGE
 Monochrome; Visible 12.3 9.3 C-Mount Gigabit Ethernet 4096 3000 IMX304 JAI 51.5 29 29 small 3.45 area 1.1" 17.58 CMOS Global shutter 0.065
JAI GOX-12401C-PGE
 Colour; Visible 12.3 9.3 C-Mount Gigabit Ethernet 4096 3000 IMX304 JAI 51.5 29 29 small 3.45 area 1.1" 17.58 CMOS Global shutter 0.065
JAI GOX-12401M-USB
 Monochrome; Visible 12.4 23.4 C-Mount USB 4096 3000 IMX304 JAI 29 29 51 closed housing 3.45 area 1.1" 17.58 CMOS Global shutter 0.620
JAI GOX-2402C-USB
 Colour; Visible 2.3 162 C-Mount USB 1920 1200 IMX392 JAI 51.5 29 29 closed housing 3.45 area 1/2.3" 7.81 CMOS Global shutter N/A
JAI GOX-12401C-USB
 Colour; Visible 12.4 23.4 C-Mount USB 4096 3000 IMX304 JAI 51.5 29 29 small 3.45 area 1.1" 17.58 CMOS Global shutter 0.065
JAI GOX-8901C-USB
 Colour; Visible 8.9 32 C-Mount USB 4096 2160 IMX267 JAI 51.5 29 29 closed housing 3.45 area 1" 15.98 CMOS Global shutter N/A
JAI GOX-8901M-USB
 Monochrome; Visible 8.9 32 C-Mount USB 4096 2160 IMX267 JAI 51.5 29 29 closed housing 3.45 area 1" 15.98 CMOS Global shutter N/A
JAI GOX-5103M-USB
 Monochrome; Visible 5 35.7 C-Mount USB 2448 2048 IMX264 JAI 51.5 29 29 closed housing 3.45 area 2/3" 11.01 CMOS Global shutter N/A
JAI GOX-5103C-USB
 Colour; Visible 5 35.7 C-Mount USB 2448 2048 IMX264 JAI 51.5 29 29 closed housing 3.45 area 2/3" 11.01 CMOS Global shutter N/A
JAI GOX-3201M-USB
 Monochrome; Visible 3.2 55 C-Mount USB 2048 1536 IMX265 JAI 51.5 29 29 closed housing 3.45 area 1/1.8" 8.83 CMOS Global shutter 0.060
JAI GOX-3201C-USB
 Colour; Visible 3.2 55 C-Mount USB 2048 1536 IMX265 JAI 51.5 29 29 closed housing 3.45 area 1/1.8" 8.83 CMOS Global shutter 0.060
JAI GOX-5102C-USB
 Colour; Visible 5 74 C-Mount USB 2448 2048 IMX250 JAI 51.5 29 29 closed housing 3.45 area 2/3" 11.01 CMOS Global shutter N/A
JAI GOX-5102M-USB
 Monochrome; Visible 5 74 C-Mount USB 2448 2048 IMX250 JAI 51.5 29 29 closed housing 3.45 area 2/3" 11.01 CMOS Global shutter N/A
JAI GOX-3200C-USB
 Colour; Visible 3.2 119 C-Mount USB 2048 1536 IMX252 JAI 51.5 29 29 closed housing 3.45 area 1/1.8" 8.83 CMOS Global shutter 0.065
JAI GOX-3200M-USB
 Monochrome; Visible 3.2 119 C-Mount USB 2048 1536 IMX252 JAI 51.5 29 29 closed housing 3.45 area 1/1.8" 8.83 CMOS Global shutter 0.065
JAI GOX-6409M-PGE
 Monochrome; Visible 6.3 18 C-Mount Gigabit Ethernet 3088 2064 IMX178 JAI 51.5 29 29 small 2.4 area 1/1.8" 8.86 CMOS Rolling shutter 0.065
JAI GOX-6409C-PGE
 Colour; Visible 6.3 18 C-Mount Gigabit Ethernet 3088 2064 IMX178 JAI 51.5 29 29 small 2.4 area 1/1.8" 8.86 CMOS Rolling shutter 0.065
JAI GOX-12409M-PGE
 Monochrome; Visible 12.2 9 C-Mount Gigabit Ethernet 4016 3036 IMX226 JAI 29 29 52 small 1.85 area 1/1.7" 9.32 CMOS Rolling shutter 0.065
JAI GOX-12409C-PGE
 Colour; Visible 12.2 9 C-Mount Gigabit Ethernet 4016 3036 IMX226 JAI 29 29 52 small 1.85 area 1/1.7" 9.32 CMOS Rolling shutter 0.065
JAI GOX-20409M-PGE
 Monochrome; Visible 20 5 C-Mount Gigabit Ethernet 5472 3648 IMX183 JAI 29 29 52 small 2.4 area 1" 15.78 CMOS Rolling shutter 0.065
JAI GOX-20409C-PGE
 Colour; Visible 20 5 C-Mount Gigabit Ethernet 5472 3648 IMX183 JAI 29 29 52 small 2.4 area 1" 15.78 CMOS Rolling shutter 0.065
JAI GOX-5105C-CXP
 Colour; Visible 5.1 112 C-Mount CoaXPress 2472 2064 IMX547 JAI 55 29 29 small 2.74 area 1/1.8" 8.82 CMOS Global shutter 0.060
JAI GOX-5105M-CXP
 Monochrome; Visible 5.1 112 C-Mount CoaXPress 2472 2064 IMX547 JAI 55 29 29 small 2.74 area 1/1.8" 8.82 CMOS Global shutter 0.060
JAI GOX-8105M-PGE
 Monochrome; Visible 8.1 15 C-Mount Gigabit Ethernet 2856 2848 IMX546 JAI 55 29 29 small 2.74 area 2/3" 11.05 CMOS Global shutter N/A
JAI GOX-8105M-5GE
 Monochrome; Visible 8.1 66 C-Mount Gigabit Ethernet 2856 2848 IMX546 JAI 68 29 29 small 2.74 area N/A 11.05 CMOS Global shutter 0.095
JAI GOX-8105M-CXP
 Monochrome; Visible 8.1 71.1 C-Mount CoaXPress 2856 2848 IMX546 JAI 55 29 29 small 2.74 area 2/3" 11.05 CMOS Global shutter 0.060
JAI GOX-20405M-5GE
 Monochrome; Visible 20.3 27 C-Mount Gigabit Ethernet 4512 4512 IMX541 JAI 68 29 29 small 2.74 area 1.1" 17.48 CMOS Global shutter 0.095
JAI GOX-24505M-5GE
 Monochrome; Visible 24.5 22 C-Mount Gigabit Ethernet 5328 4608 IMX540 JAI 68 29 29 small 2.74 area 1.2" 19.27 CMOS Global shutter 0.095
JAI GOX-12405C-CXP
 Colour; Visible 12.4 47 C-Mount CoaXPress 4128 3008 IMX545 JAI 55 29 29 small 2.74 area N/A 14 CMOS Global shutter 0.060
JAI GOX-16205C-CXP
 Colour; Visible 16.2 36 C-Mount CoaXPress 5328 3040 IMX542 JAI 55 29 29 small 2.74 area N/A 16.81 CMOS Global shutter 0.060
JAI GOX-20405C-CXP
 Colour; Visible 20.3 29 C-Mount CoaXPress 4512 4512 IMX541 JAI 55 29 29 small 2.74 area N/A 17.48 CMOS Global shutter 0.060
JAI GOX-24505C-CXP
 Colour; Visible 24.5 24 C-Mount CoaXPress 5328 4608 IMX540 JAI 55 29 29 small 2.74 area 1.2" 19.3 CMOS Global shutter 0.060
JAI GOX-8105C-CXP
 Colour; Visible 8.1 71.1 C-Mount CoaXPress 2856 2848 IMX546 JAI 55 29 29 small 2.74 area 2/3" 11.05 CMOS Global shutter 0.060
JAI GOX-12405C-PGE
 Colour; Visible 12.4 9 C-Mount Gigabit Ethernet 4128 3008 IMX545 JAI 55 29 29 small 2.74 area 1/1.1" 14 CMOS Global shutter N/A
JAI GOX-16205C-PGE
 Colour; Visible 16.2 7 C-Mount Gigabit Ethernet 5328 3040 IMX542 JAI 55 29 29 small 2.74 area 1.1" 16.81 CMOS Global shutter 0.065
JAI GOX-20405C-PGE
 Colour; Visible 20.3 6 C-Mount Gigabit Ethernet 4512 4512 IMX541 JAI 55 29 29 small 2.74 area 1.1" 17.48 CMOS Global shutter 0.065
JAI GOX-24505C-PGE
 Colour; Visible 24.5 5 C-Mount Gigabit Ethernet 5328 4608 IMX540 JAI 55 29 29 small 2.74 area 1.2" 19.3 CMOS Global shutter 0.065
JAI GOX-8105C-PGE
 Colour; Visible 8.1 15 C-Mount Gigabit Ethernet 2856 2848 IMX546 JAI 55 29 29 small 2.74 area 2/3" 11.05 CMOS Global shutter N/A
JAI GOX-12405M-CXP
 Monochrome; Visible 12.4 47 C-Mount CoaXPress 4128 3008 IMX545 JAI 55 29 29 small 2.74 area N/A 14 CMOS Global shutter 0.060
JAI GOX-12405M-PGE
 Monochrome; Visible 12.4 9 C-Mount Gigabit Ethernet 4128 3008 IMX545 JAI 55 29 29 small 2.74 area 1/1.1" 14 CMOS Global shutter N/A
JAI GOX-16205M-PGE
 Monochrome; Visible 16.2 7 C-Mount Gigabit Ethernet 5328 3040 IMX542 JAI 55 29 29 small 2.74 area 1.1" 16.81 CMOS Global shutter 0.065
JAI GOX-20405M-PGE
 Monochrome; Visible 20.3 6 C-Mount Gigabit Ethernet 4512 4512 IMX541 JAI 55 29 29 small 2.74 area 1.1" 17.48 CMOS Global shutter 0.065
JAI GOX-24505M-PGE
 Monochrome; Visible 24.5 5 C-Mount Gigabit Ethernet 5328 4608 IMX540 JAI 55 29 29 small 2.74 area 1.2" 19.3 CMOS Global shutter 0.065
JAI GOX-5105C-5GE
 Colour; Visible 5.1 103 C-Mount Gigabit Ethernet 2472 2064 IMX547 JAI 68 29 29 small 2.74 area 1/1.8" 8.82 CMOS Global shutter 0.095
JAI GOX-16205M-CXP
 Monochrome; Visible 16.2 36 C-Mount CoaXPress 5328 3040 IMX542 JAI 55 29 29 small 2.74 area N/A 16.81 CMOS Global shutter 0.060
JAI GOX-20405M-CXP
 Monochrome; Visible 20.3 29 C-Mount CoaXPress 4512 4512 IMX541 JAI 55 29 29 small 2.74 area N/A 17.48 CMOS Global shutter 0.060
JAI GOX-24505M-CXP
 Monochrome; Visible 24.5 24 C-Mount CoaXPress 5328 4608 IMX540 JAI 55 29 29 small 2.74 area 1.2" 19.3 CMOS Global shutter 0.060
JAI GOX-5105M-5GE
 Monochrome; Visible 5.1 103 C-Mount Gigabit Ethernet 2472 2064 IMX547 JAI 68 29 29 small 2.74 area 1/1.8" 8.82 CMOS Global shutter 0.095
JAI GOX-8105C-5GE
 Colour; Visible 8.1 66 C-Mount Gigabit Ethernet 2856 2848 IMX546 JAI 68 29 29 small 2.74 area N/A 11.05 CMOS Global shutter 0.095
JAI GOX-12405C-5GE
 Colour; Visible 12.4 43 C-Mount Gigabit Ethernet 4128 3008 IMX545 JAI 68 29 29 small 2.74 area 1/1.1" 14 CMOS Global shutter 0.095
JAI GOX-12405M-5GE
 Monochrome; Visible 12.4 43 C-Mount Gigabit Ethernet 4128 3008 IMX545 JAI 68 29 29 small 2.74 area 1/1.1" 14 CMOS Global shutter 0.095
JAI GOX-16205M-5GE
 Monochrome; Visible 16.2 33 C-Mount Gigabit Ethernet 5328 3040 IMX542 JAI 68 29 29 small 2.74 area 1.1" 16.81 CMOS Global shutter 0.095
JAI GOX-16205C-5GE
 Colour; Visible 16.2 33 C-Mount Gigabit Ethernet 5328 3040 IMX542 JAI 68 29 29 small 2.74 area 1.1" 16.81 CMOS Global shutter 0.095
JAI GOX-20405C-5GE
 Colour; Visible 20.3 27 C-Mount Gigabit Ethernet 4512 4512 IMX541 JAI 68 29 29 small 2.74 area 1.1" 17.48 CMOS Global shutter 0.095
JAI GOX-24505C-5GE
 Colour; Visible 24.5 22 C-Mount Gigabit Ethernet 5328 4608 IMX540 JAI 68 29 29 small 2.74 area 1.2" 19.27 CMOS Global shutter 0.095
JAI GOX-5103M-PGE-CS
 Monochrome; Visible 5 22.9 CS-Mount Gigabit Ethernet 2448 2048 IMX264 JAI 51.5 29 29 small 3.45 area 2/3" 8.89 CMOS Global shutter 0.065
JAI GOX-5103C-PGE-CS
 Colour; Visible 5 22.9 CS-Mount Gigabit Ethernet 2448 2048 IMX264 JAI 51.5 29 29 small 3.45 area 2/3" 8.89 CMOS Global shutter 0.065
JAI GOX-3201M-PGE-CS
 Monochrome; Visible 3.2 36.5 CS-Mount Gigabit Ethernet 2048 1536 IMX265 JAI 51.5 29 29 small 3.45 area 1/1.8" 8.89 CMOS Global shutter 0.065
JAI GOX-3201C-PGE-CS
 Colour; Visible 3.2 36.5 CS-Mount Gigabit Ethernet 2048 1536 IMX265 JAI 51.5 29 29 small 3.45 area 1/1.8" 8.89 CMOS Global shutter 0.065
JAI GOX-2402M-PGE-CS
 Monochrome; Visible 2.3 49.9 CS-Mount Gigabit Ethernet 1920 1200 IMX392 JAI 51.5 29 29 small 3.45 area 1/2.3" 7.81 CMOS Global shutter 0.065
JAI GOX-2402C-PGE-CS
 Colour; Visible 2.3 49.9 CS-Mount Gigabit Ethernet 1920 1200 IMX392 JAI 51.5 29 29 small 3.45 area 1/2.3" 7.81 CMOS Global shutter 0.065

Pourquoi choisir JAI - Go-X ?

Very small and lightweight camera design

No matter your application, Go-X cameras are flexible enough to handle a wide variety of tasks, with features to help you detect what’s critical. With a size of only 29 x 29 x 51.5 mm (excluding lens mount) and a weight of 62 grams, the Go-X cameras are extremely versatile. The minimal weight not only makes them ideal for robot applications, but also for any application where weight can be a concern.

Extensive range of possible applications

JAI Go-X offers a selection of single and multi ROI, 2x2 decimation, 8/10/12-bit output, blemish compensation and shading correction – plus, advanced features like two different sequencer modes and JAI's automatic level control function (ALC). Combined with its excellent image quality, the camera provides precise and reliable inspection results thanks to colour and monochrome CMOS sensors with up to 24,5 megapixel resolution. Its high frame rate and global shutter makes it the ideal choice for fast-moving applications.

Choice between several standard industrial vision interfaces

Go-X series cameras are available with a choice of advanced digital interfaces, so you can select the one that best fits your needs. Thus it is possible to easily change between interfaces if required. Available interfaces are GigE Vision, USB3 Vision and CoaXPress.

Reliable even in tough industrial environments

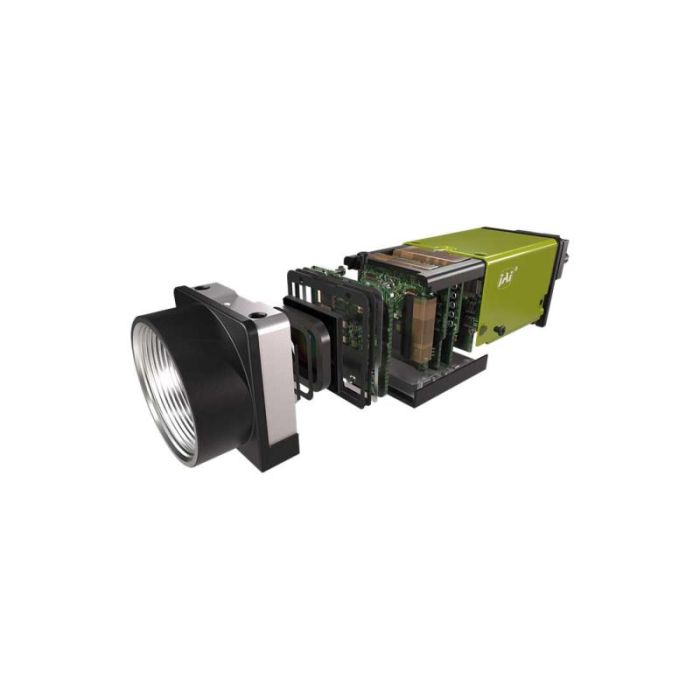

Go-X series cameras are built using JAI’s proven manufacturing process in a cleanroom assembly, with internal seals around the sensor compartment and a rigorous test before shipping ensure a dust-free optical path. Specification with 80G shock and 10G vibration and MTBF > 200k hours assures their ability to withstand the rigors of industrial environments. Cameras come with full 6-year warranty.
