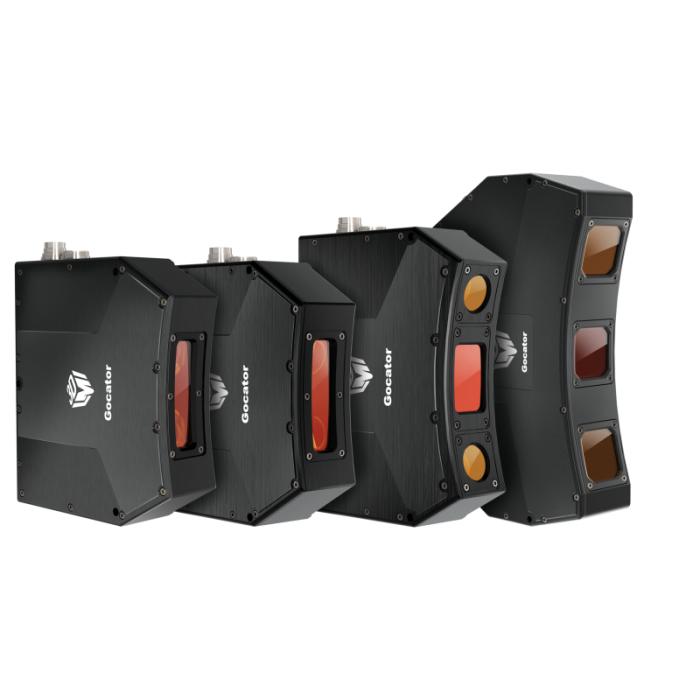

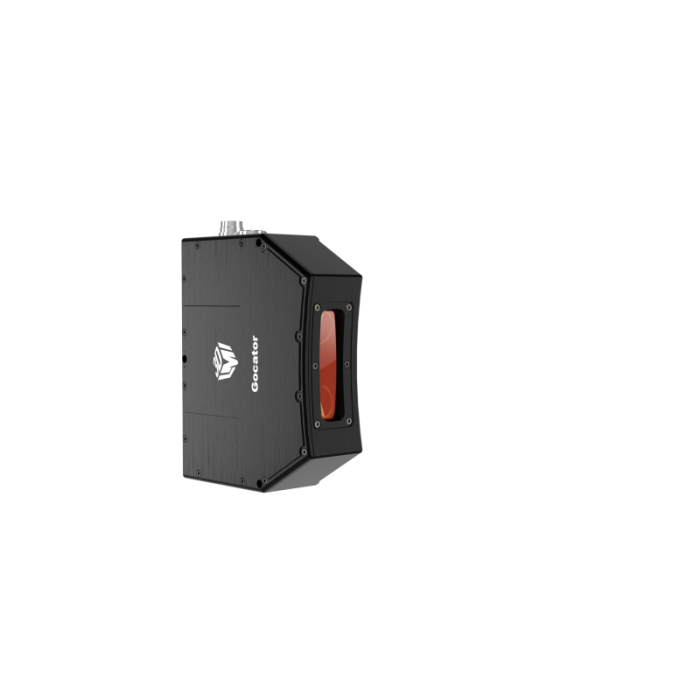

LMI - Gocator 3000

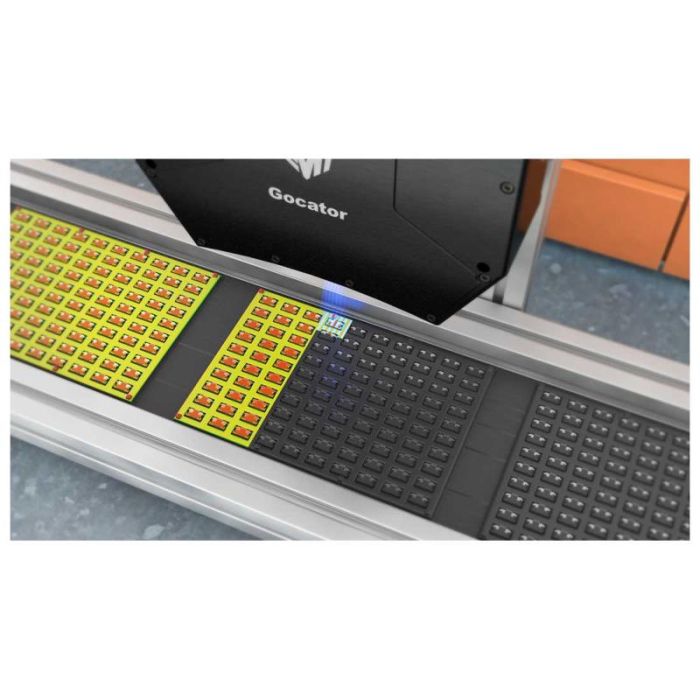

Complete inline 3D inspection for indexed or stationary parts.
Key Features
- Scan rate: up to 5 Hz
- Interface: Gigabit Ethernet
- Built-in web server supports any computer and operating system
- Built-in 3D measurement tools: 3D feature tools: openings (holes, slots), cylinders, studs (threaded and non-threaded), plane / 3D volumetric tools: volumes, areas, bounding boxes, positions (min, max, centroid), ellipses, orientations
- Inputs: differential encoder, light / laser safety enable, trigger
- Outputs: 2 x digital output, RS485 serial (115 kbaud), 1 x analogue output (4 - 20 mA)
- Input voltage (power): +24 to +48 VDC (25 watts), ripple +/- 10 %
- Housing: gasketed aluminium enclosure with IP67 rating
- Weight: > 1.5 kg
- Operating temperature: 0 to 50° C
- Vibration resistance: 10 to 55 Hz, 1.5 mm double amplitude in X, Y and Z directions, 2 hours per direction
- Shock resistance: 15 g, half sine wave, 11 ms, positive and negative for X, Y and Z directions
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nom de produit | Interface | Lens mount | Manufacturer | Scan type |
|---|---|---|---|---|
| Gigabit Ethernet | N/A | LMI Technologies | digital fringe projection | |
| Gigabit Ethernet | N/A | LMI Technologies | digital fringe projection | |
| Gigabit Ethernet | N/A | LMI Technologies | laser triangulation |
