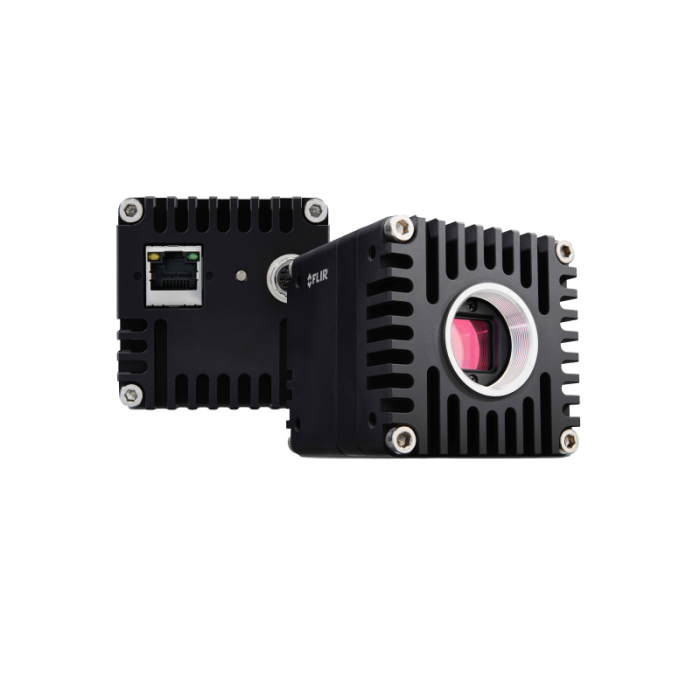

Teledyne FLIR - Oryx 10 GigE
For high-resolution, fast image processing applications Ideal for data-intensive applications, the Oryx10GigE offers high-speed data transfer of up to 10 Gbps. It supports the latest sensors and captures 4K images at over 60 FPS. With features such as IEEE1588 synchronisation and GigE Vision compatibility, Oryx enables long cable runs using cost-effective CAT6A or CAT5e cabling to support system development.
Key Features
- Up to 31 Megapixel
- Max. Frame rate: 216
- Standard lens mount: C-mount
- Sensor type: CMOS
- Sensor model: Sony Highspeed Sensors
- Data interface: Gigabit Ethernet 10 Gbit/s
- Spectrum color / monochrome
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Nom de produit | Bandwidth (MByte/s) | Bit depth | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Frame rate (Hz) | Resolution Horizontal (Px) | Housing | Interface | Interface configuration | Lens mount | Manufacturer | Pixel size (µm) | Resolution (MP) | Scan type | Sensor configuration | Sensor model | Sensor size diagonal (mm) | Shutter type | Wavelength range | Resolution Vertical (Px) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N/A | 10; 12; 8 | 60 | 60 | 115 | 112 | 3208 | closed housing | Gigabit Ethernet | 1 GigE; 10 GigE; 5 GigE | C-Mount | Teledyne FLIR | 4.5 | 7.1 | area | N/A | IMX420 | 17.5 | Global shutter | Monochrome; Visible | 2200 | 0.510 | |
| N/A | 10; 12; 8 | 60 | 60 | 115 | 112 | 3208 | closed housing | Gigabit Ethernet | 1 GigE; 10 GigE; 5 GigE | C-Mount | Teledyne FLIR | 4.5 | 7.1 | area | N/A | IMX420 | 17.5 | Global shutter | Colour; Visible | 2200 | 0.510 | |
| N/A | 12 | 60 | 60 | 115 | 44 | 5320 | closed housing | Gigabit Ethernet | 1 GigE; 10 GigE; 5 GigE | Nikon F-Mount | Teledyne FLIR | 2.74 | 24.5 | area | N/A | IMX530 | 19.27 | Global shutter | Monochrome; Visible | 4600 | 0.510 | |
| N/A | 12 | 60 | 60 | 115 | 44 | 5320 | closed housing | Gigabit Ethernet | 1 GigE; 10 GigE; 5 GigE | Nikon F-Mount | Teledyne FLIR | 2.74 | 24.5 | area | N/A | IMX530 | 19.27 | Global shutter | Colour; Visible | 4600 | 0.510 | |
| N/A | 12 | 60 | 60 | 115 | 26 | 6464 | closed housing | Gigabit Ethernet | 1 GigE; 10 GigE; 5 GigE | Nikon F-Mount | Teledyne FLIR | 3.45 | 31 | area | N/A | IMX342 | 27.88 | Global shutter | Monochrome; Visible | 4852 | 0.510 | |
| N/A | 12 | 60 | 60 | 115 | 26 | 6464 | closed housing | Gigabit Ethernet | 1 GigE; 10 GigE; 5 GigE | Nikon F-Mount | Teledyne FLIR | 3.45 | 31 | area | N/A | IMX342 | 27.88 | Global shutter | Colour; Visible | 4852 | 0.510 | |
| N/A | 10; 12; 8 | 60 | 60 | 115 | 93 | 4096 | closed housing | Gigabit Ethernet | 1 GigE; 10 GigE; 5 GigE | C-Mount | Teledyne FLIR | 3.45 | 8.9 | area | N/A | IMX255 | 15.98 | Global shutter | Monochrome; Visible | 2160 | 0.510 | |
| N/A | 10; 12; 8 | 60 | 60 | 115 | 93 | 4096 | closed housing | Gigabit Ethernet | 1 GigE; 10 GigE; 5 GigE | C-Mount | Teledyne FLIR | 3.45 | 8.9 | area | N/A | IMX255 | 15.98 | Global shutter | Colour; Visible | 2160 | 0.510 | |
| N/A | 10; 12; 8 | 60 | 60 | 115 | 68 | 4096 | closed housing | Gigabit Ethernet | 1 GigE; 10 GigE; 5 GigE | C-Mount | Teledyne FLIR | 3.45 | 12.3 | area | N/A | IMX253 | 17.3 | Global shutter | Monochrome; Visible | 3000 | 0.510 | |
| N/A | 10; 12; 8 | 60 | 60 | 115 | 68 | 4096 | closed housing | Gigabit Ethernet | 1 GigE; 10 GigE; 5 GigE | C-Mount | Teledyne FLIR | 3.45 | 12.3 | area | N/A | IMX253 | 17.3 | Global shutter | Colour; Visible | 3000 | 0.510 | |
| N/A | 10; 12; 8 | 60 | 60 | 115 | 216 | 2048 | closed housing | Gigabit Ethernet | 1 GigE; 10 GigE; 5 GigE | C-Mount | Teledyne FLIR | 3.45 | 3.2 | area | N/A | IMX252 | 8.83 | Global shutter | Monochrome; Visible | 1536 | 0.510 | |
| N/A | 10; 12; 8 | 60 | 60 | 115 | 216 | 2048 | closed housing | Gigabit Ethernet | 1 GigE; 10 GigE; 5 GigE | C-Mount | Teledyne FLIR | 3.45 | 3.2 | area | N/A | IMX252 | 8.83 | Global shutter | Colour; Visible | 1536 | 0.510 | |
| N/A | 10; 12; 8 | 60 | 60 | 115 | 162 | 2448 | closed housing | Gigabit Ethernet | 1 GigE; 10 GigE; 5 GigE | C-Mount | Teledyne FLIR | 3.45 | 5 | area | N/A | IMX250 | 11.01 | Global shutter | Monochrome; Visible | 2048 | 0.510 | |
| N/A | 10; 12; 8 | 60 | 60 | 115 | 162 | 2448 | closed housing | Gigabit Ethernet | 1 GigE; 10 GigE; 5 GigE | C-Mount | Teledyne FLIR | 3.45 | 5 | area | N/A | IMX250 | 11.1 | Global shutter | Colour; Visible | 2048 | 0.510 |
