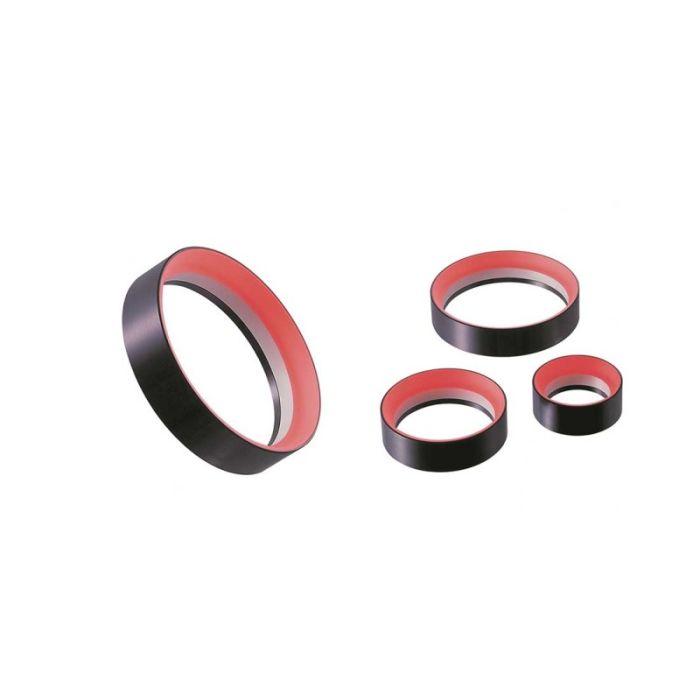

CCS - FPR

Diffuse ring shaped LED dark field illumination

Key Features

  • Colour: white, green, red and blue
  • Power supply: 24V
  • Connector: standard connector, M12 and flying leads
  • Dimensions: 100 to 180 mm (outer diameter)

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

Até
Até
Até
Nome do produto Lighting technique Lighting geometry Light distribution Light colour Emitting surface width (mm) Emitting surface outer diameter (mm) Emitting surface inner diameter (mm) Smart Beam angle Connectors Dominant wavelength (nm) Emitting surface height (mm) Intensity control method IP rating LED risk group Manufacturer Weight (kg)
CCS FPR-100SW2
 dark field ring light diffused White N/A 92 73 no low N/A N/A N/A N/A N/A N/A CCS 0.220
CCS FPR-136SW2
 dark field ring light diffused White N/A 126 109 no low N/A N/A N/A N/A N/A N/A CCS 0.280
CCS FPR-180SW2
 dark field ring light diffused White N/A 170 153 no low N/A N/A N/A N/A N/A N/A CCS 0.380
CCS FPR-136RD2
 dark field ring light diffused Red N/A 126 109 no low N/A 630 N/A N/A N/A N/A CCS 0.300
CCS FPR-100RD2
 dark field ring light diffused Red N/A 92 73 no low N/A 630 N/A N/A N/A N/A CCS 0.220
CCS FPR-100BL2
 dark field ring light diffused Blue N/A 92 73 no low N/A 470 N/A N/A N/A N/A CCS 0.220
CCS FPR-100GR2
 dark field ring light diffused Green N/A 92 73 no low N/A 525 N/A N/A N/A N/A CCS 0.220
CCS FPR-136BL2
 dark field ring light diffused Blue N/A 126 109 no low N/A 470 N/A N/A N/A N/A CCS 0.300
CCS FPR-136GR2
 dark field ring light diffused Green N/A 126 109 no low N/A 525 N/A N/A N/A N/A CCS 0.300
CCS FPR-180BL2
 dark field ring light diffused Blue N/A 170 153 no low N/A 470 N/A N/A N/A N/A CCS 0.400
CCS FPR-180GR2
 dark field ring light diffused Green N/A 170 153 no low N/A 525 N/A N/A N/A N/A CCS 0.400
CCS FPR-180RD2
 dark field ring light diffused Red N/A 170 153 no low N/A 630 N/A N/A N/A N/A CCS 0.400
CCS FPR-136SW2-M12
 dark field ring light diffused White N/A 126 109 no low M12 4-pin A-coded N/A N/A N/A N/A N/A CCS 0.280

Por que escolher CCS - FPR?

Diffuse illumination

Light from the vertically-arranged LEDs is transmitted through the light-guiding diffusion plate and uniform diffused light is illuminated centrally on the workpiece from a low angle.

Different operating modes

A strobe controller or an intensity regulator can be connected to these units so that the same light can be used in different operational modes.
