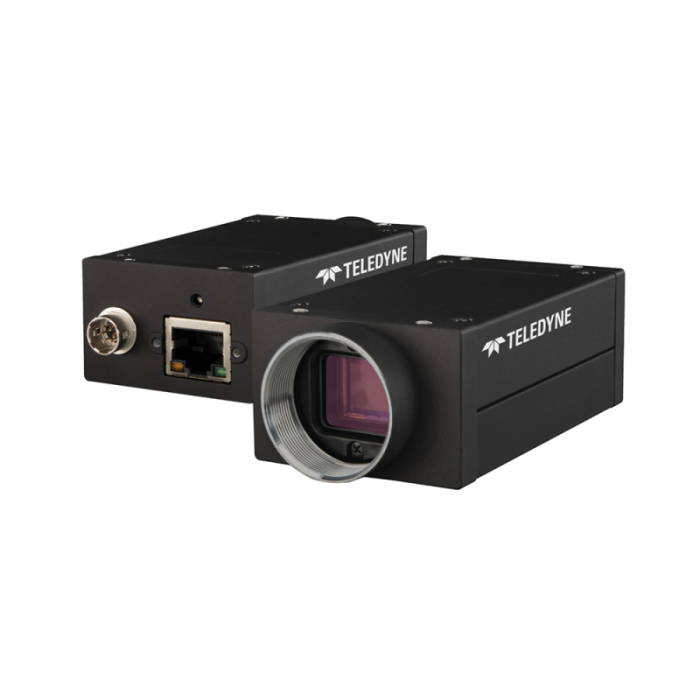

Teledyne FLIR - Forge 5 GigE
The Cool Performer: The Teledyne FLIR Forge 5GigE camera operates up to 20°C cooler than comparable models in the market, extending component life up to 4x longer while eliminating auxiliary cooling needs. With all-metal construction, burst capabilities up to 10Gb/s, and flexible connectivity, the Forge delivers exceptional performance in demanding environments where other cameras fail. Ideal for OEMs seeking reliability, simplified integration, and reduced system costs.
Key Features
- Superior thermal management: Up to 20°C cooler operation
- Extended temperature range: -20°C to 65°C (housing)
- All-metal body: No auxiliary cooling required
- Resolution: Up to 24.5 Megapixel (Sony Pregius Gen 4)
- Burst mode: Up to 10Gb/s with 500MB image buffer
- Max frame rate: 122 FPS (163 FPS burst)
- Standard lens mount: C-mount
- Sensor type: CMOS (Sony Highspeed Sensors)
- Data interface: 1, 2.5, and 5 Gbit/s Ethernet
- Spectrum: colour / monochrome
- Power over Ethernet (PoE) support
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Product Name | Wavelength range | Resolution (MP) | Frame rate (Hz) | Lens mount | Interface | Sensor model | Manufacturer | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Resolution Horizontal (Px) | Housing | Pixel size (µm) | Scan type | Sensor format | Sensor size diagonal (mm) | Sensor type | Shutter type | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Monochrome; Visible | 5 | 120 | C-Mount | Gigabit Ethernet | IMX547 | Teledyne FLIR | 29 | 29 | 38 | 2448 | closed housing | 2.74 | area | 1/1.8" | 8.75 | CMOS | Global shutter | 0.135 | |
| Colour; Visible | 5 | 120 | C-Mount | Gigabit Ethernet | IMX547 | Teledyne FLIR | 29 | 29 | 38 | 2448 | closed housing | 2.74 | area | 1/1.8" | 8.75 | CMOS | Global shutter | 0.135 | |
| Colour; Visible | 5 | 122 | C-Mount | Gigabit Ethernet | IMX537 | Teledyne FLIR | 74 | 44 | 29 | 2448 | closed housing | 2.74 | area | 1/1.8" | 8.75 | CMOS | Global shutter | 0.132 | |
| Monochrome; Visible | 5 | 122 | C-Mount | Gigabit Ethernet | IMX537 | Teledyne FLIR | 74 | 44 | 29 | 2448 | closed housing | 2.74 | area | 1/1.8" | 8.75 | CMOS | Global shutter | 0.132 | |
| Colour; Visible | 24.5 | 25 | C-Mount | Gigabit Ethernet | IMX540 | Teledyne FLIR | 74 | 44 | 29 | 5320 | closed housing | 2.74 | area | 1.2" | 19.27 | CMOS | Global shutter | 0.132 | |
| Monochrome; Visible | 24.5 | 25 | C-Mount | Gigabit Ethernet | IMX540 | Teledyne FLIR | 74 | 44 | 29 | 5320 | closed housing | 2.74 | area | 1.2" | 19.27 | CMOS | Global shutter | 0.132 | |
| Colour; Visible | 12.4 | 50 | C-Mount | Gigabit Ethernet | IMX545 | Teledyne FLIR | 74 | 44 | 29 | 4096 | closed housing | 2.74 | area | 1/1.1" | 13.91 | CMOS | Global shutter | 0.132 | |
| Monochrome; Visible | 12.4 | 50 | C-Mount | Gigabit Ethernet | IMX545 | Teledyne FLIR | 74 | 44 | 29 | 4096 | closed housing | 2.74 | area | 1/1.1" | 13.91 | CMOS | Global shutter | 0.132 | |
| Colour; Visible | 16.1 | 38 | C-Mount | Gigabit Ethernet | IMX542 | Teledyne FLIR | 74 | 44 | 29 | 5320 | closed housing | 2.74 | area | 1.1" | 16.8 | CMOS | Global shutter | 0.132 | |
| Monochrome; Visible | 16.1 | 38 | C-Mount | Gigabit Ethernet | IMX542 | Teledyne FLIR | 74 | 44 | 29 | 5320 | closed housing | 2.74 | area | 1.1" | 16.8 | CMOS | Global shutter | 0.132 |
