CCS - HPD2

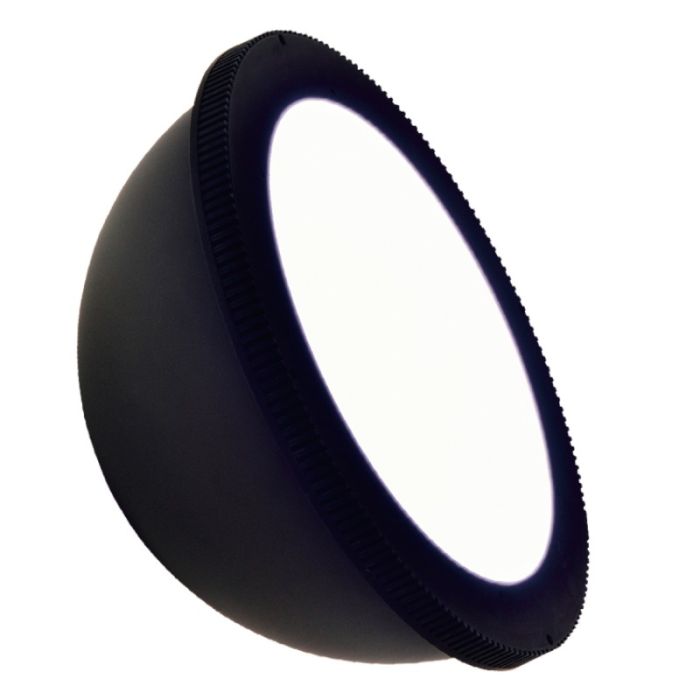

High-power dome illumination with bright and extremely uniform light

Key Features

  • Colour: white, red, blue, infrared and FC (full colour red/green/blue)
  • Power supply: 24 V
  • Connector : standard connector, M12 and flying leads

  • Dimensions: 91 mm up to 424 mm

  • This lighting solution is available as a custom-made design through our collaboration between STEMMER IMAGING and CCS Inc., combining advanced illumination technology with expert machine vision engineering.

  • Custom-engineered in every aspect—wavelengths, beam patterns, form factors, and interfaces—while maintaining CCS's quality standards

  • Efficient design-to-manufacture process with short lead times, delivering high-performance solutions without compromise

  • Optional IP67 compliant custom light versions

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

Até
Até
Nome do produto Lighting technique Lighting geometry Light distribution Light colour Emitting surface width (mm) Emitting surface outer diameter (mm) Emitting surface inner diameter (mm) Smart Beam angle Connectors Dominant wavelength (nm) Emitting surface height (mm) Intensity control method IP rating LED risk group Manufacturer Weight (kg)
CCS HPD2-150FC
 frontlight dome illumination diffused FC; RGB N/A 158 116 no not specified N/A 470; 525; 622 N/A N/A N/A N/A CCS 0.285
CCS HPD2-100SW
 frontlight dome illumination diffused White N/A 108 66 no not specified N/A N/A N/A N/A N/A N/A CCS 0.160
CCS HPD2-75RD
 frontlight dome illumination diffused Red N/A 83 40 no not specified N/A 635 N/A N/A N/A N/A CCS 0.140
CCS HPD2-75FC
 frontlight dome illumination diffused FC; RGB N/A 83 40 no not specified N/A 470; 525; 622 N/A N/A N/A N/A CCS 0.140
CCS HPD2-75IR860
 frontlight dome illumination diffused IR N/A 83 42 no not specified N/A 860 N/A N/A N/A N/A CCS 0.140
CCS HPD2-200SW
 frontlight dome illumination diffused White N/A 208 166 no not specified N/A N/A N/A N/A N/A N/A CCS 0.460
CCS HPD2-100BL
frontlight dome illumination diffused Blue N/A 108 66 no not specified N/A 470 N/A N/A N/A N/A CCS 0.160
CCS HPD2-250BL
 frontlight dome illumination diffused Blue N/A 258 210 no not specified N/A 470 N/A N/A N/A N/A CCS 0.650
CCS HPD2-75SW
 frontlight dome illumination diffused White N/A 83 40 no not specified N/A N/A N/A N/A N/A N/A CCS 0.140
CCS HPD2-150SW
frontlight dome illumination diffused White N/A 158 116 no not specified N/A N/A N/A N/A N/A N/A CCS 0.285
CCS HPD2-75BL
 frontlight dome illumination diffused Blue N/A 83 40 no not specified N/A 470 N/A N/A N/A 0 (exempt) CCS 0.140
CCS HPD2-100FC
 frontlight dome illumination diffused FC; RGB N/A 108 66 no not specified N/A 470; 525; 622 N/A N/A N/A N/A CCS 0.160
CCS HPD2-250SW
 frontlight dome illumination diffused White N/A 258 210 no not specified N/A N/A N/A N/A N/A N/A CCS 0.650
CCS HPD2-100RD
 frontlight dome illumination diffused Red N/A 108 66 no not specified N/A 635 N/A N/A N/A N/A CCS 0.160
CCS HPD2-100IR860
 frontlight dome illumination diffused IR N/A 108 66 no not specified N/A 860 N/A N/A N/A N/A CCS 0.160
CCS HPD2-150BL
 frontlight dome illumination diffused Blue N/A 158 116 no not specified N/A 470 N/A N/A N/A N/A CCS 0.285
CCS HPD2-150RD
 frontlight dome illumination diffused Red N/A 158 116 no not specified N/A 635 N/A N/A N/A N/A CCS 0.285
CCS HPD2-150IR860
 frontlight dome illumination diffused IR N/A 158 116 no not specified N/A 860 N/A N/A N/A N/A CCS 0.285
CCS HPD2-200BL
 frontlight dome illumination diffused Blue N/A 208 166 no not specified N/A 470 N/A N/A N/A N/A CCS 0.460
CCS HPD2-200RD
 frontlight dome illumination diffused Red N/A 208 166 no not specified N/A 635 N/A N/A N/A N/A CCS 0.460
CCS HPD2-200IR860
 frontlight dome illumination diffused IR N/A 208 166 no not specified N/A 860 N/A N/A N/A N/A CCS 0.460
CCS HPD2-200FC
 frontlight dome illumination diffused FC; RGB N/A 208 166 no not specified N/A 470; 525; 622 N/A N/A N/A N/A CCS 0.460
CCS HPD2-250RD
 frontlight dome illumination diffused Red N/A 258 210 no not specified N/A 635 N/A N/A N/A N/A CCS 0.650
CCS HPD2-250FC
 frontlight dome illumination diffused FC; RGB N/A 258 210 no not specified N/A 470; 525; 622 N/A N/A N/A N/A CCS 0.650
CCS HPD2-250IR860
 frontlight dome illumination diffused IR N/A 258 210 no not specified N/A 860 N/A N/A N/A N/A CCS 0.650
CCS HPD2-400BL
 frontlight dome illumination diffused Blue N/A 412 360 no not specified N/A 470 N/A N/A N/A N/A CCS 1.300
CCS HPD2-400RD
 frontlight dome illumination diffused Red N/A 412 360 no not specified N/A 635 N/A N/A N/A N/A CCS 1.300
CCS HPD2-400SW
 frontlight dome illumination diffused White N/A 412 360 no not specified N/A N/A N/A N/A N/A 0 (exempt) CCS 1.300
CCS HPD2-400FC
 frontlight dome illumination diffused FC; RGB N/A 412 360 no not specified N/A 470; 525; 622 N/A N/A N/A N/A CCS 1.300
CCS HPD2-400IR860
 frontlight dome illumination diffused IR N/A 412 360 no not specified N/A 860 N/A N/A N/A N/A CCS 1.300
CCS HPD2-75RD-FL
 frontlight dome illumination diffused Red N/A 83 40 no not specified N/A 635 N/A N/A N/A N/A CCS 0.140
CCS HPD2-100RD-M12
 frontlight dome illumination diffused Red N/A 108 66 no not specified M12 5-pin A-coded 635 N/A N/A N/A N/A CCS 0.160
CCS HPD2-250RD-M12
 frontlight dome illumination diffused Red N/A 258 210 no not specified M12 5-pin A-coded 635 N/A N/A N/A N/A CCS 0.650
CCS HPD2-150RD-M12
 frontlight dome illumination diffused Red N/A 158 116 no not specified M12 5-pin A-coded 635 N/A N/A N/A N/A CCS 0.285
CCS HPD2-250SW-M12
 frontlight dome illumination diffused White N/A 258 210 no not specified M12 5-pin A-coded N/A N/A N/A N/A N/A CCS 0.650
CCS HPD2-150SW-M12
 frontlight dome illumination diffused White N/A 158 116 no not specified M12 5-pin A-coded N/A N/A N/A N/A N/A CCS 0.285
CCS HPD2-75RD-IU
 frontlight dome illumination diffused Red N/A 83 40 no not specified N/A 635 N/A variable voltage control N/A N/A CCS 0.140
CCS HPD2-75SW-IU
 frontlight dome illumination diffused White N/A 83 40 no not specified N/A N/A N/A variable voltage control N/A N/A CCS 0.140
CCS HPD2-100RD-IU
 frontlight dome illumination diffused Red N/A 108 66 no not specified N/A 635 N/A variable voltage control N/A N/A CCS 0.160
CCS HPD2-150SW-IU
 frontlight dome illumination diffused White N/A 158 116 no not specified N/A N/A N/A variable voltage control N/A N/A CCS 0.285
CCS HPD2-150RD-IU
 frontlight dome illumination diffused Red N/A 158 116 yes not specified N/A 635 N/A variable voltage control N/A N/A CCS 0.285
CCS HPD2-100SW-IU
 frontlight dome illumination diffused White N/A 108 66 no not specified N/A N/A N/A variable voltage control N/A N/A CCS 0.160
CCS HPD2-100BL-M12
 frontlight dome illumination diffused Blue N/A 108 66 no not specified M12 5-pin A-coded 470 N/A N/A N/A N/A CCS 0.160
CCS HPD2-75SW-M12
 frontlight dome illumination diffused White N/A 83 40 no not specified M12 5-pin A-coded N/A N/A N/A N/A N/A CCS 0.140
CCS HPD2-250FC-M12
 frontlight dome illumination diffused FC; RGB N/A 258 210 no not specified M12 5-pin A-coded 470; 525; 622 N/A N/A N/A N/A CCS 0.650
CCS HPD2-250BL-M12
 frontlight dome illumination diffused Blue N/A 258 210 no not specified M12 5-pin A-coded 470 N/A N/A N/A N/A CCS 0.650
CCS HPD2-200SW-M12
 frontlight dome illumination diffused White N/A 208 166 no not specified M12 5-pin A-coded N/A N/A N/A N/A N/A CCS 0.460

Por que escolher CCS - HPD2?

Various accessory options

Light joint brackets are available to combine the dome lights with a ring light to achieve imaging by light switching and simultaneous illumination. The coaxial light joint bracket can be combined with a CCS LFV3 to eliminate uneven illumination and achieve uniform illumination from all directions. And the expansion brackets enable installation using mounting holes with a larger distance than the mounting holes of the light unit body, or installation on a vertical surface.

Low to high angle illumination

Provides diffused light from the LEDs at a wide range of angles, so there is no time wasted in creating a unique lighting mechanism. Even when the distance from the workpiece to the light unit is changed, there is little variation in the uniform area, making it suitable for a wide range of applications.

Different operating modes

The CCS HPD2 can be connected to a strobe or intensity controller and can be used in a variety of modes. It is available in red (635 nm), white (6,500 K), blue (470 nm), infrared (860 nm) and FC (full colour red/green/blue) with standard connector, M12 or flying lead options.
