Schneider Kreuznach - Bandpass Filters

High quality filters that transmit a defined wavelength range with excellent stability of cut-on wavelengths.

Key Features

  • Average transmission 95 %
  • Steep slopes
  • Wavelength tolerance +/- 1 nm
  • Ultra low reflection
  • Deep blocking / high OD

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

Até
Até
Até
Até
Nome do produto Bandwidth (FWHM) Cut-off wavelength Cut-on wavelength Dimension (height, mm) Dimension (width, mm) Filter thread Filter type Manufacturer Useful Range (nm)
SCHNEIDER FIL BP465-70/30,5-HT
 35 550 nm 430 nm N/A N/A M30.5 x 0.5 bandpass Schneider Kreuznach 400 - 490
SCHNEIDER FIL BP465-70/27-HT
 35 550 nm 430 nm N/A N/A M27 x 0.5 bandpass Schneider Kreuznach 400 - 490
SCHNEIDER FIL BP465-70/40,5-HT
 35 550 nm 430 nm N/A N/A M40.5 x 0.5 bandpass Schneider Kreuznach 400 - 490
SCHNEIDER FIL BP465-70/25,5-HT
 35 550 nm 430 nm N/A N/A M25.5 x 0.5 bandpass Schneider Kreuznach 400 - 490
SCHNEIDER FIL BP865-100/25,5-HT
 50 915 nm 815 nm N/A N/A M25.5 x 0.5 bandpass Schneider Kreuznach 840 - 890
SCHNEIDER FIL BP865-100/27-HT
 50 915 nm 815 nm N/A N/A M27 x 0.5 bandpass Schneider Kreuznach 840 - 890
SCHNEIDER FIL BP465-70/35,5-HT
 35 550 nm 430 nm N/A N/A M35.5 x 0.5 bandpass Schneider Kreuznach 400 - 490
SCHNEIDER FIL BP465-70/37-HT
 35 550 nm 430 nm N/A N/A M37 x 0.75 bandpass Schneider Kreuznach 400 - 490
SCHNEIDER FIL BP465-70/C-MOUNT-HT
 35 550 nm 430 nm N/A N/A C-Mount bandpass Schneider Kreuznach 400 - 490
SCHNEIDER FIL BP660-60/27-HT
 30 690 nm 630 nm N/A N/A M27 x 0.5 bandpass Schneider Kreuznach 640 - 670
SCHNEIDER FIL BP660-60/25,5-HT
 30 690 nm 630 nm N/A N/A M25.5 x 0.5 bandpass Schneider Kreuznach 640 - 670
SCHNEIDER FIL BP660-60/40,5-HT
 30 690 nm 630 nm N/A N/A M40.5 x 0.5 bandpass Schneider Kreuznach 640 - 670
SCHNEIDER FIL BP660-60/30,5-HT
 30 690 nm 630 nm N/A N/A M30.5 x 0.5 bandpass Schneider Kreuznach 640 - 670
SCHNEIDER FIL BP660-60/C-MOUNT-HT
 30 690 nm 630 nm N/A N/A C-Mount bandpass Schneider Kreuznach 640 - 670
SCHNEIDER FIL BP660-60/35,5-HT
 30 690 nm 630 nm N/A N/A M35.5 x 0.5 bandpass Schneider Kreuznach 640 - 670
SCHNEIDER FIL BP660-60/37-HT
 30 690 nm 630 nm N/A N/A M37.5 x 0.75 bandpass Schneider Kreuznach 640 - 670
SCHNEIDER FIL BP540-80/40,5-HT
 80 565 nm 495 nm N/A N/A M40.5 x 0.5 bandpass Schneider Kreuznach 515 - 565
SCHNEIDER FIL BP865-100/40,5-HT
 50 915 nm 815 nm N/A N/A M40.5 x 0.5 bandpass Schneider Kreuznach 840 - 890
SCHNEIDER FIL BP540-80/C-MOUNT-HT
 80 565 nm 495 nm N/A N/A C-Mount bandpass Schneider Kreuznach 515 - 565
SCHNEIDER FIL BP540-80/25,5-HT
 80 565 nm 495 nm N/A N/A M25.5 x 0.5 bandpass Schneider Kreuznach 515 - 565
SCHNEIDER FIL BP540-80/27-HT
 80 565 nm 495 nm N/A N/A M27 x 0.5 bandpass Schneider Kreuznach 515 - 565
SCHNEIDER FIL BP540-80/30,5-HT
 80 565 nm 495 nm N/A N/A M30.5 x 0.5 bandpass Schneider Kreuznach 515 - 565
SCHNEIDER FIL BP540-80/35,5-HT
 80 565 nm 495 nm N/A N/A M35.5 x 0.5 bandpass Schneider Kreuznach 515 - 565
SCHNEIDER FIL BP540-80/37-HT
 80 565 nm 495 nm N/A N/A M37.5 x 0.75 bandpass Schneider Kreuznach 515 - 565
SCHNEIDER FIL BP590-50/27-HT
 50 615 nm 565 nm N/A N/A M27 x 0.5 bandpass Schneider Kreuznach 585 - 595
SCHNEIDER FIL BP635-50/27-HT
 50 660 nm 610 nm N/A N/A M27 x 0.5 bandpass Schneider Kreuznach 630 - 640
SCHNEIDER FIL BP635-50/30,5-HT
 50 660 nm 610 nm N/A N/A M30.5 x 0.5 bandpass Schneider Kreuznach 630 - 640
SCHNEIDER FIL BP635-50/40,5-HT
 25 660 nm 610 nm N/A N/A M40.5 x 0.5 bandpass Schneider Kreuznach 630 - 640
SCHNEIDER FIL BP590-50/CMT-HT
 50 615 nm 565 nm N/A N/A C-Mount bandpass Schneider Kreuznach 585 - 595
SCHNEIDER FIL BP590-50/30,5-HT
 50 615 nm 565 nm N/A N/A M30.5 x 0.5 bandpass Schneider Kreuznach 585 - 595
SCHNEIDER FIL BP590-50/40,5-HT
 50 615 nm 565 nm N/A N/A M40.5 x 0.5 bandpass Schneider Kreuznach 585 - 595
SCHNEIDER FIL BP865-100/30,5-HT
 50 915 nm 815 nm N/A N/A M30.5 x 0.5 bandpass Schneider Kreuznach 840 - 890
SCHNEIDER FIL BP540-300/35,5-HT
 300 690 nm 390 nm N/A N/A M35.5 x 0.5 bandpass Schneider Kreuznach 405 - 670
SCHNEIDER FIL BP540-300/25,5-HT
 300 690 nm 390 nm N/A N/A M25.5 x 0.5 bandpass Schneider Kreuznach 405 - 670
SCHNEIDER FIL BP540-300/C-MOUNT-HT
 300 690 nm 390 nm N/A N/A C-Mount bandpass Schneider Kreuznach 405 - 670
SCHNEIDER FIL BP540-300/27-HT
 300 690 nm 390 nm N/A N/A M27 x 0.5 bandpass Schneider Kreuznach 405 - 670
SCHNEIDER FIL BP540-300/43-HT
300 690 nm 390 nm N/A N/A M43 x 0.75 bandpass Schneider Kreuznach 405 - 670
SCHNEIDER FIL BP540-300/30,5-HT
 300 690 nm 390 nm N/A N/A M30.5 x 0.5 bandpass Schneider Kreuznach 405 - 670
SCHNEIDER FIL BP540-300/37-HT
 300 690 nm 390 nm N/A N/A M37 x 0.75 bandpass Schneider Kreuznach 405 - 670
SCHNEIDER FIL BP540-300/40,5-HT
 300 690 nm 390 nm N/A N/A M40.5 x 0.5 bandpass Schneider Kreuznach 405 - 670
SCHNEIDER FIL BP590-50/43-HT
 50 615 nm 565 nm N/A N/A M43 x 0.75 bandpass Schneider Kreuznach 585 - 595
SCHNEIDER FIL BP465-70/43-HT
 35 550 nm 430 nm N/A N/A M43 x 0.75 bandpass Schneider Kreuznach 400 - 490
SCHNEIDER FIL BP660-60/43-HT
 30 690 nm 630 nm N/A N/A M43 x 0.75 bandpass Schneider Kreuznach 640 - 670
SCHNEIDER FIL BP540-80/43-HT
 80 565 nm 495 nm N/A N/A M43 x 0.75 bandpass Schneider Kreuznach 515 - 565
SCHNEIDER FIL BP465-70/46-HT
 35 550 nm 430 nm N/A N/A M46 x 0.75 bandpass Schneider Kreuznach 400 - 490
SCHNEIDER FIL BP865-100/35,5-HT
 50 915 nm 815 nm N/A N/A M35.5 x 0.5 bandpass Schneider Kreuznach 840 - 890
SCHNEIDER FIL BP540-300/34-HT
 300 690 nm 390 nm N/A N/A M34.5 x 0.5 bandpass Schneider Kreuznach 405 - 670
SCHNEIDER FIL BP590-50/35,5-HT
 50 615 nm 565 nm N/A N/A M35.5 x 0.5 bandpass Schneider Kreuznach 585 - 595
SCHNEIDER FIL BP865-100/CMT-HT
 100 915 nm 815 nm N/A N/A C-Mount bandpass Schneider Kreuznach 840 - 890
SCHNEIDER FIL BP660-60/60-HT SH49
 30 690 nm 630 nm N/A N/A M49 x 0.75 bandpass Schneider Kreuznach 640 - 670
SCHNEIDER FIL BP540-80/46-HT
 80 565 nm 495 nm N/A N/A M46 x 0.75 bandpass Schneider Kreuznach 515 - 565
SCHNEIDER FIL BP540-80/34-HT
 80 565 nm 495 nm N/A N/A M34 x 0.5 bandpass Schneider Kreuznach 515 - 565
SCHNEIDER FIL BP865-100/43-HT
 50 915 nm 815 nm N/A N/A M43 x 0.5 bandpass Schneider Kreuznach 840 - 890
SCHNEIDER FIL BP575-170/43 GLASS-HT
 170 660 nm 495 nm N/A N/A No Filter Thread bandpass Schneider Kreuznach 515 - 640
SCHNEIDER FIL BP540-80/C-MOUNTX1-HT
 80 580 nm 495 nm N/A N/A C-Mount bandpass Schneider Kreuznach 515 - 565
SCHNEIDER FIL BP575-170/C-MOUNTX2-HT
 170 660 nm 495 nm N/A N/A C-Mount bandpass Schneider Kreuznach 515 - 640

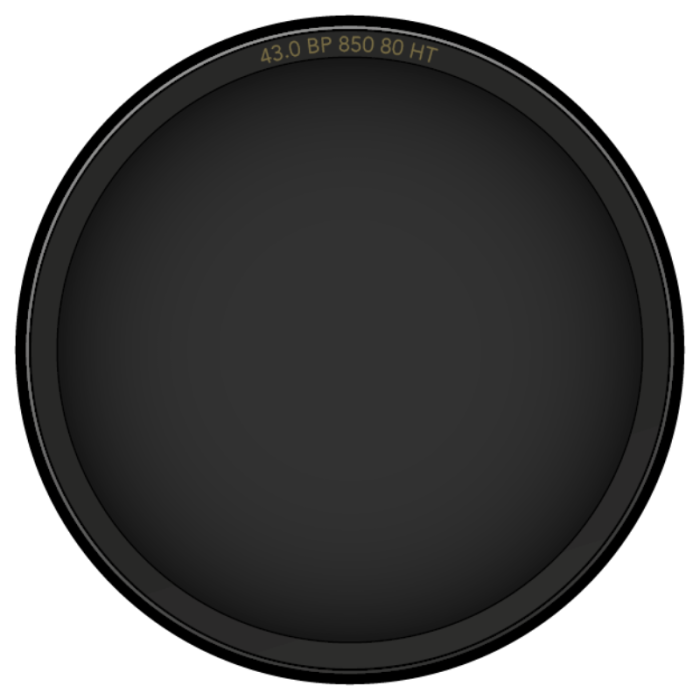

SCHNEIDER FIL BP850-80/25,5-HT
 40 890 nm 810 nm N/A N/A M25.5 x 0.5 bandpass Schneider Kreuznach 825 - 875
SCHNEIDER FIL BP850-80/27-HT
 40 890 nm 810 nm N/A N/A M27 x 0.5 bandpass Schneider Kreuznach 825 - 875
SCHNEIDER FIL BP850-80/30,5-HT
 40 890 nm 810 nm N/A N/A M30.5 x 0.5 bandpass Schneider Kreuznach 825 - 875
SCHNEIDER FIL BP850-80/35,5-HT
 40 890 nm 810 nm N/A N/A M35.5 x 0.5 bandpass Schneider Kreuznach 825 - 875
SCHNEIDER FIL BP850-80/C-MOUNT-HT
 40 890 nm 810 nm N/A N/A C-Mount bandpass Schneider Kreuznach 825 - 875
SCHNEIDER FIL BP865-100/49-HT
 100 915 nm 815 nm N/A N/A M49 x 0.75 bandpass Schneider Kreuznach 840 - 890
SCHNEIDER FIL BP575-170/27X2-HT
170 660 nm 495 nm N/A N/A M27 x 0.5 bandpass Schneider Kreuznach 515 - 640
SCHNEIDER FIL BP635-50/25,5X2-HT
50 660 nm 610 nm N/A N/A M25.5 x 0.5 bandpass Schneider Kreuznach 630 - 640
SCHNEIDER FIL BP540-80/22 GLAS
 40 565 nm 495 nm N/A N/A No Filter Thread bandpass Schneider Kreuznach 515 - 565
SCHNEIDER FIL BP575-170/49.0X2-HT
 170 660 nm 495 nm N/A N/A M49 x 0.5 bandpass Schneider Kreuznach 515 - 640
SCHNEIDER FIL BP635-50/43-HT
 25 660 nm 610 nm N/A N/A M43 x 0.75 bandpass Schneider Kreuznach 630 - 640
SCHNEIDER FIL BP575-170/25,5X2-HT
 170 660 nm 495 nm N/A N/A M25.5 x 0.5 bandpass Schneider Kreuznach 515 - 640

Por que escolher Schneider Kreuznach - Bandpass Filters?

BP 465-70 HT

  • Transmission range: 440 nm - 490 nm
  • Transmission (average): >95%
  • Blocking UV - 390 nm: T (abs): < 0.5%; 530 - 1000 nm : T(ave) < 0.5%
  • AR Coating

BP 545-80 HT

  • Transmission range: 515 nm - 565 nm
  • Transmission (average): >90%
  • Blocking UV - 450 nm: T (abs): < 0.5%; 615 - 950 nm : T < 1.5%; 950 nm - 1100 nm T < 2.0%
  • AR Coating

BP 575-170 HT

  • Transmission range: 515 nm - 640 nm
  • Transmission (average): >90%
  • Blocking UV - 390 nm: T (abs): < 0.5%; 710 - 1050 nm : T(ave) < 1.0%
  • AR Coating

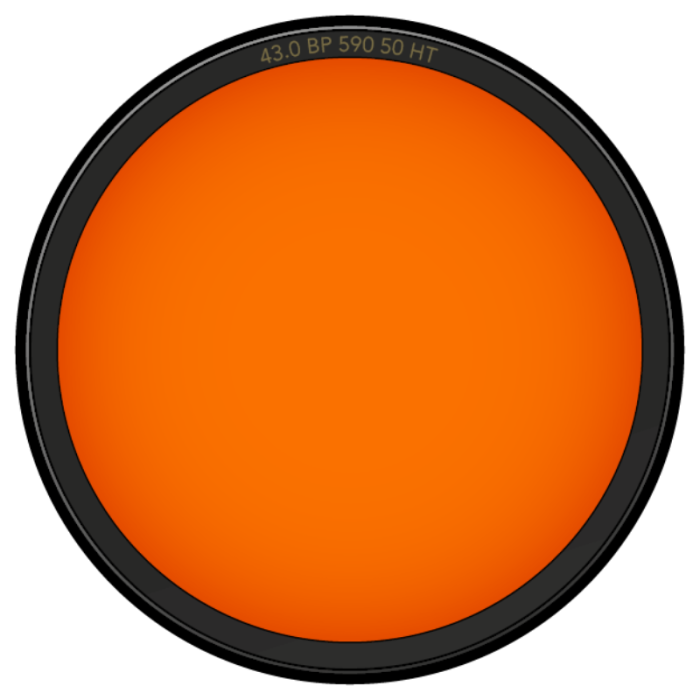

BP 590-50 HT

  • Transmission range: 585 nm - 595 nm
  • Transmission (average): >9%
  • Blocking UV - 530 nm: T (abs): < 0.5%; 650 - 1000 nm : T(ave) < 1.0%
  • AR Coating

BP 590-200 HT

  • Transmission range: 440 nm - 490 nm
  • Transmission (average): >95%
  • Blocking UV - 390 nm: T (abs): < 0.5%; 530 - 1000 nm : T(ave) < 0.5%
  • AR Coating

BP 640-100 HT

  • Transmission range: 610 nm - 670 nm
  • Transmission (average): >90%
  • Blocking UV - 545 nm: T (abs): < 0.5%; 735 - 1100 nm : T(ave) < 1.0%
  • AR Coating

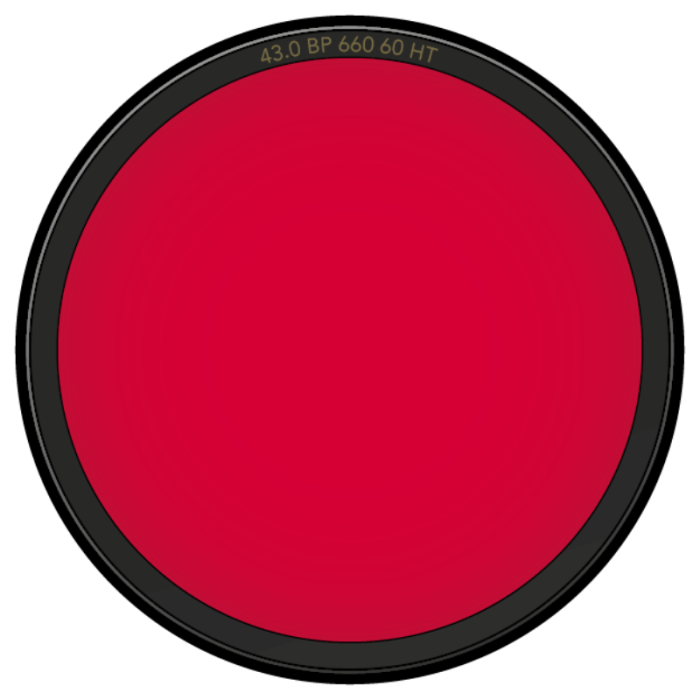

BP 660-60 HT

  • Transmission range: 650 nm - 670 nm
  • Transmission (average): >95%
  • Blocking UV - 570 nm: T (abs): < 0.5%; 735 - 1100 nm : T(ave) < 1.0%
  • AR Coating

BP 680-100 HT

  • Transmission range: 650 nm - 710 nm
  • Transmission (average): >95%
  • Blocking UV - 570 nm: T (abs): < 0.5%; 780 - 1100 nm : T(ave) < 1.0%
  • AR Coating

BP 865-100 HT

  • Transmission range: 840 nm - 890 nm
  • Transmission (average): >95%
  • Blocking UV - 780 nm: T (abs): < 0.5%; 950 - 1100 nm : T(ave) < 1.0%
  • AR Coating
