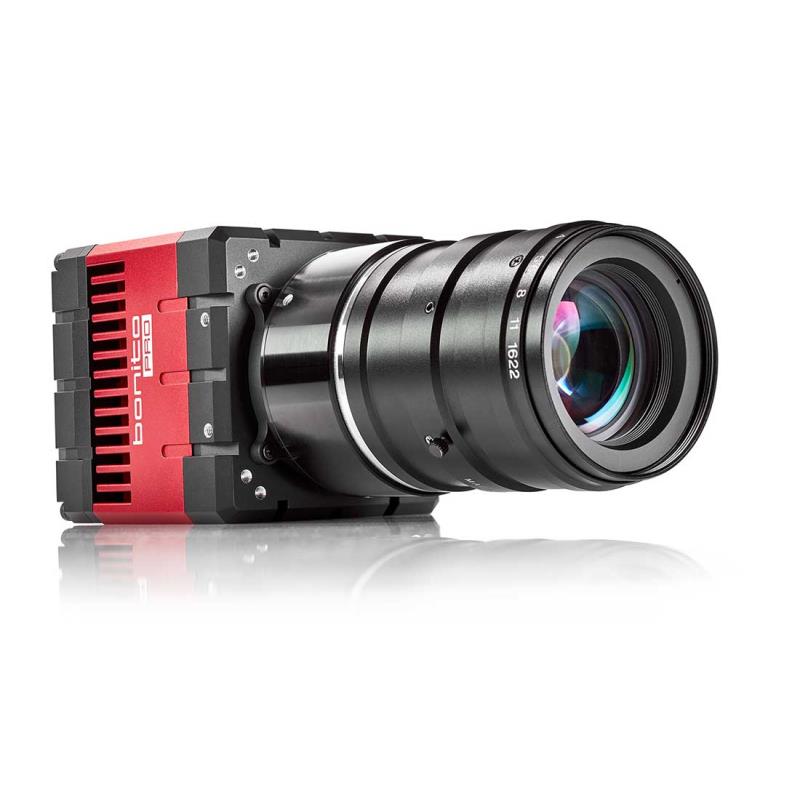

AV BONITO PRO X-2620B NIR
SKU#:
39043
High bandwidth CoaXPress camera.
Hinweis: Das tatsächliche Produkt kann von der Abbildung abweichen!
Die Downloads finden Sie unter der entsprechenden Produktserie:
Allied Vision - Bonito Pro
List Price
Your Discount
Your Price
Product not available in your country
Preis und Verfügbarkeit auf Anfrage
Kontakt aufnehmen
Preise anfragen
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Wavelength range | Monochrome, VIS-NIR |
| Resolution (MP) | 26.2 |
| Resolution Horizontal (Px) | 5120 |
| Resolution Vertical (Px) | 5120 |
| Frame rate (Hz) | 80 |
| Lens mount | Nikon F-Mount |
| Interface | CoaXPress |
| Sensor model | Python 25K |
| Sensor type | CMOS |
| Scan type | area |
| Pixel size (µm) | 4.5 |
| Sensor format | APS-H |
| Sensor size diagonal (mm) | 32.6 |
| Shutter type | Global shutter/Prog scan |
| Dimension (width, mm) | 70 |
| Dimension (height, mm) | 110.6 |
| Dimension (depth, mm) | 70 |
| Housing | large format |
| Weight (kg) | 0.500 |
| Manufacturer | Allied Vision |
| Active sensor size (horizontal, mm) | 23 |
| Active sensor size (vertical, mm) | 23 |
| Bit depth | 10 |
| Connector a: video | 4x DIN 1.0/2.3 |
| Connector b: power | Hirose 12-pin |
| Flange focal distance | 46.5 |
| Interface configuration | 4x CXP-6, PoCXP |
| Output formats | Mono8 |
| Power consumption (W) | 15.7 |
| Power supply voltage (VDC) | 24 |
| Sensor configuration | Single sensor |
| Software CameraSuite | no |
| Software driver CVB | no |
| Storage temperature (°C) | -20 - 70 |
- Sensor: 26.2 megapixel On-Semi Python CMOS
- Frame rate: up to 80 fps
- Bit depth: 8 and 10 bit
- Options: colour, monochrome and NIR
- Features: multiple-ROI (up to 4 regions of interest readout), sequencer mode (up to 4 sequences), fixed pattern noise correction (FPNC), defect pixel correction (DPC), exposure, gain, white balance (manual, auto, one-push), look-up tables (LUTs), binning (separate x- and y-binning), subsampling (decimation)
- Interface: CoaXPress incl. Power over CoaXpress (PoCXP)
- Operating temperature: -20 °C to +70 °C (housing)
