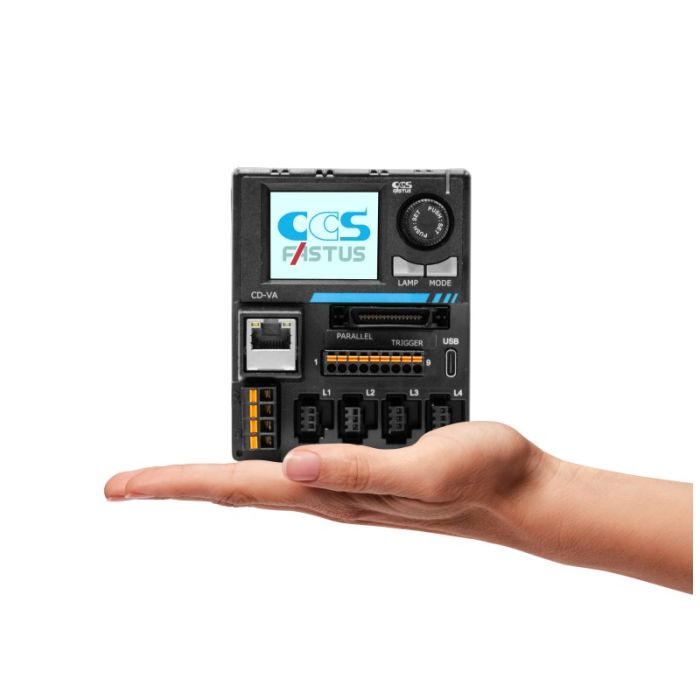

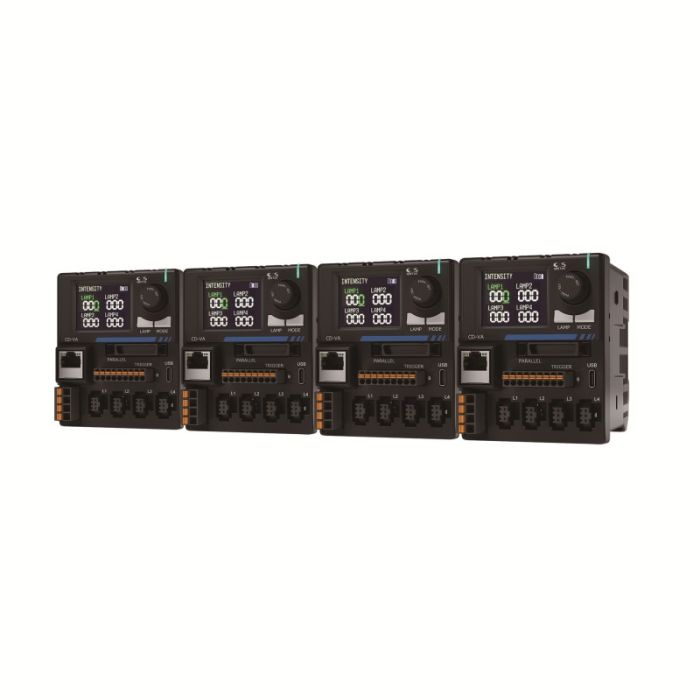

CCS - CD-VA
Compact and multifunctional control units with DC input.
Key Features
- 2 channels
- Applicable Light Unit (output ratings): 24 VDC lighting; 2 channels total: 100 W (1 channel 50 W or less)
- Dimensions: W 80 mm x D 99 mm x H 98 mm
- Lighting method: Continuous lighting, strobe lighting (overdrive when emission time is 1000 μs or less)
- Drive method: Constant lighting
- Input power: 24 VDC ± 10 %
- Cooling method: Natural air cooling
- Weight: 260 g
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Number channels | Max. output power per channel (W) | Max. trigger frequency (Hz) | LED controller interface | Operating mode | Intensity control method | Triniti | Manufacturer | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 2 | 50 | 100000 | Ethernet; RS232 | continous mode | variable voltage control | no | CCS | 0.260 | |
| 2 | 50 | 100000 | RS232 | continous mode | variable voltage control | no | CCS | 0.260 | |
| 4 | 50 | 100000 | Ethernet; RS232 | continous mode | variable voltage control | no | CCS | 0.260 | |
| 4 | 50 | 100000 | RS232 | continous mode | variable voltage control | no | CCS | 0.260 |
