CCS - HLDL3

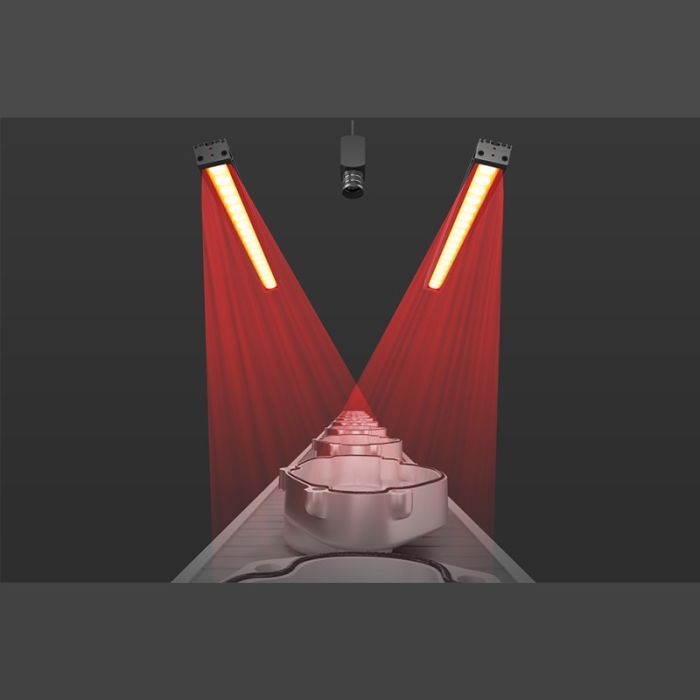

High power LED bar lights for long-distance and wide-area irradiation

Key Features

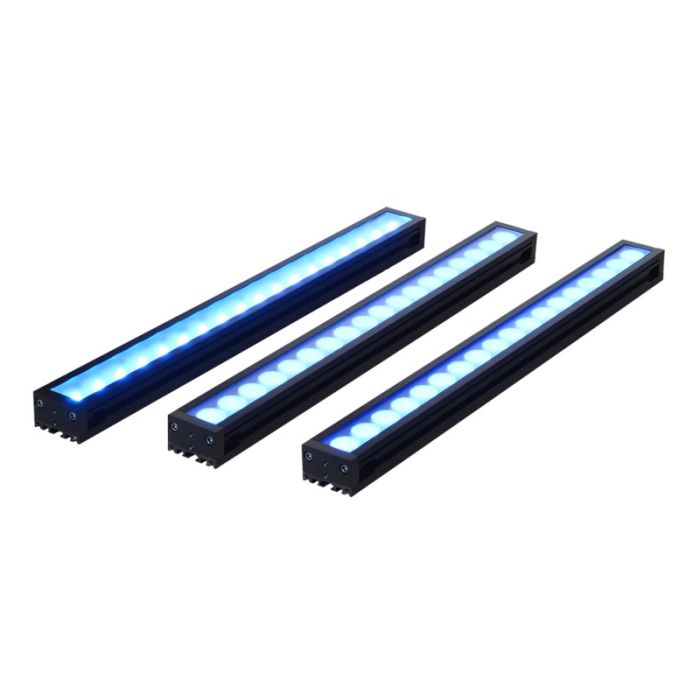

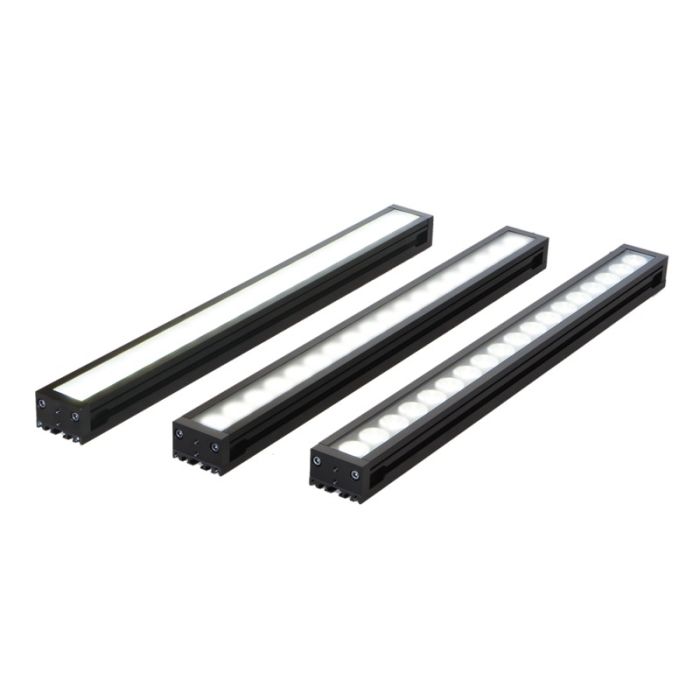

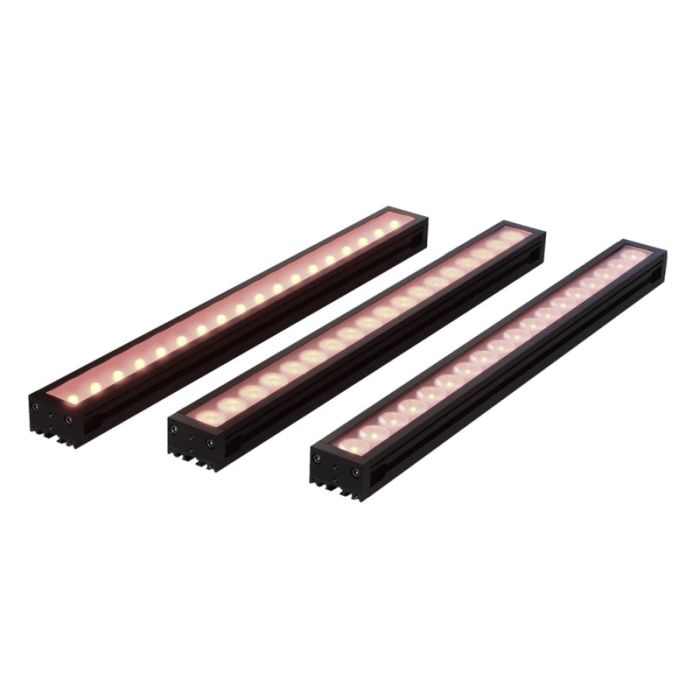

  • Light colour: Red, White, Blue, IR (860 nm)
  • Beam angles: narrow (+/- 8°), medium (+/-20°), wide (+/-40°)
  • Dimensions: 170 mm – 1820 mm x 44 mm x 31 mm (W x D x H)
  • Light-emitting surface length: 150 mm – 1800 mm (in 150 mm increments)
  • Input voltage: 24 V
  • Power consumption: max. 176 W
  • Recommended working distance: up to 2 m (depending on beam angle)
  • Can be connected to a lighting controller via standard FCB cable but also via FRCB robot cable
  • Suitable for continuous and strobe operation

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

Bis
Bis
Produktname Beam angle Connectors Dominant wavelength (nm) Emitting surface height (mm) Emitting surface inner diameter (mm) Emitting surface outer diameter (mm) Emitting surface width (mm) Intensity control method IP rating LED risk group Light colour Light distribution Lighting geometry Lighting technique Manufacturer Smart Weight (kg)
CCS HLDL3-150X28SW-DF-W
 wide N/A N/A 28 N/A N/A 150 N/A N/A N/A White direct bar light frontlight CCS no N/A
CCS HLDL3-150X28SW-DF-N
 narrow N/A N/A 28 N/A N/A 150 N/A N/A 2 White direct bar light frontlight CCS no 0.350
CCS HLDL3-300X28SW-DF-M
 medium N/A N/A 28 N/A N/A 300 N/A N/A N/A White direct bar light frontlight CCS no 0.600
CCS HLDL3-300X28SW-DF-W
 wide N/A N/A 28 N/A N/A 300 N/A N/A N/A White direct bar light frontlight CCS no 0.620
CCS HLDL3-150X28SW-DF-M
 medium N/A N/A 28 N/A N/A 150 N/A N/A N/A White direct bar light frontlight CCS no N/A
CCS HLDL3-1200X28SW-DF-M
 medium N/A N/A 28 N/A N/A 1200 N/A N/A N/A White direct bar light frontlight CCS no 2.400
CCS HLDL3-600X28RD-DF-M
 medium JST SMR-03V-B 625 28 N/A N/A 600 N/A N/A 2 Red direct bar light frontlight CCS no 1.200
CCS HLDL3-300X28SW-DF-N
 narrow N/A N/A 28 N/A N/A 300 N/A N/A N/A White direct bar light frontlight CCS no 0.600
CCS HLDL3-450X28SW-DF-N
 narrow N/A N/A 28 N/A N/A 450 N/A N/A N/A White direct bar light frontlight CCS no 0.910
CCS HLDL3-450X28SW-DF-M
 medium N/A N/A 28 N/A N/A 450 N/A N/A N/A White direct bar light frontlight CCS no 0.910
CCS HLDL3-450X28SW-DF-W
 wide N/A N/A 28 N/A N/A 450 N/A N/A N/A White direct bar light frontlight CCS no 0.940
CCS HLDL3-600X28SW-DF-M
 medium JST SMR-03V-B N/A 28 N/A N/A 600 N/A N/A N/A White direct bar light frontlight CCS no 1.200
CCS HLDL3-600X28SW-DF-N
 narrow JST SMR-03V-B N/A 28 N/A N/A 600 N/A N/A N/A White direct bar light frontlight CCS no 1.200
CCS HLDL3-600X28SW-DF-W
 wide JST SMR-03V-B N/A 28 N/A N/A 600 N/A N/A N/A White direct bar light frontlight CCS no 1.240
CCS HLDL3-750X28SW-DF-M
 medium N/A N/A 28 N/A N/A 750 N/A N/A N/A White direct bar light frontlight CCS no 1.510
CCS HLDL3-750X28SW-DF-N
 narrow N/A N/A 28 N/A N/A 750 N/A N/A N/A White direct bar light frontlight CCS no 1.510
CCS HLDL3-750X28SW-DF-W
 wide N/A N/A 28 N/A N/A 750 N/A N/A N/A White direct bar light frontlight CCS no 1.560
CCS HLDL3-900X28SW-DF-M
 medium 2-pin EL (ELP-02V) N/A 28 N/A N/A 900 N/A N/A 1 White direct bar light frontlight CCS no 1.800
CCS HLDL3-900X28SW-DF-N
 narrow 2-pin EL (ELP-02V) N/A 28 N/A N/A 900 N/A N/A 2 White direct bar light frontlight CCS no 1.800
CCS HLDL3-900X28SW-DF-W
 wide 2-pin EL (ELP-02V) N/A 28 N/A N/A 900 N/A N/A 1 White direct bar light frontlight CCS no 1.860
CCS HLDL3-1050X28SW-DF-M
 medium N/A N/A 28 N/A N/A 1050 N/A N/A N/A White direct bar light frontlight CCS no 2.110
CCS HLDL3-1050X28SW-DF-N
 narrow N/A N/A 28 N/A N/A 1050 N/A N/A N/A White direct bar light frontlight CCS no 2.110
CCS HLDL3-1050X28SW-DF-W
 wide N/A N/A 28 N/A N/A 1050 N/A N/A N/A White direct bar light frontlight CCS no 2.180
CCS HLDL3-1200X28SW-DF-N
 narrow N/A N/A 28 N/A N/A 1200 N/A N/A N/A White direct bar light frontlight CCS no 2.400
CCS HLDL3-1200X28SW-DF-W
 wide N/A N/A 28 N/A N/A 1200 N/A N/A N/A White direct bar light frontlight CCS no 2.480
CCS HLDL3-1350X28SW-DF-M
 medium N/A N/A 28 N/A N/A 1350 N/A N/A N/A White direct bar light frontlight CCS no 2.710
CCS HLDL3-1350X28SW-DF-N
 narrow N/A N/A 28 N/A N/A 1350 N/A N/A N/A White direct bar light frontlight CCS no 2.710
CCS HLDL3-1350X28SW-DF-W
wide N/A N/A 28 N/A N/A 1350 N/A N/A N/A White direct bar light frontlight CCS no 2.800
CCS HLDL3-1500X28SW-DF-M
medium N/A N/A 28 N/A N/A 1500 N/A N/A N/A White direct bar light frontlight CCS no 3.000
CCS HLDL3-1500X28SW-DF-N
 narrow N/A N/A 28 N/A N/A 1500 N/A N/A N/A White direct bar light frontlight CCS no 3.000
CCS HLDL3-1500X28SW-DF-W
 wide N/A N/A 28 N/A N/A 1500 N/A N/A N/A White direct bar light frontlight CCS no N/A
CCS HLDL3-1650X28SW-DF-M
 medium N/A N/A 28 N/A N/A 1650 N/A N/A N/A White direct bar light frontlight CCS no 3.310
CCS HLDL3-1650X28SW-DF-N
 narrow N/A N/A 28 N/A N/A 1650 N/A N/A N/A White direct bar light frontlight CCS no 3.310
CCS HLDL3-1650X28SW-DF-W
 wide N/A N/A 28 N/A N/A 1650 N/A N/A N/A White direct bar light frontlight CCS no 3.420
CCS HLDL3-1800X28SW-DF-M
 medium N/A N/A 28 N/A N/A 1800 N/A N/A N/A White direct bar light frontlight CCS no 3.600
CCS HLDL3-1800X28SW-DF-N
 narrow N/A N/A 28 N/A N/A 1800 N/A N/A N/A White direct bar light frontlight CCS no 3.600
CCS HLDL3-1800X28SW-DF-W
 wide N/A N/A 28 N/A N/A 1800 N/A N/A N/A White direct bar light frontlight CCS no 3.720
CCS HLDL3-150X28RD-DF-W
wide N/A 625 28 N/A N/A 150 N/A N/A 2 Red direct bar light frontlight CCS no 0.350
CCS HLDL3-150X28RD-DF-M
 medium N/A 625 28 N/A N/A 150 N/A N/A 2 Red direct bar light frontlight CCS no 0.350
CCS HLDL3-150X28RD-DF-N
 narrow N/A 625 28 N/A N/A 150 N/A N/A 2 Red direct bar light frontlight CCS no 0.350
CCS HLDL3-450X28RD-DF-W
 wide N/A 625 28 N/A N/A 450 N/A N/A 2 Red direct bar light frontlight CCS no 0.940
CCS HLDL3-300X28RD-DF-N
 narrow N/A 625 28 N/A N/A 300 N/A N/A 2 Red direct bar light frontlight CCS no 0.600
CCS HLDL3-300X28RD-DF-W
 wide N/A 625 28 N/A N/A 300 N/A N/A 2 Red direct bar light frontlight CCS no 0.620
CCS HLDL3-300X28RD-DF-M
 medium N/A 625 28 N/A N/A 300 N/A N/A 2 Red direct bar light frontlight CCS no 0.600
CCS HLDL3-450X28RD-DF-M
 medium N/A 625 28 N/A N/A 450 N/A N/A 2 Red direct bar light frontlight CCS no 0.910
CCS HLDL3-450X28RD-DF-N
 narrow N/A 625 28 N/A N/A 450 N/A N/A 2 Red direct bar light frontlight CCS no 0.910
CCS HLDL3-600X28RD-DF-N
 narrow JST SMR-03V-B 625 28 N/A N/A 600 N/A N/A 2 Red direct bar light frontlight CCS no 1.200
CCS HLDL3-600X28RD-DF-W
 wide JST SMR-03V-B 625 28 N/A N/A 600 N/A N/A 2 Red direct bar light frontlight CCS no 1.240
CCS HLDL3-750X28RD-DF-M
 medium N/A 625 28 N/A N/A 750 N/A N/A 2 Red direct bar light frontlight CCS no 1.510
CCS HLDL3-750X28RD-DF-N
 narrow N/A 625 28 N/A N/A 750 N/A N/A 2 Red direct bar light frontlight CCS no 1.510
CCS HLDL3-750X28RD-DF-W
 wide N/A 625 28 N/A N/A 750 N/A N/A 2 Red direct bar light frontlight CCS no 1.560
CCS HLDL3-1050X28RD-DF-M
 medium N/A 625 28 N/A N/A 1050 N/A N/A 2 Red direct bar light frontlight CCS no 2.110
CCS HLDL3-900X28RD-DF-M
 medium N/A 625 28 N/A N/A 900 N/A N/A 2 Red direct bar light frontlight CCS no 1.800
CCS HLDL3-900X28RD-DF-N
 narrow N/A 625 28 N/A N/A 900 N/A N/A 2 Red direct bar light frontlight CCS no 1.800
CCS HLDL3-900X28RD-DF-W
 wide 2-pin EL (ELP-02V) 625 28 N/A N/A 900 N/A N/A 2 Red direct bar light frontlight CCS no 1.860
CCS HLDL3-1050X28RD-DF-N
 narrow N/A 625 28 N/A N/A 1050 N/A N/A 2 Red direct bar light frontlight CCS no 2.110
CCS HLDL3-1050X28RD-DF-W
 wide N/A 625 28 N/A N/A 1050 N/A N/A 2 Red direct bar light frontlight CCS no 2.180
CCS HLDL3-1200X28RD-DF-M
 medium N/A 625 28 N/A N/A 1200 N/A N/A 2 Red direct bar light frontlight CCS no 2.400
CCS HLDL3-1200X28RD-DF-N
 narrow N/A 625 28 N/A N/A 1200 N/A N/A 2 Red direct bar light frontlight CCS no 2.400
CCS HLDL3-1200X28RD-DF-W
 wide N/A 625 28 N/A N/A 1200 N/A N/A 2 Red direct bar light frontlight CCS no 2.480
CCS HLDL3-1350X28RD-DF-M
 medium N/A 625 28 N/A N/A 1350 N/A N/A 2 Red direct bar light frontlight CCS no 2.710
CCS HLDL3-1350X28RD-DF-N
 narrow N/A 625 28 N/A N/A 1350 N/A N/A 2 Red direct bar light frontlight CCS no 2.710
CCS HLDL3-1350X28RD-DF-W
 wide N/A 625 28 N/A N/A 1350 N/A N/A 2 Red direct bar light frontlight CCS no 2.800
CCS HLDL3-1500X28RD-DF-M
 medium N/A 625 28 N/A N/A 1500 N/A N/A 2 Red direct bar light frontlight CCS no 3.000
CCS HLDL3-1500X28RD-DF-N
 narrow N/A 625 28 N/A N/A 1500 N/A N/A 2 Red direct bar light frontlight CCS no 3.000
CCS HLDL3-1500X28RD-DF-W
 wide N/A 625 28 N/A N/A 1500 N/A N/A 2 Red direct bar light frontlight CCS no 3.100
CCS HLDL3-1650X28RD-DF-M
 medium N/A 625 28 N/A N/A 1650 N/A N/A 2 Red direct bar light frontlight CCS no 3.310
CCS HLDL3-1650X28RD-DF-N
 narrow N/A 625 28 N/A N/A 1650 N/A N/A 2 Red direct bar light frontlight CCS no 3.310
CCS HLDL3-1650X28RD-DF-W
 wide N/A 625 28 N/A N/A 1650 N/A N/A 2 Red direct bar light frontlight CCS no 3.420
CCS HLDL3-1800X28RD-DF-M
 medium N/A 625 28 N/A N/A 1800 N/A N/A 2 Red direct bar light frontlight CCS no 3.600
CCS HLDL3-1800X28RD-DF-N
 narrow N/A 625 28 N/A N/A 1800 N/A N/A 2 Red direct bar light frontlight CCS no 3.600
CCS HLDL3-1800X28RD-DF-W
 wide N/A 625 28 N/A N/A 1800 N/A N/A 2 Red direct bar light frontlight CCS no 3.720
CCS HLDL3-150X28BL-DF-W
 wide N/A 465 28 N/A N/A 150 N/A N/A 2 Blue direct bar light frontlight CCS no 0.350
CCS HLDL3-150X28BL-DF-M
 medium N/A 465 28 N/A N/A 150 N/A N/A 2 Blue direct bar light frontlight CCS no 0.350
CCS HLDL3-150X28BL-DF-N
 narrow N/A 465 28 N/A N/A 150 N/A N/A 2 Blue direct bar light frontlight CCS no 0.350
CCS HLDL3-300X28BL-DF-M
 medium N/A 465 28 N/A N/A 300 N/A N/A 2 Blue direct bar light frontlight CCS no 0.600
CCS HLDL3-300X28BL-DF-N
 narrow N/A 465 28 N/A N/A 300 N/A N/A 2 Blue direct bar light frontlight CCS no 0.600
CCS HLDL3-300X28BL-DF-W
 wide N/A 465 28 N/A N/A 300 N/A N/A 2 Blue direct bar light frontlight CCS no 0.620
CCS HLDL3-1650X28BL-DF-W
wide N/A 465 28 N/A N/A 1650 N/A N/A 2 Blue direct bar light frontlight CCS no 3.420
CCS HLDL3-450X28BL-DF-M
 medium N/A 465 28 N/A N/A 450 N/A N/A 2 Blue direct bar light frontlight CCS no 0.910
CCS HLDL3-300X28IR-DF-M
 medium N/A 860 28 N/A N/A 300 N/A N/A 2 IR direct bar light frontlight CCS no 0.600
CCS HLDL3-450X28BL-DF-N
 narrow N/A 465 28 N/A N/A 450 N/A N/A 2 Blue direct bar light frontlight CCS no 0.910
CCS HLDL3-450X28BL-DF-W
 wide N/A 465 28 N/A N/A 450 N/A N/A 2 Blue direct bar light frontlight CCS no 0.940
CCS HLDL3-600X28BL-DF-W
 wide N/A 465 28 N/A N/A 600 N/A N/A 2 Blue direct bar light frontlight CCS no 1.240
CCS HLDL3-600X28BL-DF-N
 narrow N/A 465 28 N/A N/A 600 N/A N/A 2 Blue direct bar light frontlight CCS no 1.200
CCS HLDL3-600X28BL-DF-M
 medium N/A 465 28 N/A N/A 600 N/A N/A 2 Blue direct bar light frontlight CCS no 1.200
CCS HLDL3-750X28BL-DF-W
 wide N/A 465 28 N/A N/A 750 N/A N/A 2 Blue direct bar light frontlight CCS no 1.560
CCS HLDL3-750X28BL-DF-N
 narrow N/A 465 28 N/A N/A 750 N/A N/A 2 Blue direct bar light frontlight CCS no 1.510
CCS HLDL3-750X28BL-DF-M
 medium N/A 465 28 N/A N/A 750 N/A N/A 2 Blue direct bar light frontlight CCS no 1.510
CCS HLDL3-1050X28BL-DF-W
 wide N/A 465 28 N/A N/A 1050 N/A N/A 2 Blue direct bar light frontlight CCS no 2.180
CCS HLDL3-900X28BL-DF-W
 wide N/A 465 28 N/A N/A 900 N/A N/A 2 Blue direct bar light frontlight CCS no 1.860
CCS HLDL3-900X28BL-DF-N
 narrow N/A 465 28 N/A N/A 900 N/A N/A 2 Blue direct bar light frontlight CCS no 1.800
CCS HLDL3-900X28BL-DF-M
 medium N/A 465 28 N/A N/A 900 N/A N/A 2 Blue direct bar light frontlight CCS no 1.800
CCS HLDL3-1050X28BL-DF-N
 narrow N/A 465 28 N/A N/A 1050 N/A N/A 2 Blue direct bar light frontlight CCS no 2.110
CCS HLDL3-1050X28BL-DF-M
 medium N/A 465 28 N/A N/A 1050 N/A N/A 2 Blue direct bar light frontlight CCS no 2.110
CCS HLDL3-1200X28BL-DF-M
 medium N/A 465 28 N/A N/A 1200 N/A N/A 2 Blue direct bar light frontlight CCS no 2.400
CCS HLDL3-1200X28BL-DF-N
 narrow N/A 465 28 N/A N/A 1200 N/A N/A 2 Blue direct bar light frontlight CCS no 2.400
CCS HLDL3-1200X28BL-DF-W
 wide N/A 465 28 N/A N/A 1200 N/A N/A 2 Blue direct bar light frontlight CCS no 2.480
CCS HLDL3-1350X28BL-DF-W
wide N/A 465 28 N/A N/A 1350 N/A N/A 2 Blue direct bar light frontlight CCS no 2.800
CCS HLDL3-1350X28BL-DF-N
 narrow N/A 465 28 N/A N/A 1350 N/A N/A 2 Blue direct bar light frontlight CCS no 2.710
CCS HLDL3-1350X28BL-DF-M
 medium N/A 465 28 N/A N/A 1350 N/A N/A 2 Blue direct bar light frontlight CCS no 2.710
CCS HLDL3-1500X28BL-DF-M
 medium N/A 465 28 N/A N/A 1500 N/A N/A 2 Blue direct bar light frontlight CCS no 3.000
CCS HLDL3-1500X28BL-DF-N
 narrow N/A 465 28 N/A N/A 1500 N/A N/A 2 Blue direct bar light frontlight CCS no 3.000
CCS HLDL3-1500X28BL-DF-W
 wide N/A 465 28 N/A N/A 1500 N/A N/A 2 Blue direct bar light frontlight CCS no 3.100
CCS HLDL3-1650X28BL-DF-N
 narrow N/A 465 28 N/A N/A 1650 N/A N/A 2 Blue direct bar light frontlight CCS no 3.310
CCS HLDL3-1650X28BL-DF-M
 medium N/A 465 28 N/A N/A 1650 N/A N/A 2 Blue direct bar light frontlight CCS no 3.310
CCS HLDL3-1800X28BL-DF-W
 wide N/A 465 28 N/A N/A 1800 N/A N/A 2 Blue direct bar light frontlight CCS no 3.720
CCS HLDL3-1800X28BL-DF-N
 narrow N/A 465 28 N/A N/A 1800 N/A N/A 2 Blue direct bar light frontlight CCS no 3.600
CCS HLDL3-1800X28BL-DF-M
 medium N/A 465 28 N/A N/A 1800 N/A N/A 2 Blue direct bar light frontlight CCS no 3.600
CCS HLDL3-150X28IR-DF-M
 medium N/A 860 28 N/A N/A 150 N/A N/A 2 IR direct bar light frontlight CCS no 0.350
CCS HLDL3-150X28IR-DF-N
 narrow N/A 860 28 N/A N/A 150 N/A N/A 2 IR direct bar light frontlight CCS no 0.350
CCS HLDL3-150X28IR-DF-W
 wide N/A 860 28 N/A N/A 150 N/A N/A 2 IR direct bar light frontlight CCS no 0.350
CCS HLDL3-600X28IR-DF-M
 medium N/A 465 28 N/A N/A 600 N/A N/A 2 IR direct bar light frontlight CCS no 1.200
CCS HLDL3-300X28IR-DF-N
 narrow N/A 860 28 N/A N/A 300 N/A N/A 2 IR direct bar light frontlight CCS no 0.600
CCS HLDL3-300X28IR-DF-W
 wide N/A 860 28 N/A N/A 300 N/A N/A 2 IR direct bar light frontlight CCS no 0.620
CCS HLDL3-450X28IR-DF-M
 medium N/A 860 28 N/A N/A 450 N/A N/A 2 IR direct bar light frontlight CCS no 0.910
CCS HLDL3-450X28IR-DF-N
 narrow N/A 860 28 N/A N/A 450 N/A N/A 2 IR direct bar light frontlight CCS no 0.910
CCS HLDL3-450X28IR-DF-W
 wide N/A 860 28 N/A N/A 450 N/A N/A 2 IR direct bar light frontlight CCS no 0.940
CCS HLDL3-600X28IR-DF-N
 narrow JST SMR-03V-B 860 28 N/A N/A 600 N/A N/A 1 IR direct bar light frontlight CCS no 1.240
CCS HLDL3-600X28IR-DF-W
 wide JST SMR-03V-B 860 28 N/A N/A 600 N/A N/A 0 (exempt) IR direct bar light frontlight CCS no 1.240
CCS HLDL3-750X28IR-DF-M
 medium N/A 860 28 N/A N/A 750 N/A N/A 2 IR direct bar light frontlight CCS no 1.510
CCS HLDL3-750X28IR-DF-N
 narrow N/A 860 28 N/A N/A 750 N/A N/A 2 IR direct bar light frontlight CCS no 1.510
CCS HLDL3-750X28IR-DF-W
 wide N/A 860 28 N/A N/A 750 N/A N/A 2 IR direct bar light frontlight CCS no 1.560
CCS HLDL3-900X28IR-DF-M
 medium N/A 860 28 N/A N/A 900 N/A N/A 2 IR direct bar light frontlight CCS no 1.800
CCS HLDL3-900X28IR-DF-N
 narrow N/A 860 28 N/A N/A 900 N/A N/A 2 IR direct bar light frontlight CCS no 1.800
CCS HLDL3-900X28IR-DF-W
 wide N/A 860 28 N/A N/A 900 N/A N/A 2 IR direct bar light frontlight CCS no 1.860
CCS HLDL3-1050X28IR-DF-M
 medium N/A 860 28 N/A N/A 1050 N/A N/A 2 IR direct bar light frontlight CCS no 2.110
CCS HLDL3-1050X28IR-DF-N
 narrow N/A 860 28 N/A N/A 1050 N/A N/A 2 IR direct bar light frontlight CCS no 2.110
CCS HLDL3-1050X28IR-DF-W
 wide N/A 860 28 N/A N/A 1050 N/A N/A 2 IR direct bar light frontlight CCS no 2.180
CCS HLDL3-1200X28IR-DF-M
 medium N/A 860 28 N/A N/A 1200 N/A N/A 2 IR direct bar light frontlight CCS no 2.400
CCS HLDL3-1200X28IR-DF-N
 narrow N/A 860 28 N/A N/A 1200 N/A N/A 2 IR direct bar light frontlight CCS no 2.400
CCS HLDL3-1200X28IR-DF-W
 wide N/A 860 28 N/A N/A 1200 N/A N/A 2 IR direct bar light frontlight CCS no 2.480
CCS HLDL3-1350X28IR-DF-M
medium N/A 860 28 N/A N/A 1350 N/A N/A 2 IR direct bar light frontlight CCS no 2.710
CCS HLDL3-1350X28IR-DF-N
 narrow N/A 860 28 N/A N/A 1350 N/A N/A 2 IR direct bar light frontlight CCS no 2.710
CCS HLDL3-1350X28IR-DF-W
 wide N/A 860 28 N/A N/A 1350 N/A N/A 2 IR direct bar light frontlight CCS no 2.800
CCS HLDL3-1500X28IR-DF-M
 medium N/A 860 28 N/A N/A 1500 N/A N/A 2 IR direct bar light frontlight CCS no 3.000
CCS HLDL3-1500X28IR-DF-N
 narrow N/A 860 28 N/A N/A 1500 N/A N/A 2 IR direct bar light frontlight CCS no 3.000
CCS HLDL3-1500X28IR-DF-W
 wide N/A 860 28 N/A N/A 1500 N/A N/A 2 IR direct bar light frontlight CCS no 3.100
CCS HLDL3-1650X28IR-DF-M
 medium N/A 860 28 N/A N/A 1650 N/A N/A 2 IR direct bar light frontlight CCS no 3.310
CCS HLDL3-1650X28IR-DF-N
 narrow N/A 860 28 N/A N/A 1650 N/A N/A 2 IR direct bar light frontlight CCS no 3.310
CCS HLDL3-1650X28IR-DF-W
 wide N/A 860 28 N/A N/A 1650 N/A N/A 2 IR direct bar light frontlight CCS no 3.420
CCS HLDL3-1800X28IR-DF-M
 medium N/A 860 28 N/A N/A 1800 N/A N/A 2 IR direct bar light frontlight CCS no 3.600
CCS HLDL3-1800X28IR-DF-N
 narrow N/A 860 28 N/A N/A 1800 N/A N/A 2 IR direct bar light frontlight CCS no 3.600
CCS HLDL3-1800X28IR-DF-W
 wide N/A 860 28 N/A N/A 1800 N/A N/A 2 IR direct bar light frontlight CCS no 3.720

Warum CCS - HLDL3?

Lightweight but robust aluminium housing

The CCS HLDL3 bar lights offer a lightweight but robust aluminium housing that uses a special heat dissipation mechanism to provide fanless operation under normal conditions.

Different types of light directivity for flexible use

The CCS HLDL3 bar lights are available with 3 different beam angles: narrow (+/- 8°), medium (+/-20°), and wide (+/-40°). This enables flexible use for various working distances and object sizes making them suitable for applications requiring long-distance or wide-area illumination. Depending on the beam angle, the recommended working distance can range up to 2 m.

Benötigen Sie weitere Informationen?

Fragen Sie unsere Experten, um persönliche Empfehlungen zu bekommen.

Kontakt Tech News
