Ultimate performance with superior value CoaXPress frame grabbers
Key Features
- Connections: PCIe frame grabbers with up to eight CoaXPress connections, PCIe 3.0 (Gen 3) or PCIe 2.0 (Gen 2) bus
- Data transfer: CXP over copper or CXP over Fiber
- Bandwidth up to CXP-12 (12.5 Gbit/s) per connector
- Direct transfer: High-performance DMA (Direct Memory Access)
- I/O: Feature-rich set of up to 20 digital I/O lines
- Power: Support of Power over CoaXPress (PoCXP)
- Onboard memory: up to 2 GB for image buffering
- Compliancy: GenICam compliant
- Trigger: Area- and line-scan triggering capabilities
- Other: Extensive camera control functions, Memento Event Logging Tool
- Coaxlink Quad CXP-12 3D-LLE - variant with on-board laser line extraction for 3D profiling
- Operating system: Windows 7, 8.1, 10, 11 (64-bit), Linux 64-bit and MacOS 64-bit
- Software: GenICam compatible, support for GenApi and GenTL, comprehensive SDK environment (Coaxlink driver), supports Common Vision Blox (CVB)
- Cable: Long cable support for Coaxlink CXP-6 and CXP-12
- Operating temperature: 0 to +55 °C
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Interface/Standard | Inputs | Connectors | Number of cameras (max) | Onboard processing | Manufacturer | Dimensions (LxH, mm) | Onboard memory (MB) |
|---|---|---|---|---|---|---|---|---|
| CoaXPress | CXP-1; CXP-2; CXP-3; CXP-5; CXP-6 | 4* DIN 1.0/2.3 | 4 | yes | Euresys | 167.64 x 111.15 | 1024 | |
| CoaXPress | CXP-1; CXP-2; CXP-3; CXP-5; CXP-6 | 8* DIN 1.0/2.3 | 8 | yes | Euresys | 167.64 x 111.15 | 2048 | |
| CoaXPress | CXP-1; CXP-2; CXP-3; CXP-5; CXP-6 | 4* DIN 1.0/2.3 | 4 | yes | Euresys | 167.64 x 111.15 | 1024 | |
| CoaXPress | CXP-1; CXP-10; CXP-12; CXP-2; CXP-3; CXP-5; CXP-6 | 1* HD-BNC | 1 | yes | Euresys | 167.6 x 68.9 | 512 | |
| CoaXPress | CXP-1; CXP-10; CXP-12; CXP-2; CXP-3; CXP-5; CXP-6 | 2* HD-BNC | 2 | yes | Euresys | 167.6 x 68.9 | 512 | |

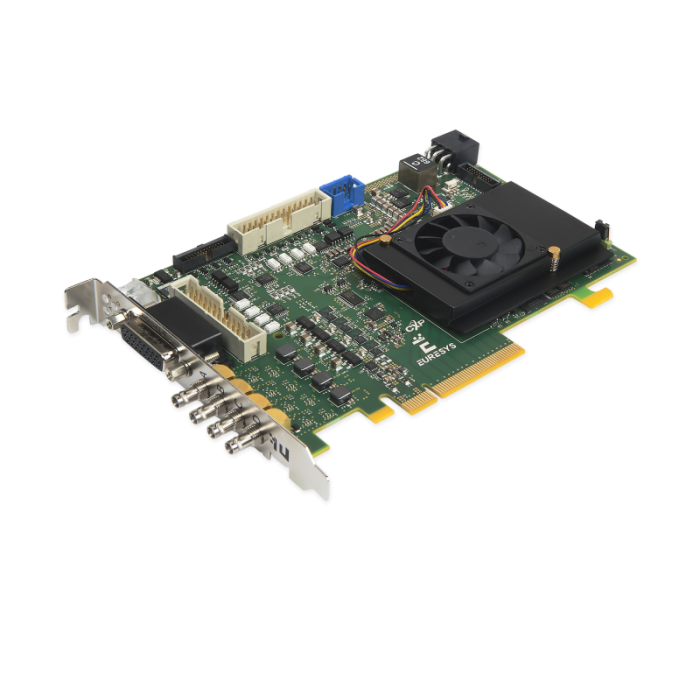

| CoaXPress | CXP-1; CXP-10; CXP-12; CXP-2; CXP-3; CXP-5; CXP-6 | 4* HD-BNC | 4 | yes | Euresys | 167.64 x 111.15 | N/A | |
| CoaXPress | CXP-6 | 4* HD-BNC | 4 | yes | Euresys | N/A | N/A | |

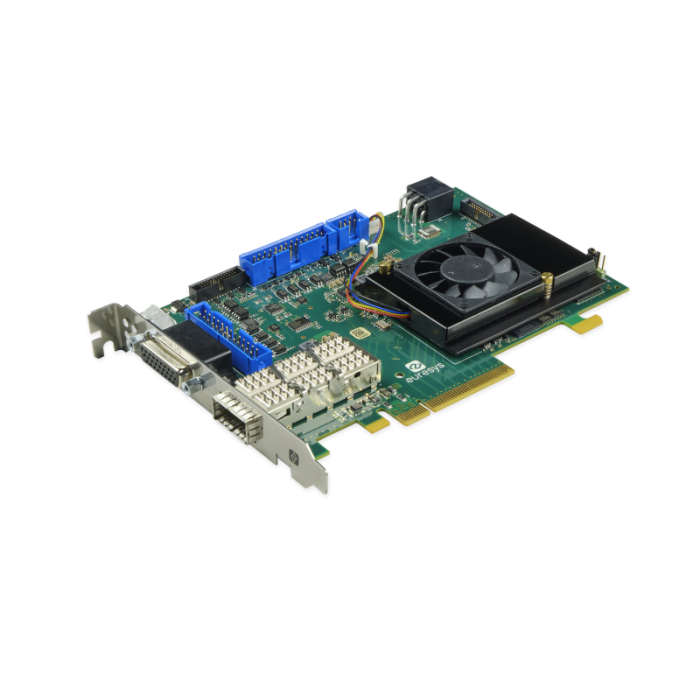

| CoaXPress | CXP-10; CXP-12; CXP-4; CXP-5; CXP-6 | 1*QSFP+ | 4 | yes | Euresys | N/A | N/A | |
| CoaXPress | CXP-1; CXP-10; CXP-12; CXP-2; CXP-3; CXP-5; CXP-6 | 4* HD-BNC | 4 | yes | Euresys | 167.64 x 111.15 | 4096 | |
| CoaXPress | CXP-1; CXP-10; CXP-12; CXP-2; CXP-3; CXP-5; CXP-6 | 8* HD-BNC | 4 | yes | Euresys | 167.64 x 111.15 | 4096 | |
| CoaXPress | CXP-1; CXP-10; CXP-12; CXP-2; CXP-3; CXP-4; CXP-5; CXP-6 | 1*QSFP+; 4* HD-BNC | 4 | no | Euresys | N/A | N/A | |
| CoaXPress | CXP-1; CXP-10; CXP-12; CXP-2; CXP-3; CXP-5; CXP-6 | 4* HD-BNC | 4 | yes | Euresys | 167.64 x 111.15 | 4096 | |
| CoaXPress | CXP-31 | 1*QSFP28 | 1 | yes | Euresys | 167.64 x 111.15 | 8192 |
Warum Euresys - Coaxlink?
Acquire images from the fastest and highest resolution cameras
The Euresys frame grabbers have the highest data acquisition rates in the industry with up to 50 Gbit/s (5,000 MB/s) bandwidth from camera to host PC memory.
Robust connectors for reliable connections
The Coaxlink CXP-6 uses DIN 1.0/2.3 connectors with push/pull latching system, while the Coaxlink CXP-12 uses Micro-BNC (HD-BNC) connectors with trusted push and turn, bayonet-style positive lock, for quick and easy connects and disconnects.
CustomLogic Design
CustomLogic is an FPGA design kit enabling the design and upload of FPGA code to a Coaxlink board. It is compatible with the Coaxlink Octo and Coaxlink Quad CXP-12 for which up to 70 % of their Xilinx Kintex. Ultrascale XCKU035 FPGA resources are available. The design phase uses the Xilinx Vivado development tools (not provided). Using CustomLogic does not require any additional hardware.
