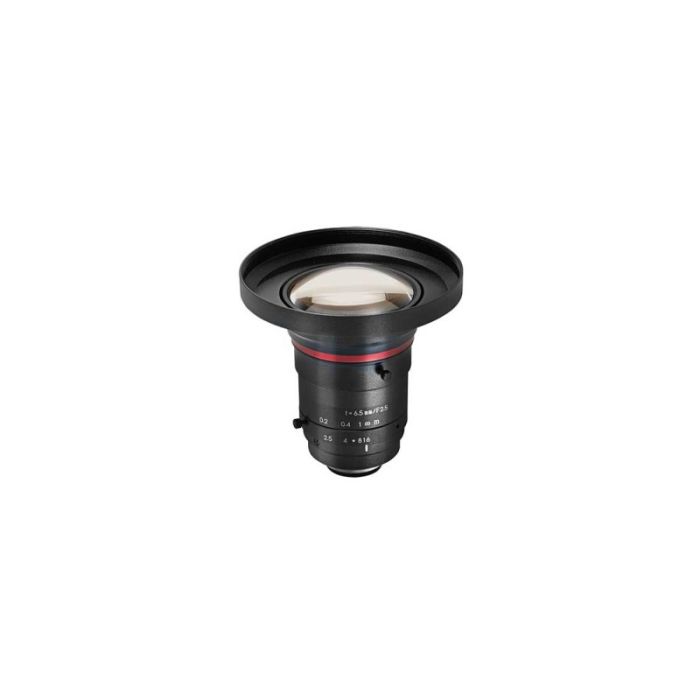

KOWA - LM-FC24M
Ultra high resolution lens series for 24MP cameras with a chip size of 1.1" and optimised for Sony image sensors
Key Features
- Image circle: 17,6
- Pixel size: for sensors with a pixel size from 2.5 μm
- Suitable for IMX183, IMX530/540, IMX531/541, IMX253/304 sensors and many more
- Sensor resolution: 24 megapixel
- C-Mount industrial lenses
- Focal lengths available from 6,5 mm to 100 mm
- Floating mechanism to eliminate optical aberrations
- Broadband coating: transmission from VIS to NIR
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Focal length (mm) | Sensor format | Sensor size diagonal (mm) | Camera mount (optics) | Min. pixel size | Aperture | M.O.D. (mm) | Wavelength range | Filter thread | Magnification (max) | Manufacturer | Resolution |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 1.8 - F 16 | 100 | VIS-NIR | M35.5 x 0.5 | N/A | Kowa | 24 | |
| 6.5 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 2.5 - F 16 | 100 | VIS-NIR | M82 x 0.75 | N/A | Kowa | 24 | |
| 8.5 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 2.5 - F 16 | 100 | VIS-NIR | M62 x 0.75 | N/A | Kowa | 24 | |
| 12 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 1.8 - F 16 | 100 | VIS-NIR | M49 x 0.75 | N/A | Kowa | 24 | |
| 16 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 1.8 - F 16 | 100 | VIS-NIR | M35.5 x 0.5 | N/A | Kowa | 24 | |
| 35 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 1.8 - F 16 | 200 | VIS-NIR | M40.5 x 0.5 | N/A | Kowa | 24 | |
| 50 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 1.8 - F 16 | 200 | VIS-NIR | M40.5 x 0.5 | N/A | Kowa | 24 | |
| 75 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 2.5 - F 16 | 150 | VIS-NIR | M34 x 0.5 | N/A | Kowa | 24 | |
| 100 | 1.1" | 17.6 | C-Mount | 2.5 µm | F 3.5 | 150 | VIS-NIR | M34 x 0.5 | N/A | Kowa | 24 |
Warum KOWA - LM-FC24M?
Large image circle up to 1.1"
The 1.1" image circle enables numerous camera combinations with current sensors from Sony, AMS or Gpixel.
High resolution of smallest details
With their excellent MTF, the lenses are also designed for camera sensors with a pixel size of only 2.5 µm.
Broadband coating to prevent reflection
Broadband coating effectively reduces glare and reflection effects and provides high transmission from the visible to the near infrared wavelength.
Floating mechanism
Floating mechanism to eliminate optical aberrations
