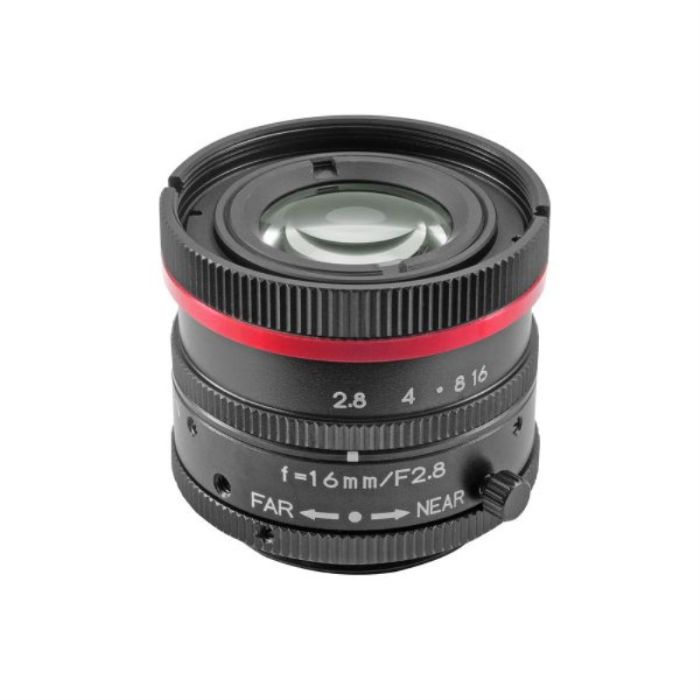

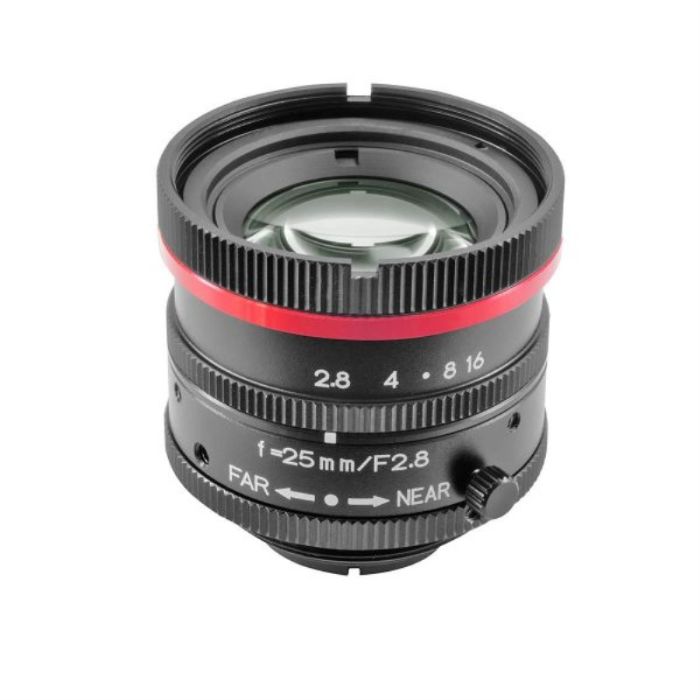

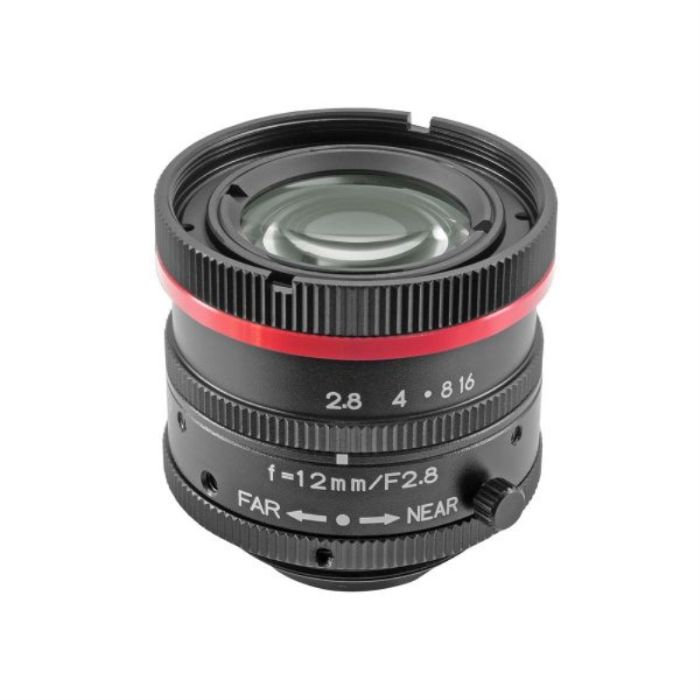

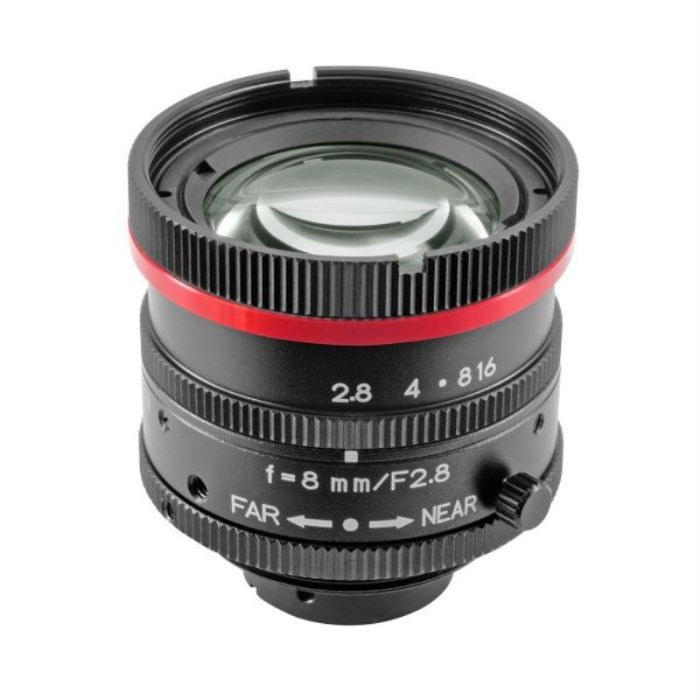

KOWA - LM-JC5MC-WP
Ultra compact lenses with ruggedized, waterproof body.
Key Features
- Waterproof
- Focal length: 8 mm, 12 mm, 16 mm, 25 mm
- Sensor size: 2/3”
- Pixel size: 3,45 µm
- Iris control: Manual
- Aperture: F2,8
- Lens type: Fixed Focal Lens
- Wavelength range: VIS (380nm - 780nm)
- Focusing range (m): 0,2 - ∞
- Focus control: Manual
- Resolution: 5MP
- Length: 27 mm
- Diameter: 33 mm
- C-mount
- Filter Size: M30,5 x 0,5 mm
- Maximum weight: 50 g
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Focal length (mm) | Sensor format | Sensor size diagonal (mm) | Camera mount (optics) | Min. pixel size | Aperture | M.O.D. (mm) | Wavelength range | Filter thread | Magnification (max) | Manufacturer | Resolution |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 2/3" | 11 | C-Mount | 3.45 µm | F 2.8 | 150 | VIS-NIR | M30.5 x 0.5 | N/A | Kowa | 5.0 | |
| 12 | 2/3" | 11 | C-Mount | 3.45 µm | F 2.8 | 200 | VIS-NIR | M30.5 x 0.5 | N/A | Kowa | 5.0 | |
| 16 | 2/3" | 11 | C-Mount | 3.45 µm | F 2.8 | 200 | VIS-NIR | M30.5 x 0.5 | N/A | Kowa | 5.0 | |
| 25 | 2/3" | 11 | C-Mount | 3.45 µm | F 2.8 | 200 | VIS-NIR | M30.5 x 0.5 | N/A | Kowa | 5.0 |
