KOWA - LM-XC
High resolution lens with a pixel size of 3 µm
Key Features
- Sensor size: up to 4/3"
- Focal length: 8.5 mm to 50 mm
- Aperture: F2 to F2.8
- MOD: 100 mm
- Filter thread: M37.5 x 0.5 to M72 x 0.75
- Camera mount: C-mount
- Dimensions: Ø 45.5 x 16.5 mm to Ø 57 x 85 mm
- Weight: 210 g to 270 g
- Miscellaneous: aperture and focus with locking screws
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Focal length (mm) | Sensor format | Sensor size diagonal (mm) | Camera mount (optics) | Min. pixel size | Aperture | M.O.D. (mm) | Wavelength range | Filter thread | Magnification (max) | Manufacturer | Resolution |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

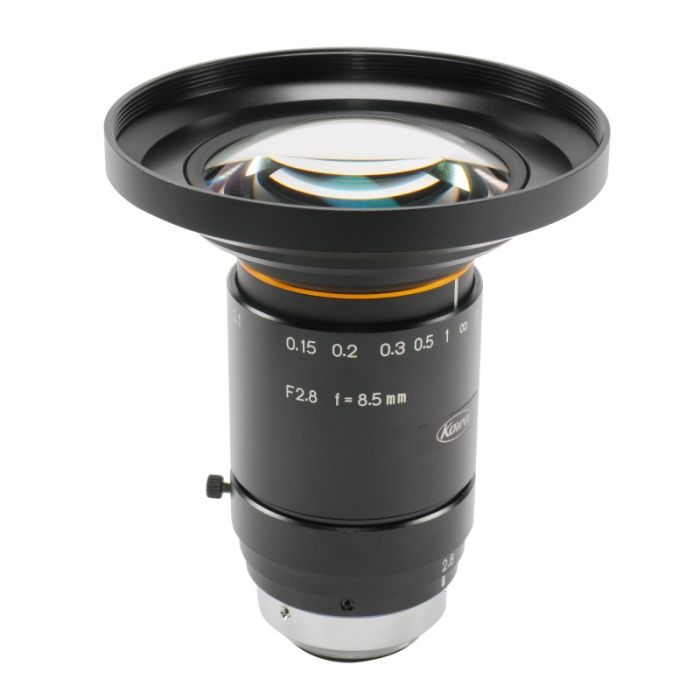

| 8.5 | 4/3" | 23 | C-Mount | 3 µm | F 2 | 100 | Visible | M72 x 0.75 | 0.080 | Kowa | 8.0 | |
| 12 | 4/3" | 23 | C-Mount | 3 µm | F 2 | 100 | Visible | M55 x 0.75 | 0.100 | Kowa | 8.0 | |

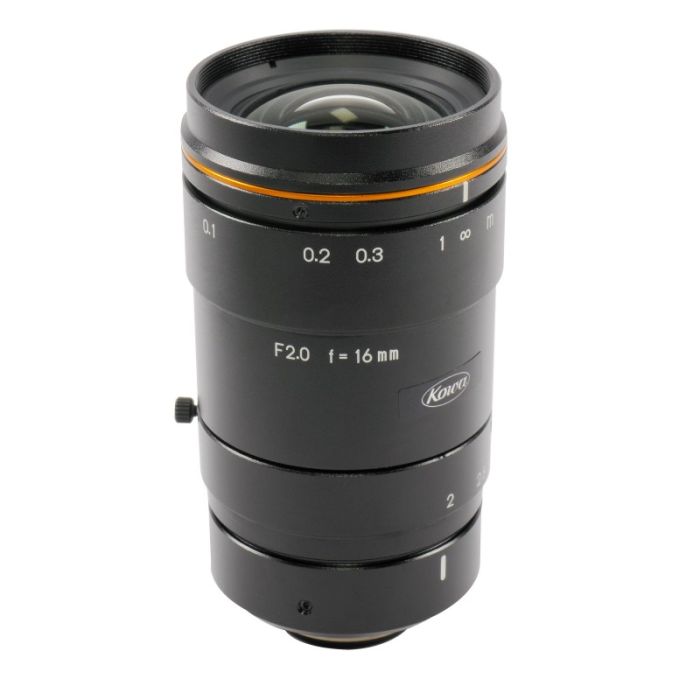

| 16 | 4/3" | 23 | C-Mount | 3 µm | F 2 | 100 | Visible | M40.5 x 0.5 | 0.140 | Kowa | 8.0 | |

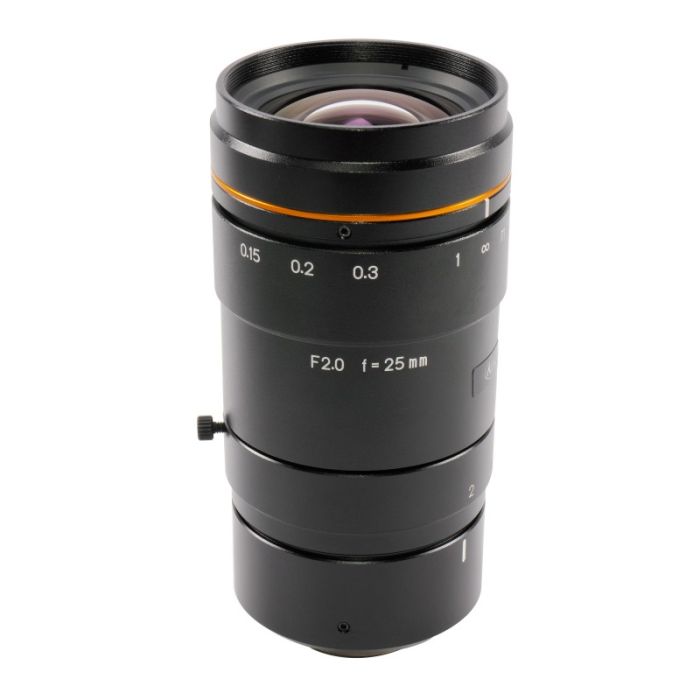

| 25 | 4/3" | 23 | C-Mount | 3 µm | F 2 | 150 | Visible | M40.5 x 0.5 | 0.150 | Kowa | 8.0 | |
| 35 | 4/3" | 23 | C-Mount | 3 µm | F 2 | 200 | Visible | M37.5 x 0.5 | 0.180 | Kowa | 8.0 | |

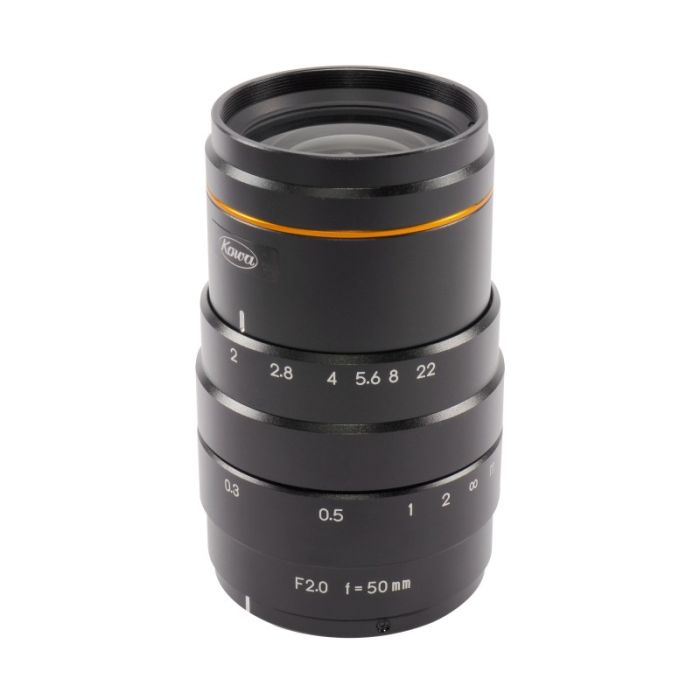

| 50 | 4/3" | 23 | C-Mount | 3 µm | F 2 | 300 | Visible | M37.5 x 0.5 | 0.180 | Kowa | 8.0 |
