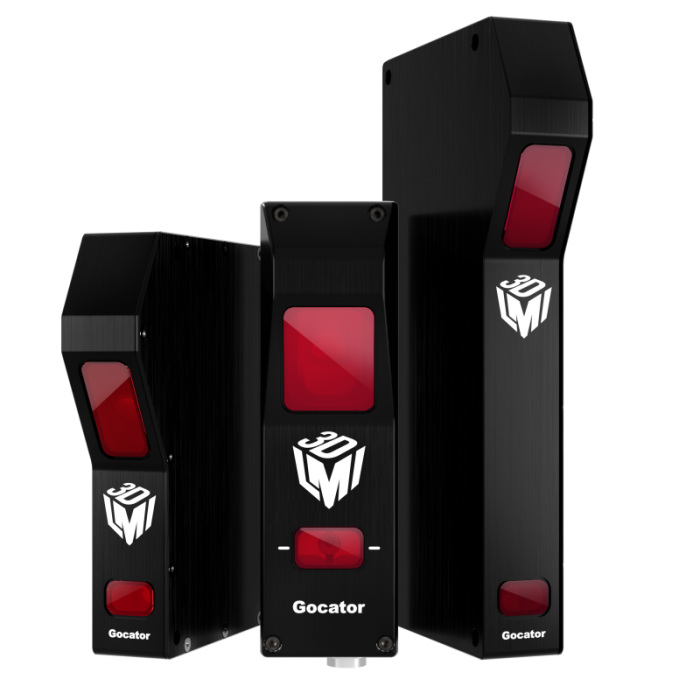

LMI - Gocator 1300
Smart displacement sensors for high speed distance measuring.
Key Features
- Interface: Gigabit Ethernet
- Inputs: differential encoder, laser safety enable, trigger
- Outputs: 2x digital output, RS485 serial, selcom serial, 1x analogue output (4-20mA)
- Input voltage (power): +24 to +48 VDC (13 Watts); ripple +/-10%
- Housing: gasketed aluminium enclosure, IP67
- Operating temperature: 0 to 50 °C
- Software: open source SDK and GenTL driver for working with 3rd party imaging software (e.g. Common Vision Blox, Sherlock)
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Resolution Horizontal (Px) | Interface | Interface configuration | LED risk group | Lens mount | Manufacturer | Pixel size (µm) | Scan type | Sensor format | Sensor size diagonal (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 149 | 120 | 30 | N/A | Gigabit Ethernet | N/A | 3 | N/A | LMI Technologies | N/A | laser triangulation | N/A | N/A | 0.750 | |
| 149 | 120 | 30 | N/A | Gigabit Ethernet | N/A | 3 | N/A | LMI Technologies | N/A | laser triangulation | N/A | N/A | 0.750 | |
| 149 | 120 | 30 | N/A | Gigabit Ethernet | N/A | 3 | N/A | LMI Technologies | N/A | laser triangulation | N/A | N/A | 0.750 | |
| 220 | 120 | 30 | N/A | Gigabit Ethernet | N/A | 3 | N/A | LMI Technologies | N/A | laser triangulation | N/A | N/A | 1.000 | |
| 120 | 220 | 49 | N/A | Gigabit Ethernet | N/A | 3 | N/A | LMI Technologies | N/A | laser triangulation | N/A | N/A | 0.750 | |
| 277 | 120 | 30 | N/A | Gigabit Ethernet | N/A | 3 | N/A | LMI Technologies | N/A | laser triangulation | N/A | N/A | 1.250 | |
| 149 | 120 | 30 | N/A | Gigabit Ethernet | N/A | 3 | N/A | LMI Technologies | N/A | laser triangulation | N/A | N/A | 0.750 | |
| 149 | 120 | 30 | N/A | Gigabit Ethernet | N/A | 3 | N/A | LMI Technologies | N/A | laser triangulation | N/A | N/A | 0.750 | |
| 149 | 120 | 30 | N/A | Gigabit Ethernet | N/A | 3 | N/A | LMI Technologies | N/A | laser triangulation | N/A | N/A | 0.750 | |
| 149 | 120 | 30 | N/A | Gigabit Ethernet | N/A | 3 | N/A | LMI Technologies | N/A | laser triangulation | N/A | N/A | 0.750 | |
| 149 | 120 | 30 | N/A | Gigabit Ethernet | N/A | 3 | N/A | LMI Technologies | N/A | laser triangulation | N/A | N/A | 0.750 | |
| 120 | 220 | 49 | N/A | Gigabit Ethernet | N/A | 3 | N/A | LMI Technologies | N/A | laser triangulation | N/A | N/A | 0.750 |
Benötigen Sie weitere Informationen?
Fragen Sie unsere Experten, um persönliche Empfehlungen zu bekommen.
