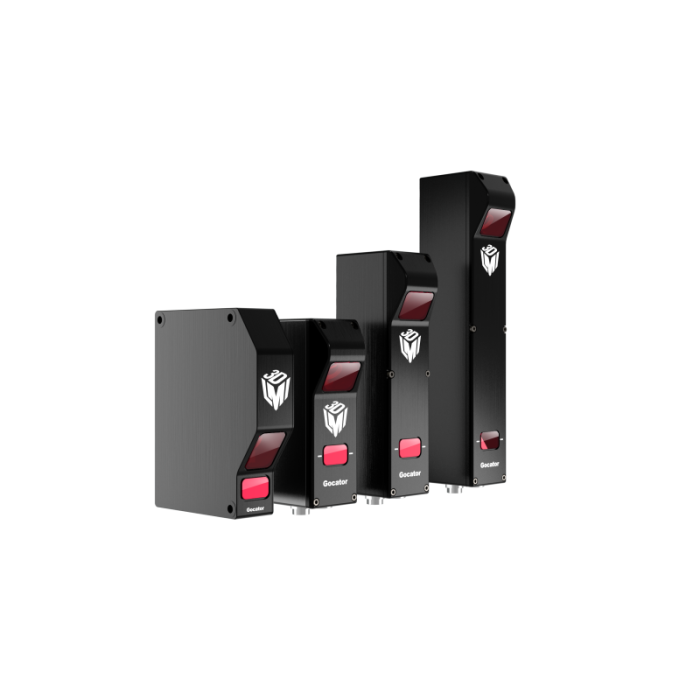

LMI - Gocator 2300

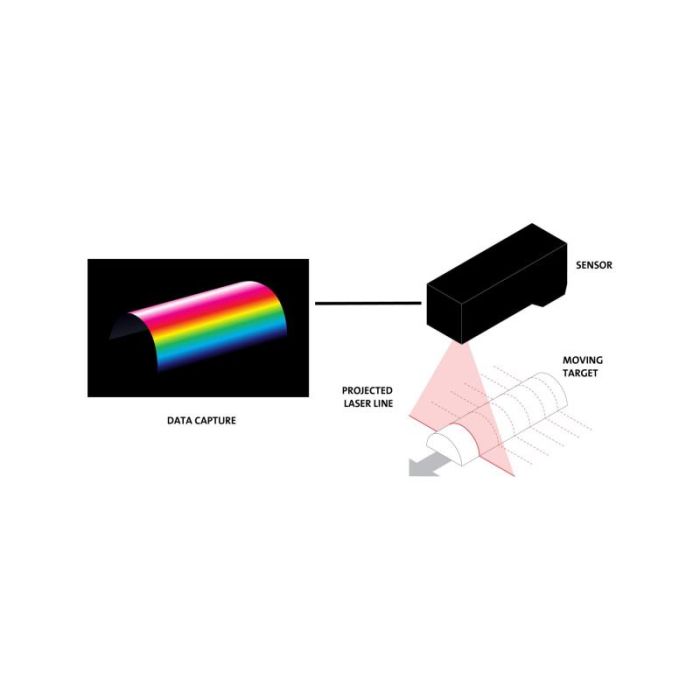

A robust smart sensor for high speed, high volume, inline 3D inspection of moving parts

Key Features

  • Interface: Gigabit Ethernet
  • Inputs: differential encoder, laser safety enable, trigger
  • Outputs: 2x digital output, RS-485 serial, selcom serial, 1x analogue output (4-20 mA)
  • Input voltage (power): +24 to +48 VDC (13 watts); ripple +/- 10%
  • Housing: gasketed aluminium enclosure, IP67
  • Operating temperature: 0 to 50 °C
  • Software: browser-based GUI and open source SDK for configuration and real-time 3D visualisation.

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

Bis
Bis
Bis
Bis
Produktname Scan type Manufacturer Dimension (depth, mm) Dimension (height, mm) Dimension (width, mm) Resolution Horizontal (Px) Interface LED risk group Lens mount Pixel size (µm) Sensor format Sensor size diagonal (mm) Weight (kg)
LMI GOCATOR 2370-3B
 laser triangulation LMI Technologies 272 75 49 N/A Gigabit Ethernet N/A None N/A N/A N/A 1.300
LMI GOCATOR 2320-2-REVD
 laser triangulation LMI Technologies 35 149.5 120 N/A Gigabit Ethernet N/A N/A N/A N/A N/A 0.800
LMI GOCATOR 2320-3R-REVD
 laser triangulation LMI Technologies 35 149.5 120 N/A Gigabit Ethernet N/A None N/A N/A N/A 0.800
LMI GOCATOR 2330-2-REVD
 laser triangulation LMI Technologies 49 142 75 N/A Gigabit Ethernet N/A None N/A N/A N/A 0.740
LMI GOCATOR 2330-3R-REVD
 laser triangulation LMI Technologies 49 142 75 N/A Gigabit Ethernet N/A None N/A N/A N/A 0.740
LMI GOCATOR 2340-2-REVD
 laser triangulation LMI Technologies 272 75 49 N/A Gigabit Ethernet N/A None N/A N/A N/A 0.940
LMI GOCATOR 2340-3R-REVD
 laser triangulation LMI Technologies 272 75 49 N/A Gigabit Ethernet N/A None N/A N/A N/A 0.940
LMI GOCATOR 2350-2-REVD
 laser triangulation LMI Technologies 272 75 49 N/A Gigabit Ethernet N/A None N/A N/A N/A 1.300
LMI GOCATOR 2350-3R-REVD
 laser triangulation LMI Technologies 272 75 49 N/A Gigabit Ethernet N/A None N/A N/A N/A 1.300
LMI GOCATOR 2370-3R-REVD
 laser triangulation LMI Technologies 272 75 49 N/A Gigabit Ethernet N/A None N/A N/A N/A 1.300
LMI GOCATOR 2370-2-REVD
 laser triangulation LMI Technologies 272 75 49 N/A Gigabit Ethernet N/A None N/A N/A N/A 1.300
LMI GOCATOR 2380-3R-REVD
 laser triangulation LMI Technologies 272 75 49 N/A Gigabit Ethernet N/A None N/A N/A N/A 1.300
LMI GOCATOR 2380-2-REVD
 laser triangulation LMI Technologies 272 75 49 N/A Gigabit Ethernet N/A None N/A N/A N/A 1.300

Warum LMI - Gocator 2300?

Megapixel resolution

Gocator 2300 sensors measure micron level features leveraging megapixel resolution while maintaining large fields of view. The Gocator can now screen parts for very small defects, raising the bar for quality inspection.

Standalone and scalable

Single sensors do not require additional controllers, amplifiers or PCs. Gocator systems can effortlessly scale up to multiple sensors using LMI master hubs. Masters take care of power distribution, laser safety interlock, encoder and digital input handling, and microsecond synchronisation.

Compact and lightweight

The small footprint and less than 1500g weight make it ideal for fitting into tight spaces and mounting onto robotic arms, enabling the design of compact sensor solutions. Integration into existing systems with limited space for inspection components is simplified.
