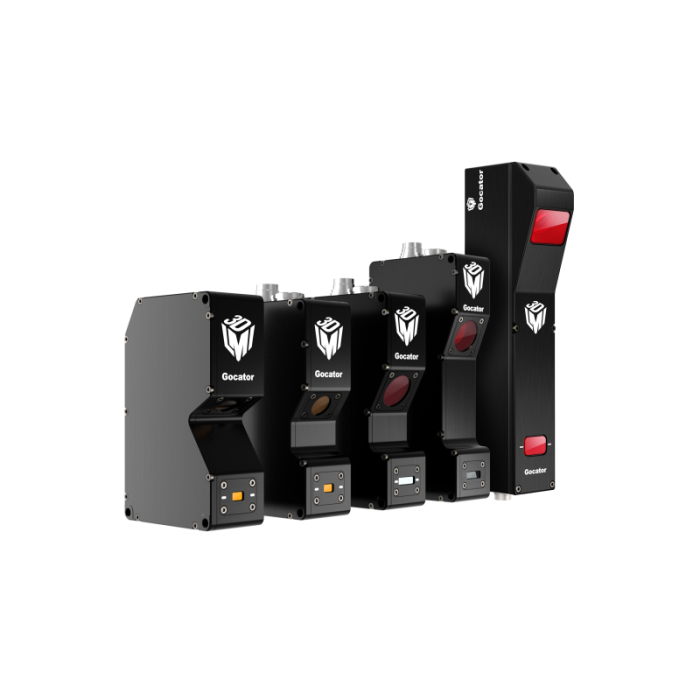

LMI - Gocator 2400
Designed for 100% 3D inspection of micro-features on small parts
Key Features
- Interface: Gigabit Ethernet
- Inputs: differential encoder, laser safety enable, trigger
- Outputs: 2x digital output, RS485 serial, selcom serial, 1x analogue output (4-20 mA)
- Input voltage (power): +24 to +48 VDC (13 watts); ripple +/- 10%
- Housing: gasketed aluminium enclosure, IP67
- Operating temperature: 0 to 50 °C
- Software: browser-based GUI and open source SDK for configuration and real-time 3D visualisation
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Resolution Horizontal (Px) | Interface | LED risk group | Lens mount | Manufacturer | Pixel size (µm) | Scan type | Sensor format | Sensor size diagonal (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 145 | 90 | N/A | Gigabit Ethernet | 3 | None | LMI Technologies | N/A | laser triangulation | N/A | N/A | 0.880 | |
| 44 | 145 | 90 | N/A | Gigabit Ethernet | N/A | None | LMI Technologies | N/A | laser triangulation | N/A | N/A | 0.880 | |
| 44 | 190 | 90 | N/A | Gigabit Ethernet | N/A | None | LMI Technologies | N/A | laser triangulation | N/A | N/A | 1.200 | |
| 44 | 190 | 90 | N/A | Gigabit Ethernet | N/A | None | LMI Technologies | N/A | laser triangulation | N/A | N/A | 1.200 | |
| 44 | 155 | 90 | N/A | Gigabit Ethernet | N/A | None | LMI Technologies | N/A | laser triangulation | N/A | N/A | 1.000 | |
| 44 | 155 | 90 | N/A | Gigabit Ethernet | N/A | None | LMI Technologies | N/A | laser triangulation | N/A | N/A | 1.000 | |
| 44 | 190 | 90 | N/A | Gigabit Ethernet | N/A | None | LMI Technologies | N/A | laser triangulation | N/A | N/A | 1.200 | |
| 44 | 155 | 90 | N/A | Gigabit Ethernet | N/A | None | LMI Technologies | N/A | laser triangulation | N/A | N/A | 1.000 | |
| 49 | 272 | 85 | N/A | Gigabit Ethernet | N/A | None | LMI Technologies | N/A | laser triangulation | N/A | N/A | 1.500 | |
| 49 | 272 | 85 | N/A | Gigabit Ethernet | N/A | None | LMI Technologies | N/A | laser triangulation | N/A | N/A | 1.500 |
Warum LMI - Gocator 2400?
Micron level measurements
Measure micron level features with the 2400’s 2 megapixel camera and large field of view. Scan parts for even the smallest defects and achieve superior results for 3D quality inspection.

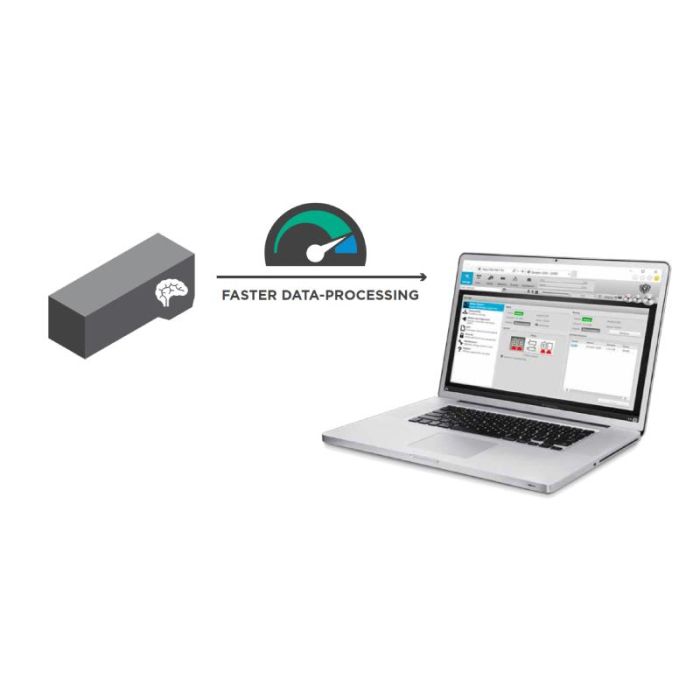

Inspect with speed and precision
Faster scan and acquisition speeds empower you to speed up your inline process and use higher resolutions. It also means multiple exposures can be used to accurately measure high-contrast targets. With an X resolution down to 6 µm, you can generate data points even on very tiny edges or narrow gaps.
Leverage a greater measurement range
Accomplish more with fewer sensors, while still capturing the finest surface and edge details of electronics and small parts with the 2400’s large field of view. Its deep measurement range lets you handle a wider variety of parts at production speed.
Easy to integrate
A small footprint and lightweight body make this sensor ideal for fitting into tight spaces and mounting on robotic arms.
