Neousys - POC-SERIES
The Neousys POC series of ultra-compact fanless industrial PCs are designed for space-constrained industrial applications. They operate over a wide temperature range from -25°C to 70°C and accept 8~35V wide range DC input.
The models in the POC series vary in computing power and camera interfaces to provide optimum performance for any application.
Key Features
- Processor: Intel Atom x7425E, Elkhart Lake Atom, Intel Core i3 or AMD Ryzen
- Memory: Up to 32 GB
- Interface: USB3.0, USB 3.1, USB3.2, 1GbE, 2,5GbE (depending on model)
- Storage: M.2 2280 M key SATA/NVMe interface
- Display: Dual DP display outputs
- Mounting: DIN mount design with front I/O access
- Operating temperature: -25 °C to 70 °C
- Miscellaneous: MezIO compatible
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Manufacturer | PC: I/O Interface | PC: Processor type | PC: Product type | PC: RAM (GB) | PC: RAM max. (GB) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 118 | 176 | 81 | Neousys | Audio; DisplayPort; Gigabit Ethernet; PoE+; RS-232; RS-422; RS-485; USB 3.1 Gen 1; VGA | AMD Ryzen embedded V1807B | ultra-compact | 32 | 32 | 1.400 | |
| 116 | 176 | 64 | Neousys | Audio; DisplayPort; Gigabit Ethernet; PoE+; RS-232; RS-422; RS-485; USB 3.1 Gen 1; VGA | AMD Ryzen embedded V1605B | ultra-compact | 32 | 32 | 1.200 | |
| 108 | 153 | 56 | Neousys | 2.5 Gigabit Ethernet; DisplayPort; PoE+; RS-232; RS-422; RS-485; USB 2.0; USB 3.1 Gen 1 | Intel Atom | ultra-compact | 32 | 32 | 0.960 | |
| 108 | 153 | 56 | Neousys | 2.5 Gigabit Ethernet; DisplayPort; RS-232; RS-422; RS-485; USB 2.0; USB 3.1 Gen 1 | Intel Atom | ultra-compact | 32 | 32 | 0.960 | |
| 89 | 112 | 52 | Neousys | DisplayPort; Gigabit Ethernet; RS-232; RS-422; RS-485; USB 2.0; USB 3.1 Gen 1 | Intel Atom | extreme ultra-compact | 32 | 32 | 0.600 | |
| 89 | 112 | 52 | Neousys | Digital Input; Digital Output; DisplayPort; Gigabit Ethernet; RS-232; RS-422; RS-485; USB 2.0; USB 3.1 Gen 1 | Intel Atom | ultra-compact | 32 | 32 | 0.600 | |
| N/A | N/A | N/A | Neousys | 4x Gigabit Ethernet; HDMI; PoE+; RS-232; RS-422; RS-485; USB 3.1 Gen 2 | Intel Alder Lade Core | ultra-compact | 32 | N/A | N/A | |
| 170 | 53 | 160 | Neousys | 2.5 Gigabit Ethernet; CAN; HDMI; M.2 Mkey 2280; RS-232; RS-422; RS-485; USB 3.2 Gen2 Typ A | Intel Alder Lade Core | ultra-compact | 8 | 16 | 1.800 | |
| 116 | 176 | 64 | Neousys | 4x Gigabit Ethernet; HDMI; PoE+; RS-232; RS-422; RS-485; USB 3.1 Gen 2 | AMD Ryzen Pro 8640U | ultra-compact | N/A | 32 | 1.200 | |
| 108 | 153 | 56 | Neousys | 2.5 Gigabit Ethernet; HDMI; M.2 Mkey 2280; PoE+; RS-232; RS-422; RS-485; USB 3.2 Gen1 Typ A; USB 3.2 Gen2 Typ A | Intel Atom | ultra-compact | 8 | 16 | 0.980 |
Warum Neousys - POC-SERIES?
Ultra-compact design

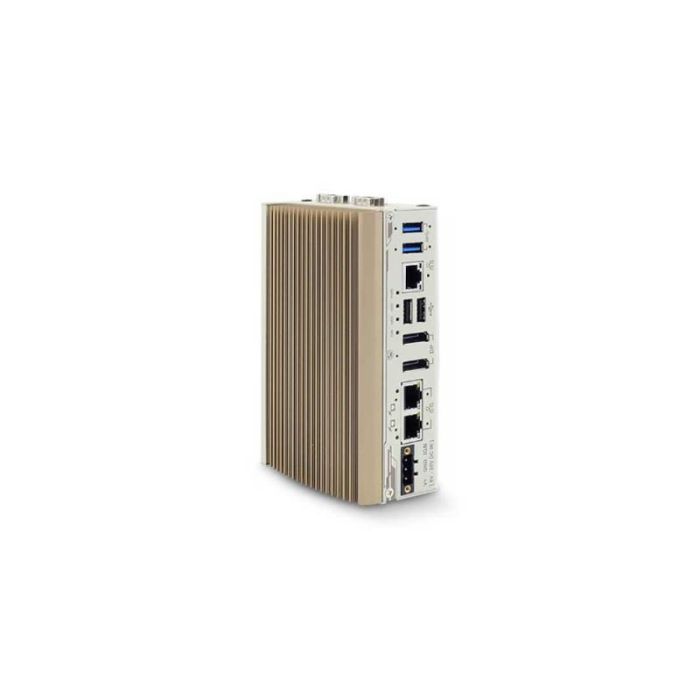

POC-400 features an ultra-compact design measuring only 56 x 108 x 153 mm, which makes it easy to fit into tight spaces. The system comes with a DIN-rail mounting chassis and an abundance of front-access I/O interfaces.
Performance boost
The POC-400 uses the latest Intel Elkhart Lake platform Atom x6425E 4-core CPU, which can deliver 1.8x CPU and 2x GPU performance improvement compared to the previous generation.
Higher data bandwidth
Featuring three 2.5GBASE-T Ethernet ports with IEEE 802.3 PoE+ capability, they provide higher data bandwidth for devices such as NBASE-T cameras and is backward-compatible with 1000/100/10 Mbps Ethernet. It also has two 4K DisplayPort, 2x USB3.1 Gen1, 2x USB 2.0 and COM ports for general industrial applications.
Feature upgrade
Supporting Neousys' proprietary MezIO interface for function expansion, you can add functions such as isolated DIO, RS-232/422/485, ignition control and 4G/ 5G by installing a MezIO module. Moreover, POC-400 comes with an internal M.2 E key socket for a Google TPU or an Intel Movidius VPU module to transform it into a lightweight AI inference platform at the edge.
