Schneider-Kreuznach - AQUAMARINE

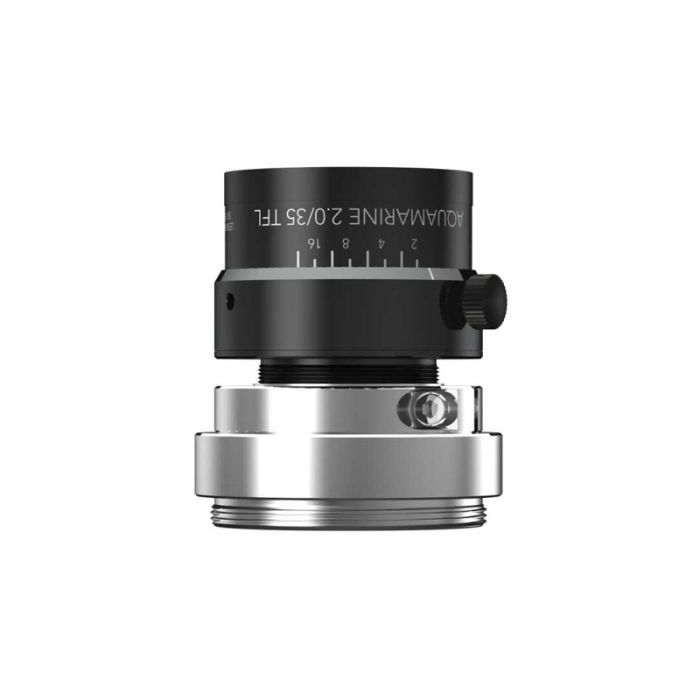

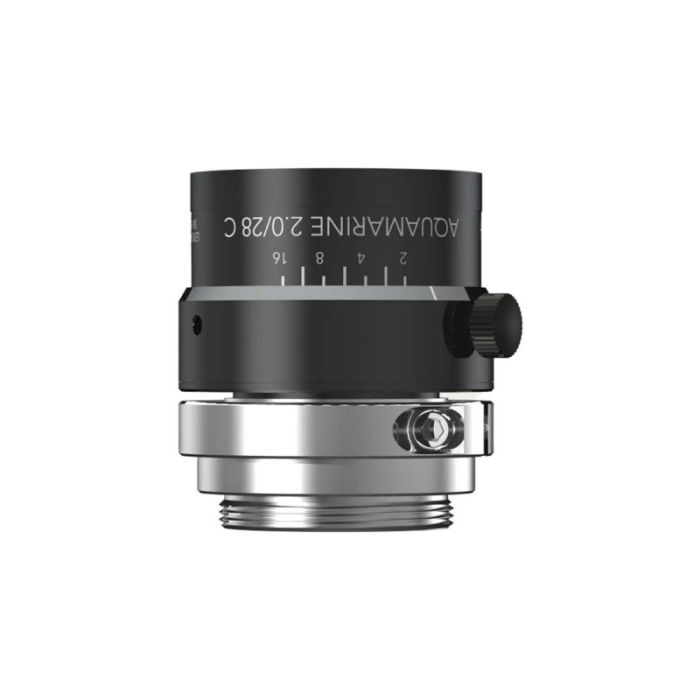

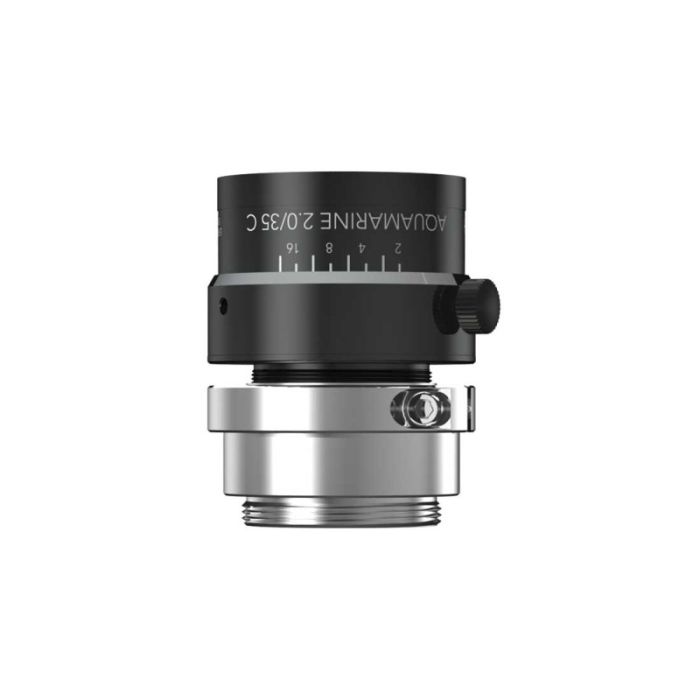

High-resolution 1.3” lenses for the VIS and NIR range available with different mounts and focal lengths as well as ruggedised models and motorised iris.
Key Features
- Maximum image circle: 24 mm
- Spectral range: 400 nm to 1000 nm (VIS and NIR)
- Focal length: 28 mm, 35 mm
- Initial aperture: F2.0
- Filter thread: M30.5 x 0.5
- Interface: C-mount, TFL-mount

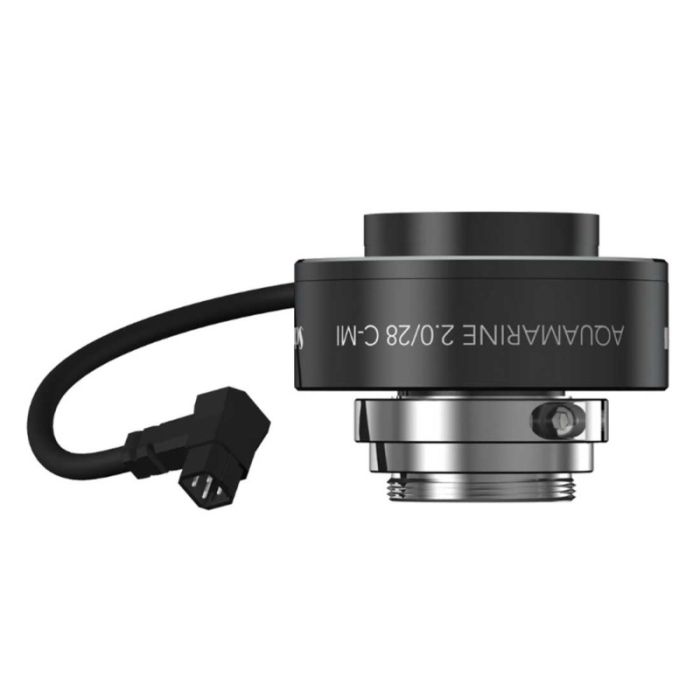

- Miscellaneous: Ruggedised version and motorised iris available for models with 28 mm focus length
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Aperture | Camera mount (optics) | Filter thread | Focal length (mm) | Magnification (max) | Manufacturer | Min. pixel size | M.O.D. (mm) | Resolution | Sensor format | Sensor size diagonal (mm) | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F 2 | C-Mount | M30.5 x 0.5 | 28 | 0.200 | Schneider Kreuznach | 3.5 µm | 130 | 3.0 - 5.0 | 1.3" | 24 | VIS-NIR | |
| F 2 | C-Mount | M30.5 x 0.5 | 28 | 0.200 | Schneider Kreuznach | 3.5 µm | 174 | 3.0 - 5.0 | 1.3" | 24 | VIS-NIR | |
| F 2 | C-Mount | M30.5 x 0.5 | 35 | 0.200 | Schneider Kreuznach | 3.5 µm | 183 | 3.0 - 5.0 | 1.3" | 24 | VIS-NIR | |
| F 2 | C-Mount | M30.5 x 0.5 | 28 | 0.200 | Schneider Kreuznach | N/A | 175 | 12k | 1.3" | 24 | Visible | |
| F 2 - F 16 | TFL-Mount | M30.5 x 0.5 | 28 | 0.200 | Schneider Kreuznach | N/A | 63 | 12k | 4/3" | 24 | VIS-NIR | |
| F 2 - F 22 | TFL-Mount | M30.5 x 0.5 | 35 | 0.200 | Schneider Kreuznach | N/A | 78 | 12k | 4/3" | 24 | VIS-NIR |
Warum Schneider-Kreuznach - AQUAMARINE?
Ideally suited for harsh environments
The AQUAMARINE lenses are compact and robust and therefore ideally suited for demanding imaging applications even in harsh environments. The 28 mm models come with a special ruggedisation which further increases the lens' mechanical stability.
Designed for the VIS and NIR range
With the special broadband AR coating, the AQUAMARINE lenses can be used either in the visible (400 to 700 nm) or in the NIR (700 to 1000 nm) range.
