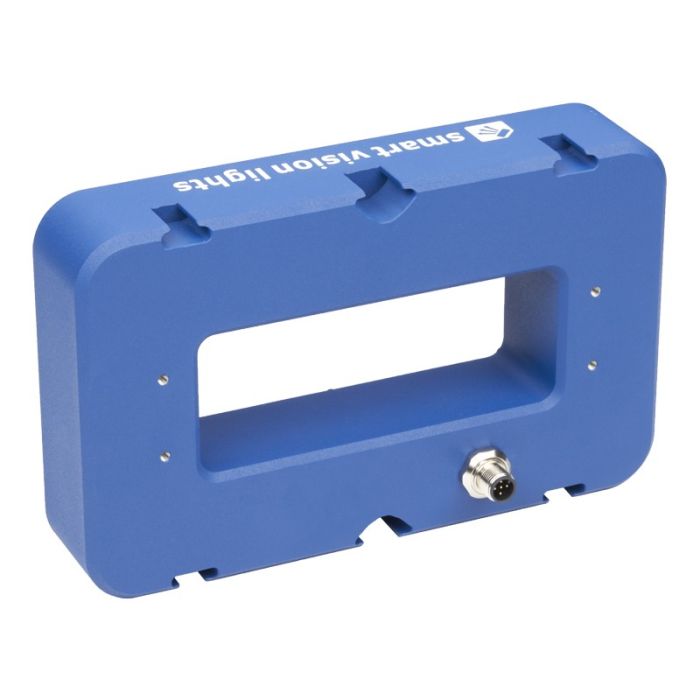

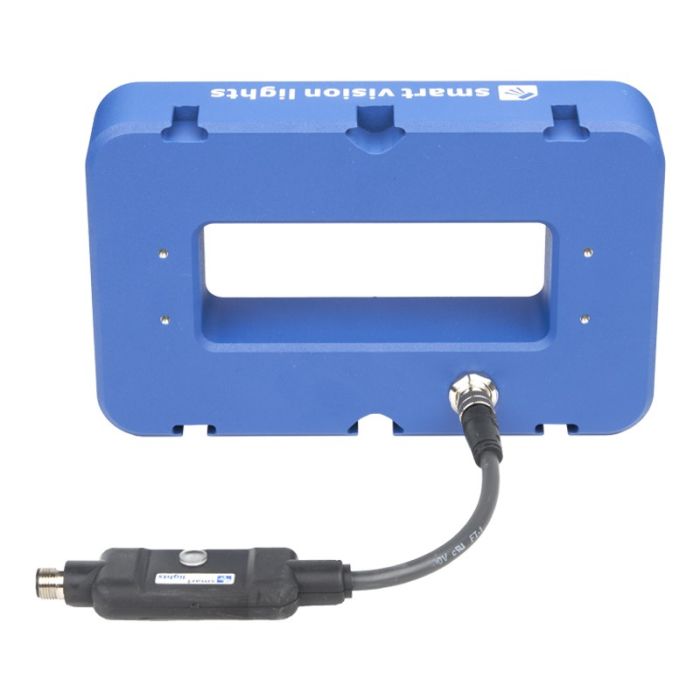

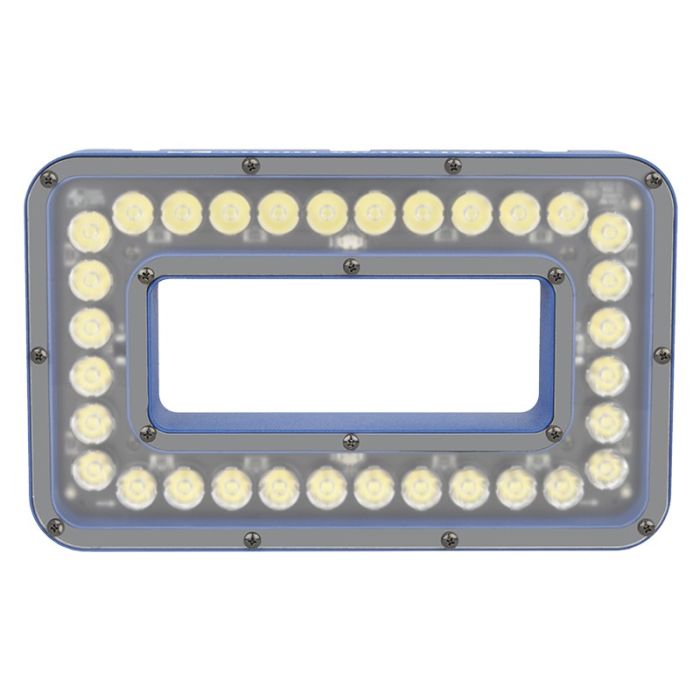

Smart Vision Lights - JWL225-MD
Intense light source designed to provide external illumination for machine vision or smart cameras where the built-in illumination is not enough.
Key Features
- IP Rating: IP65
- Working Distance: min. 300 mm - max.1500 mm
- Illumination Type: Bright Field, Direct Lighting
- Mode: Multi-Drive™
- SmartVisionLink: Compatible
- Wavelength: white, 470 nm (blue), 625 nm (red), 850 nm (IR)
- Lens Configuration: 10° (narrow), 14° (narrow standard), 30° (wide)
- Polariser possible
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Lighting technique | Lighting geometry | Light distribution | Light colour | Emitting surface width (mm) | Emitting surface outer diameter (mm) | Emitting surface inner diameter (mm) | Smart | Beam angle | Connectors | Dominant wavelength (nm) | Emitting surface height (mm) | Intensity control method | IP rating | LED risk group | Manufacturer | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| frontlight | ring light; square light | direct | Red | 227 | 227,5 | 145 | no | 10° | M12 5-pin A-coded | 625 | 56,5 | Multidrive | IP65 | 0 (exempt) | Smart Vision Lights | 1.500 | |
| frontlight | ring light; square light | direct | Red | 227 | 227,5 | 145 | no | 14° | M12 5-pin A-coded | 625 | 56,5 | Multidrive | IP65 | 0 (exempt) | Smart Vision Lights | 1.500 | |
| frontlight | ring light; square light | direct | White | 227 | 227,5 | 145 | no | 14° | M12 5-pin A-coded | 625 | 56,5 | Multidrive | IP65 | 1 | Smart Vision Lights | 1.500 | |
| frontlight | ring light; square light | direct | Red | 227 | 227,5 | 145 | no | 30° | M12 5-pin A-coded | 625 | 56,5 | Multidrive | IP65 | 0 (exempt) | Smart Vision Lights | 1.500 | |
| frontlight | ring light; square light | direct | White | 227 | 227,5 | 145 | no | 10° | M12 5-pin A-coded | 625 | 56,5 | Multidrive | IP65 | 1 | Smart Vision Lights | 1.500 | |
| frontlight | ring light; square light | direct | White | 227 | 227,5 | 145 | no | 30° | M12 5-pin A-coded | 625 | 56,5 | Multidrive | IP65 | 1 | Smart Vision Lights | 1.500 | |
| frontlight | ring light; square light | direct | White | 227 | 227,5 | 145 | no | 50° | M12 5-pin A-coded | 625 | 56,5 | Multidrive | IP65 | 1 | Smart Vision Lights | 1.500 | |
| frontlight | ring light; square light | direct | Blue | 227 | 227,5 | 145 | no | 14° | M12 5-pin A-coded | 625 | 56,5 | Multidrive | IP65 | 1 | Smart Vision Lights | 1.500 | |
| frontlight | ring light; square light | direct | IR | 227 | 227,5 | 145 | no | 14° | M12 5-pin A-coded | 850 | 56,5 | Multidrive | IP65 | 1 | Smart Vision Lights | 1.500 |
