Smart Vision Lights - LM Mini Linear Lights

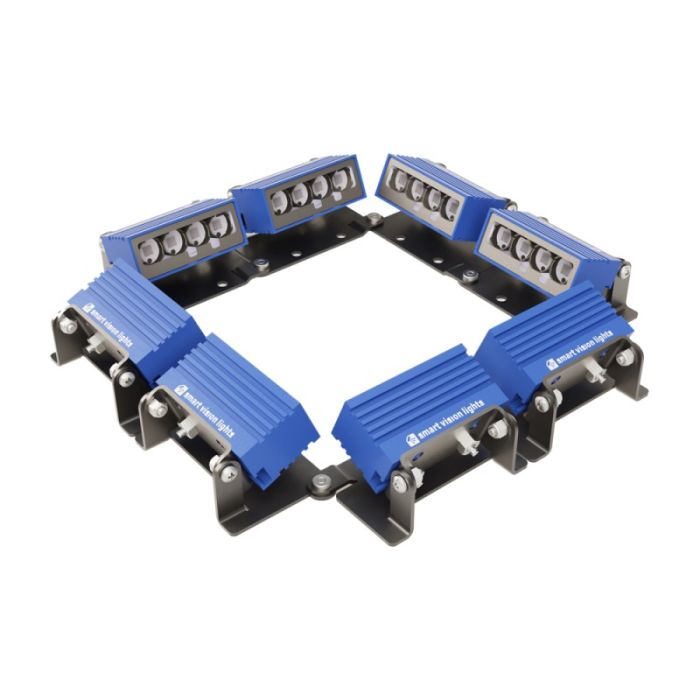

The extremely small and light-weight build of the smallest linear lights of Smart Vision Lights enables you to design very compact solutions. This simplifies the integration into existing systems where space restrictions for machine vision components apply.

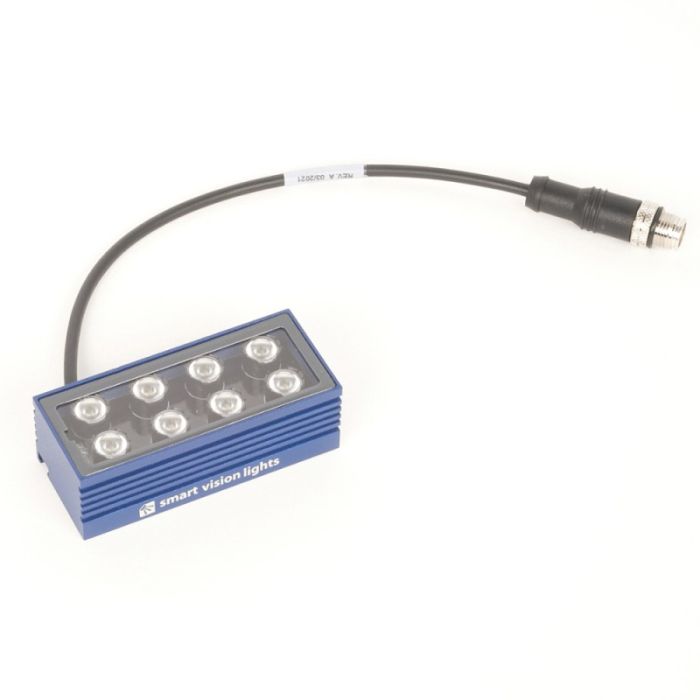

The IP65 rating permits the use in harsh environment without the need of additional housing. This reduces costs, but also allows a more flexible integration in the machine. The 5 pin M12 connector provides a stable and quick industry-grade connection.

Built-in multi-drive allows the light to work in continuous operation or overdrive mode. The 1-10 V analogue control line gives the user total control over intensity in the continuous mode. The user simply sets the product parameters to the maximum allowed intensity, according to the datasheet. The integrated driver makes it easy to trigger the illumination by using the strobe-out signal of the camera.

The mini linear light exists in a number of standard colours: white (6500 K), blue (470 nm), green (530 nm), red (625 nm) and IR (850 nm). Additional wavelengths are available upon request. Both sizes LM45 and LM75 come either equipped with a standard beam angle (40°) or the wide beam angle (80°) lens.
