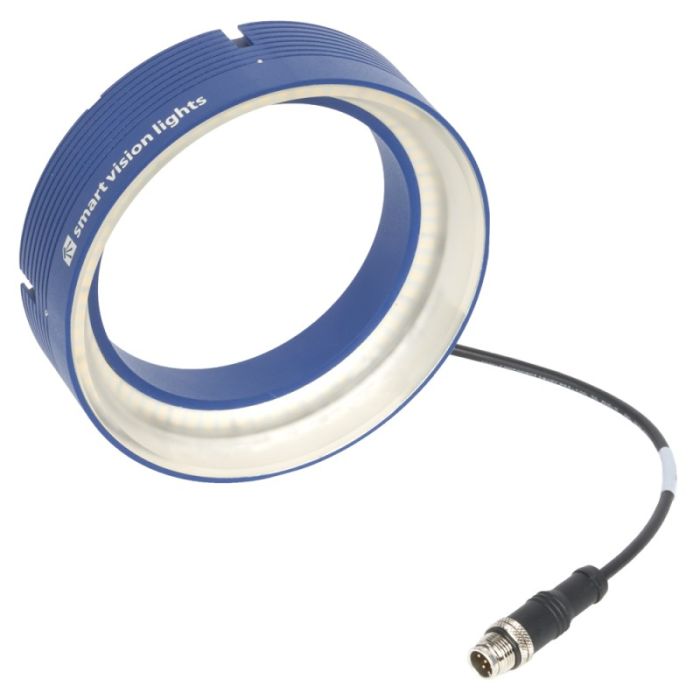

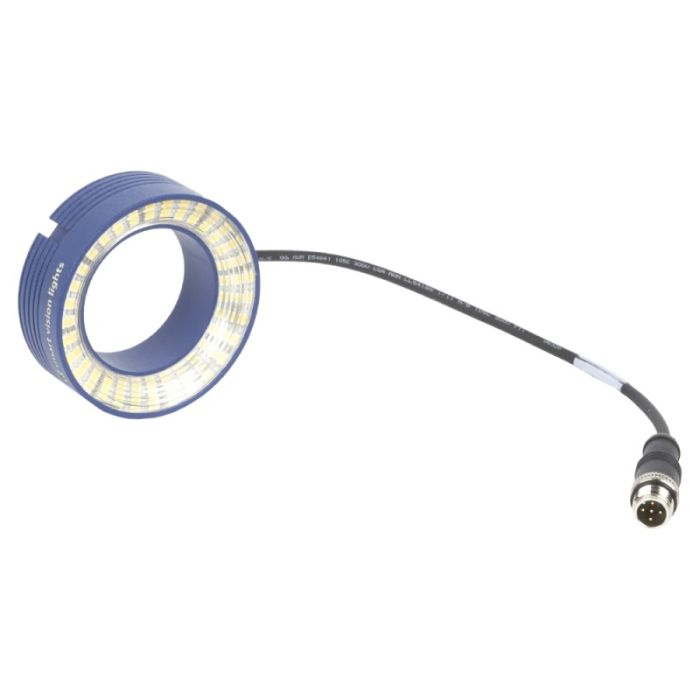

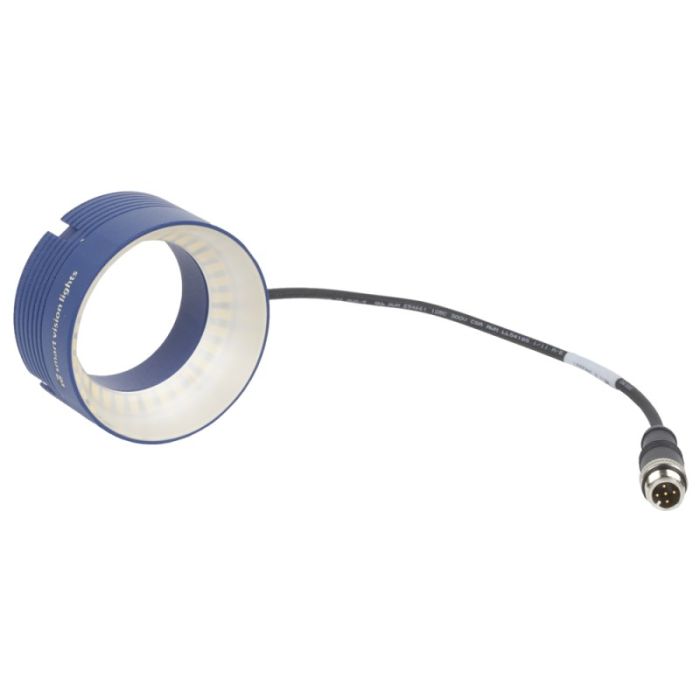

Smart Vision Lights - Mini Ring Lights RM,RMX

The series of compact ring lights feature multi-drive technology, allowing the light to be operated continuously or in overdrive strobe mode. Extremely bright, these lights are available in several wavelengths to meet your application needs.

Key Features

  • Colour: white, blue, green or red
  • Working distance: optimized for working distance between 50 and 200 mm
  • Features: multi-driver built-in, PNP and NPN strobe input
  • Power supply: 24 V equipped with over-current protection
  • Protection: IP65

Find the right model for your needs

Use the filters below to narrow down your selection based on your application requirements

Bis
Bis
Produktname Beam angle Connectors Dominant wavelength (nm) Emitting surface height (mm) Emitting surface inner diameter (mm) Emitting surface outer diameter (mm) Emitting surface width (mm) Intensity control method IP rating LED risk group Light colour Light distribution Lighting geometry Lighting technique Manufacturer Smart Weight (kg)
SVL RING LIGHT MINI RMX140-365-W80
 wide N/A 365 N/A 80 127 N/A N/A IP65 2 UV diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX140-530-N30
 30° N/A 530 N/A 80 127 N/A N/A IP65 1 Green diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX140-365-N30
 30° N/A 365 N/A 80 127 N/A N/A IP65 2 UV diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX75-395
 not specified N/A 395 N/A 52 61 N/A N/A IP65 2 UV diffused ring light dark field; frontlight Smart Vision Lights yes 0.120
SVL RING LIGHT MINI RMX140-470
 50° N/A 470 N/A 80 127 N/A N/A IP65 1 Blue diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX140-940
 50° N/A 940 N/A 80 127 N/A N/A IP65 0 (exempt) IR diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RM75-470
not specified N/A 470 N/A 52 72 N/A N/A IP65 1 Blue diffused ring light dark field; frontlight Smart Vision Lights yes 0.135
SVL RING LIGHT MINI RM75-530
 not specified N/A 530 N/A 52 72 N/A N/A IP65 1 Green diffused ring light dark field; frontlight Smart Vision Lights yes 0.135
SVL RING LIGHT MINI RM75-625
 not specified N/A 625 N/A 52 72 N/A N/A IP65 0 (exempt) Red diffused ring light dark field; frontlight Smart Vision Lights yes 0.135
SVL RING LIGHT MINI RM75-WHI
 not specified N/A N/A N/A 52 72 N/A N/A IP65 1 White diffused ring light dark field; frontlight Smart Vision Lights yes 0.135
SVL RING LIGHT MINI RM140-WHI
 not specified N/A N/A N/A 110 134 N/A N/A IP65 1 White diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RM140-470
 not specified N/A 470 N/A 110 134 N/A N/A IP65 1 Blue diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RM140-530
 not specified N/A 530 N/A 110 134 N/A N/A IP65 1 Green diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RM140-625
 not specified N/A 625 N/A 110 134 N/A N/A IP65 0 (exempt) Red diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX75-WHI
 not specified N/A N/A N/A 52 61 N/A N/A IP65 1 White diffused ring light dark field; frontlight Smart Vision Lights yes 0.120
SVL RING LIGHT MINI RMX75-470
 not specified N/A 470 N/A 52 61 N/A N/A IP65 1 Blue diffused ring light dark field; frontlight Smart Vision Lights yes 0.120
SVL RING LIGHT MINI RMX75-530
 not specified N/A 530 N/A 52 61 N/A N/A IP65 1 Green diffused ring light dark field; frontlight Smart Vision Lights yes 0.120
SVL RING LIGHT MINI RMX75-625
 not specified N/A 625 N/A 52 61 N/A N/A IP65 0 (exempt) Red diffused ring light dark field; frontlight Smart Vision Lights yes 0.120
SVL RING LIGHT MINI RMX140-365
 50° N/A 365 N/A 80 127 N/A N/A IP65 2 UV diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX140-WHI
 50° N/A N/A N/A 80 127 N/A N/A IP65 1 White diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX75-850
 not specified N/A 850 N/A 52 61 N/A N/A IP65 N/A IR diffused ring light dark field; frontlight Smart Vision Lights yes 0.120
SVL RING LIGHT MINI RMX75-365
 not specified N/A 365 N/A 52 61 N/A N/A IP65 2 UV diffused ring light dark field; frontlight Smart Vision Lights yes 0.120
SVL RING LIGHT MINI RMX140-625
 50° N/A 625 N/A 80 127 N/A N/A IP65 0 (exempt) Red diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX140-850-W80
 80° N/A 850 N/A 80 127 N/A N/A IP65 0 (exempt) IR diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX140-RGBW-KIT
 not specified N/A 470; 530; 625 N/A 80 127 N/A N/A IP65 0 (exempt) RGBW diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX140-WHI-N30
 30° N/A N/A N/A 80 127 N/A N/A IP65 1 White diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX140-850
 50° N/A 850 N/A 80 127 N/A N/A IP65 0 (exempt) IR diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX140-625-W80
 80° N/A 625 N/A 80 127 N/A N/A IP65 0 (exempt) Red diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX140-470-N30
 30° N/A 470 N/A 80 127 N/A N/A IP65 1 Blue diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX140-WHI-W80
 80° N/A N/A N/A 80 127 N/A N/A IP65 1 White not specified ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX140-530
 50° N/A 530 N/A 80 127 N/A N/A IP65 1 Green diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX140-530-W80
 80° N/A 530 N/A 80 127 N/A N/A IP65 N/A Green diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX140-625-N10
 10° N/A 625 N/A 80 127 N/A N/A IP65 0 (exempt) Red diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX140-WHI-N10
 10° N/A N/A N/A 80 127 N/A N/A IP65 1 White diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
SVL RING LIGHT MINI RMX140-625-N30
 30° N/A 625 N/A 80 127 N/A N/A IP65 0 (exempt) Red diffused ring light dark field; frontlight Smart Vision Lights yes 0.365
