Sony - LiDAR Depth Sensor

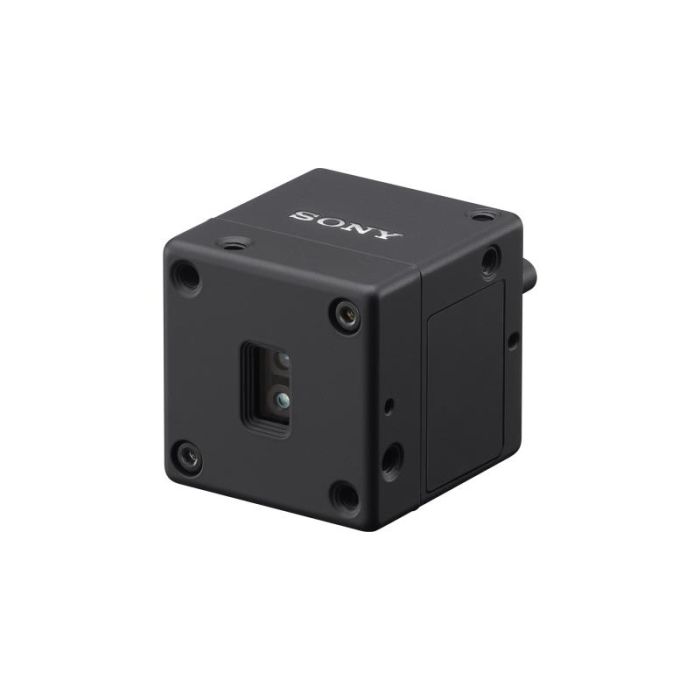

The AS‑DT1 combines an ultra‑small, lightweight design with accurate 3D LiDAR sensing, making it perfect for drones, robotics, and other demanding applications.
Key Features
- 29 mm (W) x 29 mm (H) x 31 mm (D)
- Weight only 46 g
- Utilizes dToF LiDAR technology
- Single Photon Avalanche Diode (SPAD) sensor
- Range distance of 40 m indoor, 20 m outdoor
- Lightweight aluminum alloy housing structure

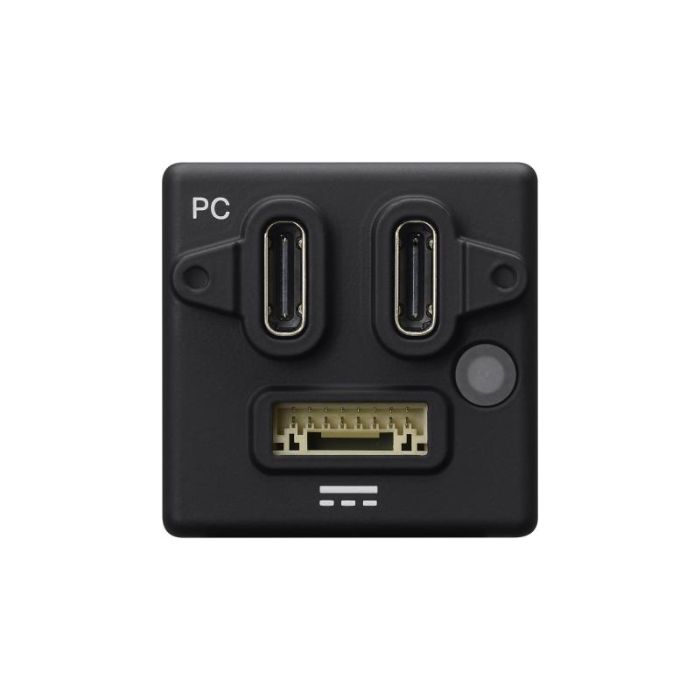

- 2 USB-C ports
- Connector for external power, UART interface and trigger
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Resolution Horizontal (Px) | Interface | LED risk group | Lens mount | Manufacturer | Pixel size (µm) | Scan type | Sensor format | Sensor size diagonal (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 31 | 29 | 29 | N/A | N/A | 1 | None | Sony | N/A | Time-of-Flight | N/A | N/A | 0.046 |
Warum Sony - LiDAR Depth Sensor?
Long Measurement Range
Its ranging measurement is highly accurate; even from a long distances of 40 meters indoors and 20 meters outdoors on a clear summer day (assuming 100,000 lux). This measurement accuracy, from a distance even outdoors, makes it very useful to measure distances to objects that are difficult for people to approach, such as bridges, expressways, and dams.
Compact, Lightweight and Robust
This is the world’s smallest and lightest sensor; 29 mm in width x 29 mm in height x 31 mm in depth, with 50 g in weight. The use of an aluminum alloy for the housing achieves both lightness and robustness. This compact housing makes it easy to integrate into various devices, such as autonomous mobile robots with limited space for depth sensors, and drones where weight affects the flight distance.
High Measurement Accuracy and Distance Resolution
By employing Sony’s proprietary dToF ranging module equipped with a Single Photon Avalanche Diode (SPAD) sensor, it enables highly accurate ranging measurement and distance resolution.It can measure at various distances, for example, at 10 meters with a margin of ±5 cm both indoors and outdoors.
Furthermore, it can accurately measure the distance to various objects,
which is difficult with other ranging measurement methods.
This includes the low-contrast objects, objects with low reflectivity, and objects floating in the air, making it suitable for integration into robots used in environments such as warehouses and stores where various objects are mixed together.
