Tamron - High Resolution-Series
Multi-purpose standard C-mount lenses for image circles up to 2/3"
Key Features
- Sensor size: Up to 2/3"
- Filter thread: M25.5 x 0.5
- Camera mount: C-mount
- Miscellaneous: Available with attachable focus and aperture rings
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Aperture | Camera mount (optics) | Filter thread | Focal length (mm) | Magnification (max) | Manufacturer | Min. pixel size | M.O.D. (mm) | Resolution | Sensor format | Sensor size diagonal (mm) | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F 1.4 | C-Mount | M25.5 x 0.5 | 8 | 0.260 | Tamron | 7 µm | 260 | 1.3 | 2/3" | 11 | Visible | |
| F 1.8 | C-Mount | M25.5 x 0.5 | 12 | 0.260 | Tamron | 7 µm | 260 | 1.3 | 2/3" | 11 | Visible | |
| F 1.6 | C-Mount | M25.5 x 0.5 | 16 | 0.29 | Tamron | 7 µm | 290 | 1.3 | 2/3" | 11 | Visible | |
| F 1.6 | C-Mount | M25.5 x 0.5 | 25 | 0.210 | Tamron | 7 µm | 210 | 1.3 | 2/3" | 11 | Visible | |
| F 2.1 | C-Mount | M25.5 x 0.5 | 35 | 0.3 | Tamron | 7 µm | 300 | 1.3 | 2/3" | 11 | Visible | |
| F 2.8 | C-Mount | M25.5 x 0.5 | 50 | 0.44 | Tamron | 7 µm | 440 | 1.3 | 2/3" | 11 | Visible | |
| F 3.9 | C-Mount | M25.5 x 0.5 | 75 | 0.5 | Tamron | 7 µm | 500 | 1.3 | 2/3" | 11 | Visible | |

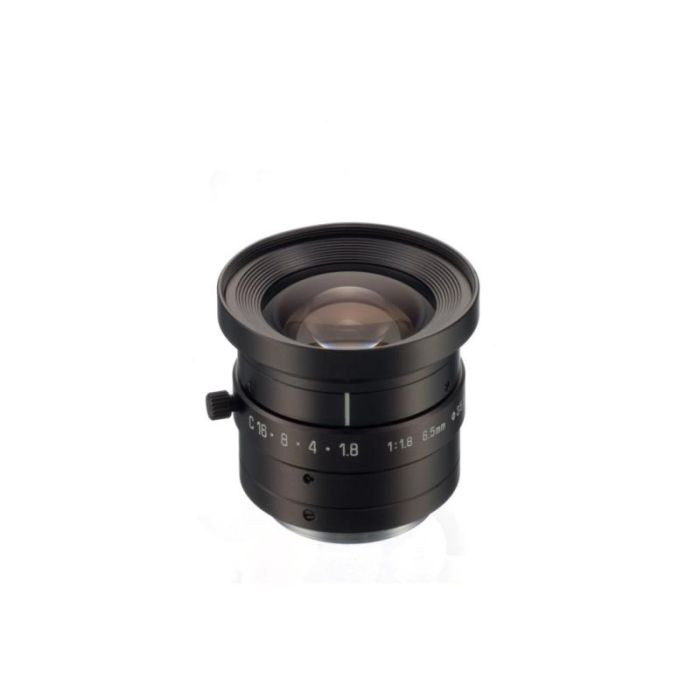

| F 1.8 | C-Mount | M35.5 x 0.5 | 6.5 | 1.5 | Tamron | 7 µm | 1500 | 1.3 | 2/3" | 11 | Visible |
Warum Tamron - High Resolution-Series?
High quality and precision
Tamron compact lenses are designed for imaging applications where high quality and precision are required. Optical aberrations, which can have a negative impact on image evaluation, are largely corrected.
Ideal for confined spaces
Thanks to their compact design, Tamron lenses can also be used in setups where space is limited. With focal lengths between 6.5 and 70 mm, the compact series covers the most commonly required image angles.
