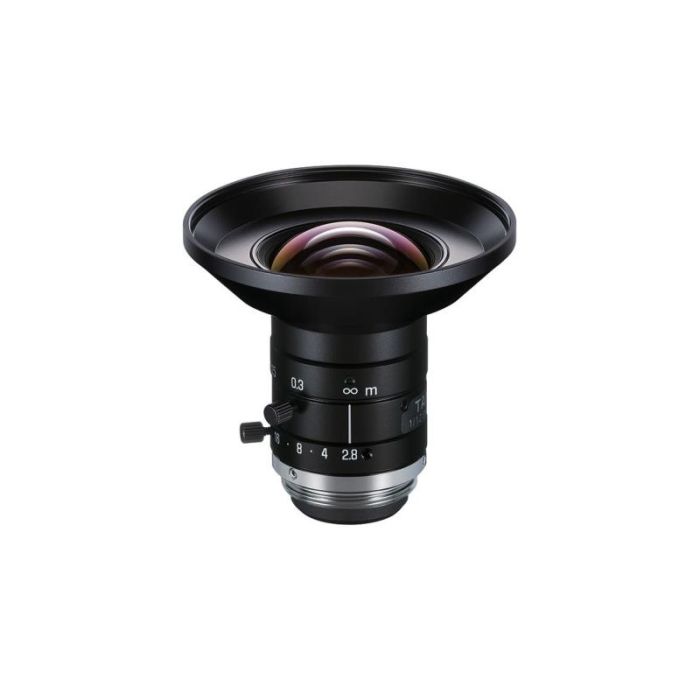

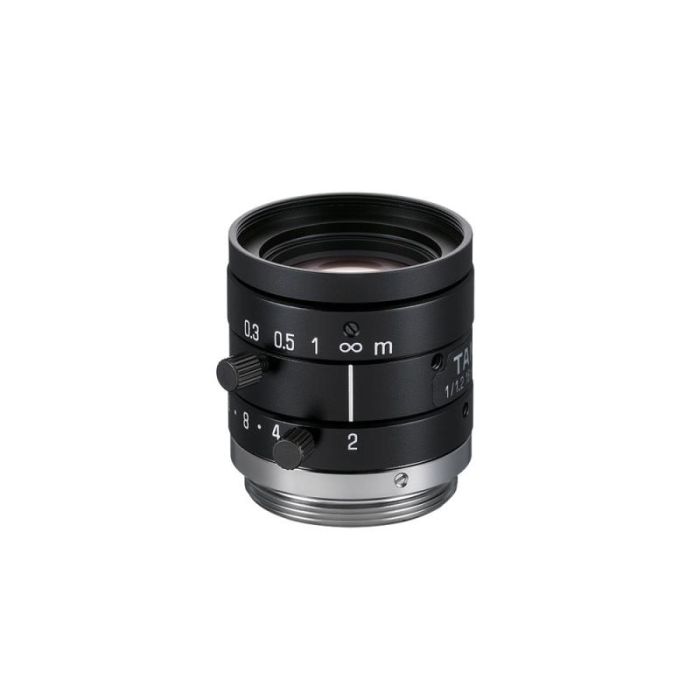

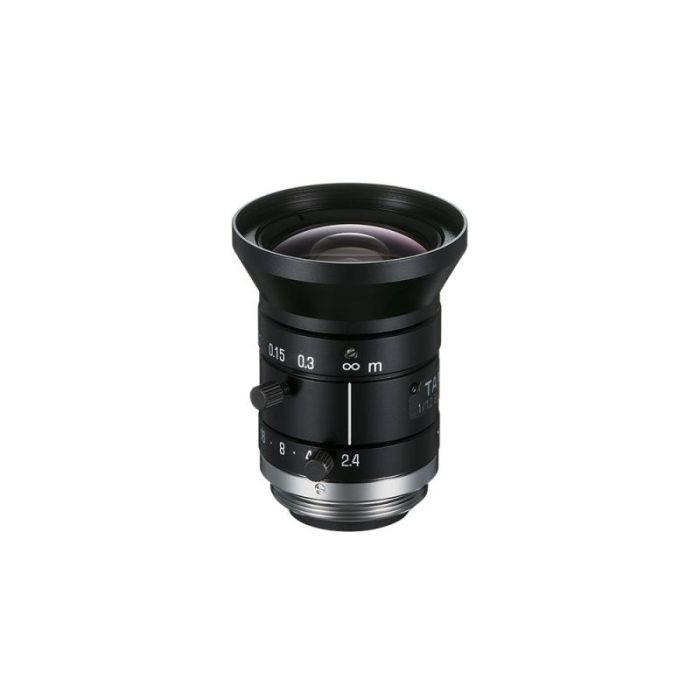

Tamron - M112FM
Lenses for 1:1.2" sensors that have been designed for the IMX250, IMX264 and IMX174.
Key Features
- Sensor size: 1:1.2"
- Focal length: 6, 8, 12, 16, 25, 35, 50 and 75 mm
- Filter thread: M27 x 0.5 (M112FM08: M35.5 x 0.5 and M112FM06: M58.5 x 0.75)
- Camera mount: C-mount
- Miscellaneous: Reduced minimum object distances; Locking focusing and aperture
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Aperture | Camera mount (optics) | Filter thread | Focal length (mm) | Magnification (max) | Manufacturer | Min. pixel size | M.O.D. (mm) | Resolution | Sensor format | Sensor size diagonal (mm) | Wavelength range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F 1.8 | C-Mount | M27 x 0.5 | 25 | N/A | Tamron | 3.45 µm | 86 | 3.0 | 1/1.2" | 13.3 | Visible | |
| F 2 | C-Mount | M27 x 0.5 | 16 | N/A | Tamron | 3.45 µm | 94.6 | 3.0 | 1/1.2" | 13.3 | Visible | |
| F 2 | C-Mount | M27 x 0.5 | 12 | N/A | Tamron | 3.45 µm | 100 | 3.0 | 1/1.2" | 13.3 | Visible | |
| F 2.4 | C-Mount | M35.5 x 0.5 | 8 | N/A | Tamron | 3.45 µm | 100 | 3.0 | 1/1.2" | 13.3 | Visible | |
| F 2.1 | C-Mount | M27 x 0.5 | 35 | N/A | Tamron | 3.45 µm | 194 | 3.0 | 1/1.2" | 13.3 | Visible | |
| F 2.8 | C-Mount | M27 x 0.5 | 50 | N/A | Tamron | 3.45 µm | 297 | 3.0 | 1/1.2" | 13.3 | Visible | |
| F 3.5 | C-Mount | M27 x 0.5 | 75 | N/A | Tamron | 3.45 µm | 700 | 3.0 | 1/1.2" | 13.3 | Visible | |
| F 2.8 | C-Mount | M58 x 0.75 | 6 | N/A | Tamron | 5.8 µm | 94.6 | 3.0 | 1/1.2" | 13.3 | Visible |
Warum Tamron - M112FM?
High resolution
Thanks to their excellent MTF, the lenses are well suited for camera sensors with a pixel size of only 3.45 µm providing crisp images from the centre up to the edges.
1/1.2" image circle
The Tamron M112FM lenses are optimised for large 1/1.2" sensors such as IMX250, IMX264 and IMX174.
Robust against vibration and shock
The design of the M112FM series ensures high optical quality even in harsh industrial environments, making them the ideal choice for use in factory automation.
Compact and versatile
The M112FM lenses have a very compact design and are available in 6, 8, 12, 16, 25, 35, 50 and 75 mm focal lengths.
