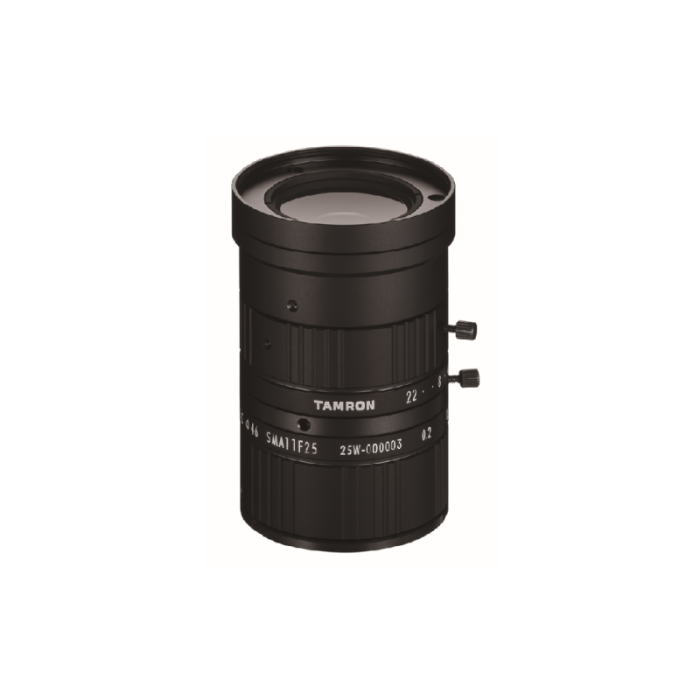

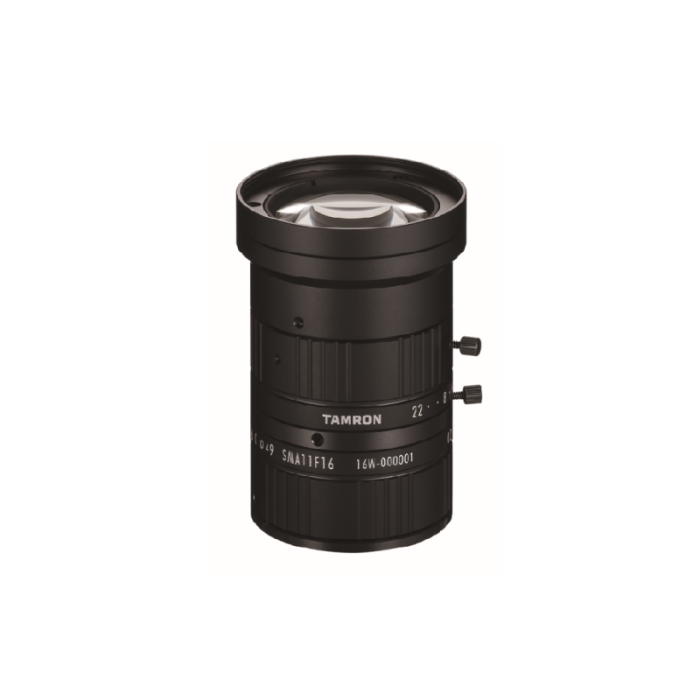

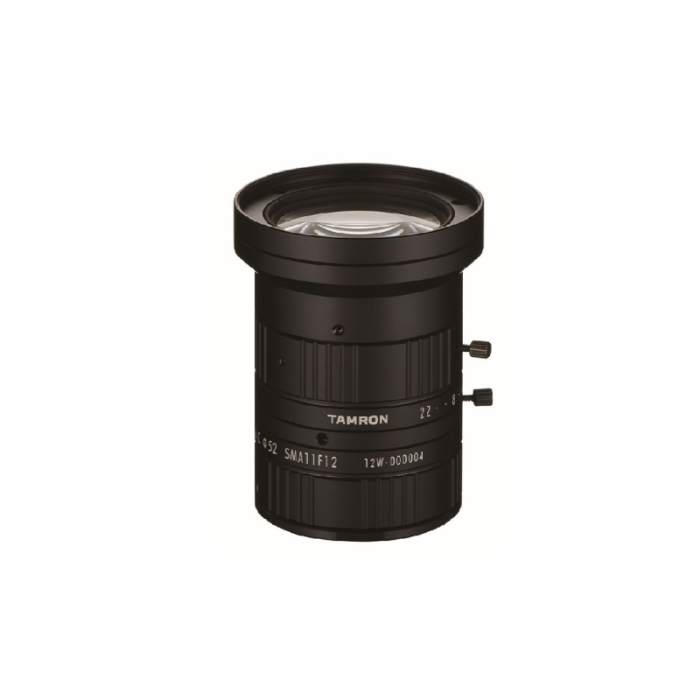

Tamron - SMA11F
The Tamron SMA Lens Series is engineered for high-precision machine vision applications, offering superior image quality and compact design, with a spectral range from visible-light to the Short Wavelength Infrared (SWIR) band.
Key Features
- Imager Size: up to 1"
- C-mount
- Focal Lengths: 12 mm, 16 mm and 25 mm
- Aperture Range: F/1.6 - F/22
- Field of View: Horizontal 1": 57.9° x 44.6° to 29.1° x 21.9°, Vertical 1/2": 30.2° x 24.3° to 14.7° x 11.7°
- Focusing Range: 0.2 m to infinity
- Wavelength Range: Visible Light to SWIR (400-1700 nm)
- Minimal focus-shift across the wavelength range
- Weight: Approximately 260 g
- Operating Temperature: -20 °C to +60 °C
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Aperture | Focal length (mm) | Manufacturer | Wavelength range |
|---|---|---|---|---|
| F 1.6 | 12 | Tamron | VIS-SWIR | |
| F 1.6 | 16 | Tamron | VIS-SWIR | |
| F 1.6 | 25 | Tamron | VIS-SWIR |
