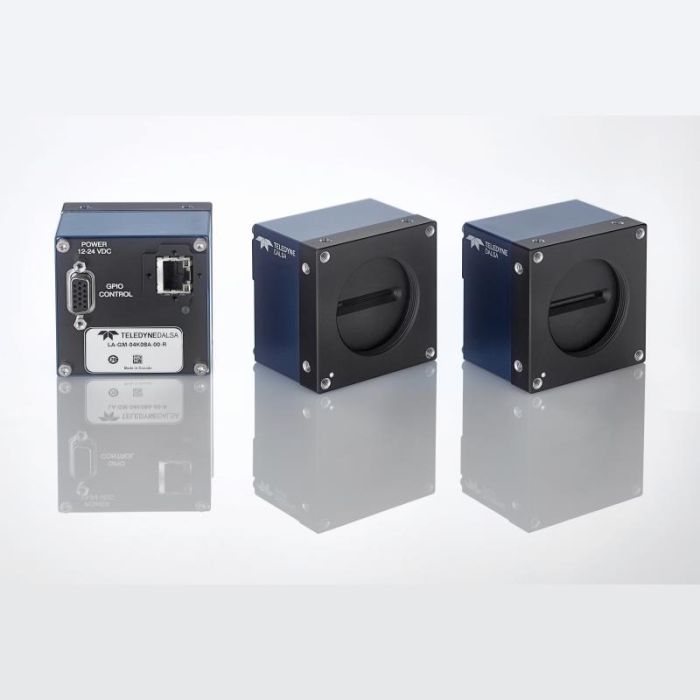

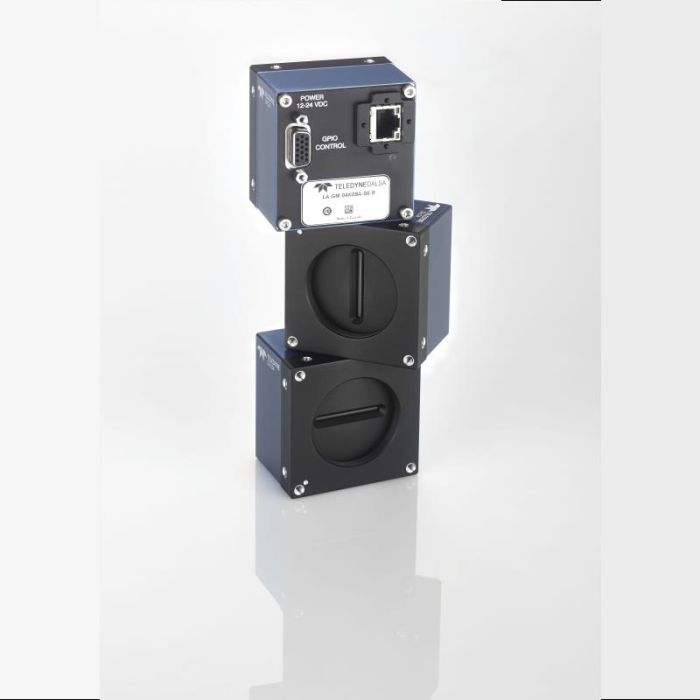

Teledyne DALSA - Linea
Fast and flexible CMOS line scan camera with CameraLink or Gigabit Ethernet interface with monochrome and colour models in a compact and robust design.
Key Features
- Sensor: single line CMOS line sensor (monochrome models); bilinear CMOS sensor (colour models)
- Resolution: 16k (CL-HS), 2/4/8/16k (CL), 2/4/8k (GigE)
- Line rate: up to 80 kHz
- Features (Depending on model): TurboDrive, burst mode, T2IR, cycling mode, HDR imaging, programmable GPIOs, flat-field correction, binning (2x2), sub-pixel and parallax spatial corrections; multiple ROIs
- Features of colour models: multiple ROIs for white balancing/calibration; bilinear colour architecture; RGB-, RG/BG- or G-data output formats
- Configuration: GenICam or ASCII command compatible interfaces
- Lens mount: M42, M72-mount or adapters for C-/F-mount lens
- I/O: programmable trigger, signal and synchronisation
- Interface: CameraLink HS, CameraLink or Gigabit Ethernet
- Operating temperature: 0 °C up to 65 °C
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Resolution Horizontal (Px) | Interface | Interface configuration | Lens mount | Manufacturer | Max. line freq. (kHz) | Pixel size (µm) | Scan type | Sensor type | Wavelength range | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 62 | 31 | 62 | 4096 | CameraLink | CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium | M42 x 1; Nikon F-Mount | Teledyne DALSA | 80 | 7.04 | line | CMOS | Monochrome; Visible | N/A | |
| 62 | 31 | 62 | 8192 | CameraLink | CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium | M72 x 0.75; Nikon F-Mount | Teledyne DALSA | 80 | 7.04 | line | CMOS | Monochrome; Visible | N/A | |
| 62 | 31 | 62 | 2048 | Gigabit Ethernet | 1 GigE | C-Mount; M42 x 1; Nikon F-Mount | Teledyne DALSA | 52 | 7.04 | line | CMOS | Monochrome; Visible | N/A | |
| 62 | 31 | 62 | 4096 | Gigabit Ethernet | 1 GigE | M42 x 1; Nikon F-Mount | Teledyne DALSA | 26 | 7.04 | line | CMOS | Monochrome; Visible | N/A | |
| 62 | 31 | 62 | 16384 | CameraLink | CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium | M72 x 0.75; Nikon F-Mount | Teledyne DALSA | 48 | 3.52 | line | CMOS | Monochrome; Visible | N/A | |
| 62 | 31 | 62 | 8192 | Gigabit Ethernet | 1 GigE | M72 x 0.75; Nikon F-Mount | Teledyne DALSA | 13 | 7.04 | line | CMOS | Monochrome; Visible | N/A | |
| 62 | 31 | 62 | 8192 | CameraLink | CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium | M72 x 0.75; Nikon F-Mount | Teledyne DALSA | 48 | 7.04 | line | CMOS | Colour; Visible | N/A | |
| 62 | 31 | 62 | 4096 | Gigabit Ethernet | 1 GigE | M42 x 1; Nikon F-Mount | Teledyne DALSA | 13 | 7.04 | line | CMOS | Colour; Visible | N/A | |
| 62 | 31 | 62 | 2048 | Gigabit Ethernet | 1 GigE | C-Mount; M42 x 1; Nikon F-Mount | Teledyne DALSA | 26 | 7.04 | line | CMOS | Colour; Visible | N/A | |
| 62 | 31 | 62 | 4096 | CameraLink | CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium | M42 x 1; Nikon F-Mount | Teledyne DALSA | 48 | 7.04 | line | CMOS | Colour; Visible | N/A | |
| 62 | 31 | 62 | 16384 | CameraLink HS | CLHS CX4 | M72 x 0.75; Nikon F-Mount | Teledyne DALSA | 71 | 3.52 | line | CMOS | Monochrome; Visible | N/A | |
| 62 | 31 | 62 | 2048 | CameraLink | CameraLink Base; CameraLink Deca; CameraLink Full; CameraLink Medium | C-Mount; M42 x 1; Nikon F-Mount | Teledyne DALSA | 80 | 7.04 | line | CMOS | Monochrome; Visible | N/A |
