Teledyne DALSA - Linea Lite

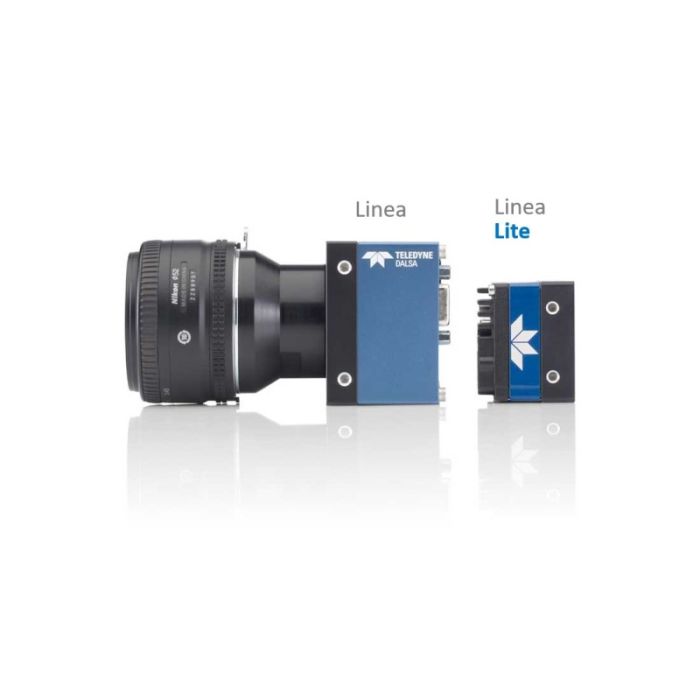

Linea Lite line scan camera is delivering both speed and responsivity in a small form factor based on the standard GigE interface.
Key Features
- Sensor: Dual line CMOS sensor
- Resolution: 2048 and 4096 pixel, and 8192 pixel super resolution
- Pixel size: 7µm or 14µm pixels, 3,5µm in super resolution
- Interface: Gigabit Ethernet incl. Power over Ethernet (PoE)
- Line rate: up to 50 kHz
- Features: TurboDrive, burst mode, HDR imaging, programmable GPIOs, multiple regions of interest (ROI) for calibration and data reduction; Precise Time Protocol (PTP)
- Pixel Offset Technology: Camera uses two 4k/7 μm pixel rows with 1/2 pixel offset. Data from two 4k/7 μm images is captured and then reconstructed to achieve a super resolution image of 8k/3.5 μm in real time. (08K02S Model only)
- Configuration: GenICam compatible interfaces
- Lens mount: M42
- I/O: programmable trigger, signal and synchronisation
- Operating temperature: -10 °C up to 65 °C
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Bit depth | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Resolution Horizontal (Px) | Interface | Interface configuration | Lens mount | Manufacturer | Max. line freq. (kHz) | Pixel size (µm) | Scan type | Sensor configuration | Wavelength range | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12; 8 | 37 | 46 | 46 | 4096 | Gigabit Ethernet | 1 GigE | M42 x 1 | Teledyne DALSA | 25 | 7 | line | Single line | Monochrome; Visible | 0.111 | |
| 12; 8 | 37 | 46 | 46 | 2048 | Gigabit Ethernet | 1 GigE | M42 x 1 | Teledyne DALSA | 50 | 14 | line | Dual line | Monochrome; Visible | 0.150 | |
| 12; 8 | 37 | 46 | 46 | 4096 | Gigabit Ethernet | 1 GigE | M42 x 1 | Teledyne DALSA | 12.5 | 7 | line | Dual line | Colour; Visible | 0.150 | |
| 12; 8 | 37 | 46 | 46 | 2048 | Gigabit Ethernet | 1 GigE | M42 x 1 | Teledyne DALSA | 25 | 14 | line | Dual line | Colour; Visible | 0.150 | |
| 12; 8 | 37 | 46 | 46 | 8192 | Gigabit Ethernet | GigE Vision | M42 x 1 | Teledyne DALSA | 25 | 3.5 | line | multi-line | Monochrome; Visible | 0.120 |
