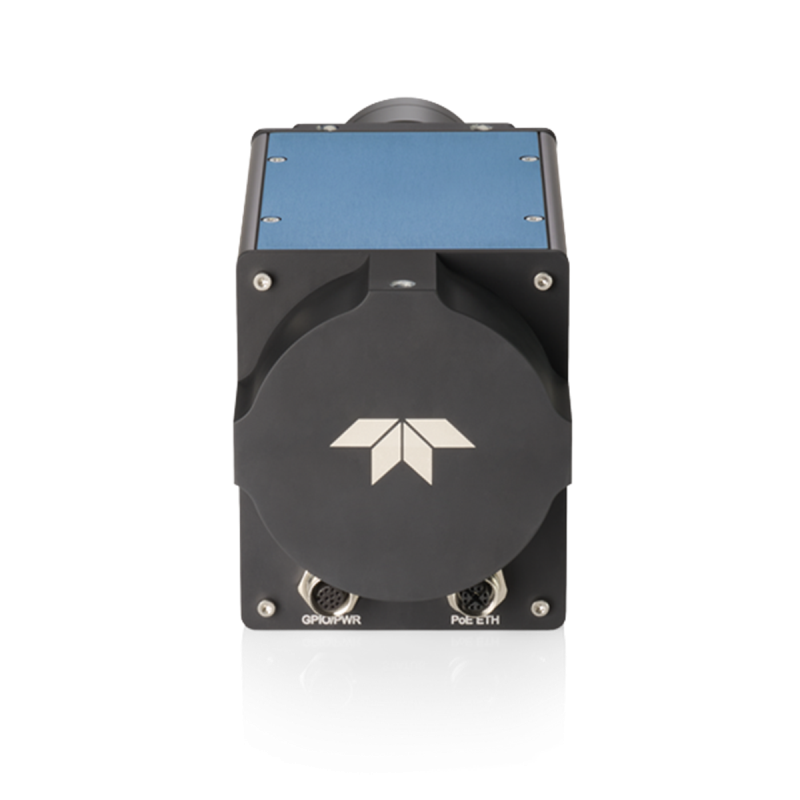

TELEDYNE KALEIDO KL-GS-12H03H-00-NL
SKU#:
63538
SWIR hyperspectral camera for high-speed industrial sorting and inspection.
Hinweis: Das tatsächliche Produkt kann von der Abbildung abweichen!
Die Downloads finden Sie unter der entsprechenden Produktserie:
Teledyne DALSA - Kaleido
List Price
Your Discount
Your Price
45.528,00 €
Product not available in your country
Preis und Verfügbarkeit auf Anfrage
Kontakt aufnehmen
Preise anfragen
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Bit depth | 12 |
| Certificates | CE, FCC, RoHS |
| Dimension (depth, mm) | 191 |
| Dimension (height, mm) | 121 |
| Dimension (width, mm) | 100 |
| Export regulations | If you export this item outside the EU you have to apply for an export licence according to EC term no. 428/2009 at your |
| Resolution Horizontal (Px) | 1280 |
| Illumination | No |
| Interface | Gigabit Ethernet |
| Interface configuration | 10 GigE, GigE Vision |
| Lens mount | M42 x 1 |
| Max. line freq. (kHz) | 2.3 |
| Pixel size (µm) | 14 |
| Power consumption (W) | 22 |
| Power supply voltage (VDC) | 12 - 24 |
| Scan type | line |
| Sensor configuration | Single line |
| Sensor type | InGaAs |
| Software CameraSuite | yes |
| Software driver CVB | yes |
| Wavelength range | SWIR |
| Weight (kg) | 2.300 |
- Sensor type: InGaAs
- Spectral range: SWIR
- Peak wavelength: 1750 nm
- Spatial resolution: 1280 x 256 pixels
- Max line rate: 2300 Hz (full spectral range)
- Spectral resolution: 3,5 nm
- Selectable spectral bands Up to 220
- Data interface: 10 GigE Vision (GenICam® compliant)
- Lens mount: M42x1
- Image processing: Flat-field correction, defective pixel correction, linearity correction
- Partial image modes: ROI, multi-ROI, spectral and digital binning
- Spectral calibration: Factory-calibrated; consistent across units and operating temperature range
