JAI WAL-1001-GE
SKU#:
64413
High-performance InGaAs SWIR line scan camera.

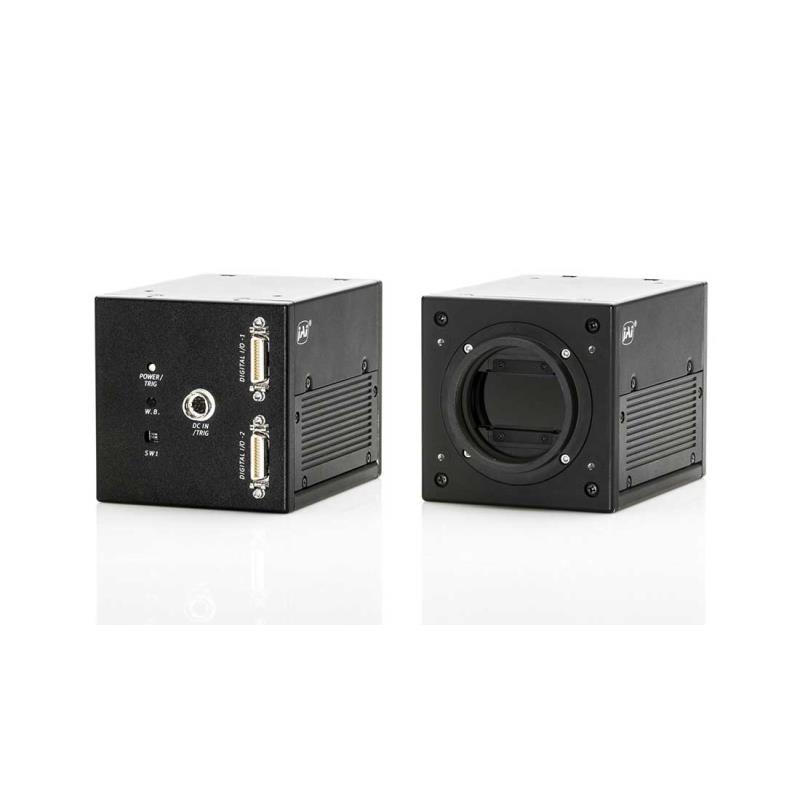

Hinweis: Das tatsächliche Produkt kann von der Abbildung abweichen!
Die Downloads finden Sie unter der entsprechenden Produktserie:
JAI - Wave WAL
List Price
Your Discount
Your Price
4.500,00 €
Product not available in your country
Preis und Verfügbarkeit auf Anfrage
Kontakt aufnehmen
Preise anfragen
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Wavelength range | SWIR |
| Resolution Horizontal (Px) | 1024 |
| Max. line freq. (kHz) | 29 |
| Lens mount | C-Mount |
| Interface | Gigabit Ethernet |
| Scan type | line |
| Pixel size (µm) | 12.5 |
| Manufacturer | JAI |
| Bit depth | 10, 12, 14, 8 |
| Certificates | CE, FCC, RoHS |
| Connector a: video | RJ45 (H) |
| Connector b: power | Hirose 12-pin |
| Dimension (depth, mm) | 57.6 |
| Dimension (height, mm) | 60 |
| Dimension (width, mm) | 60 |
| Flange focal distance | 17.526 |
| Illumination | No |
| Interface configuration | 1 GigE, GigE Vision |
| Numbers of connectors (Video) | 1 |
| Output formats | Mono10, Mono12, Mono14, Mono8 |
| Power consumption (W) | 4.3 |
| Power supply voltage (VDC) | 12 |
| Sensor configuration | Single line |
| Sensor length (mm) | 12.8 |
| Sensor type | InGaAs |
| Software CameraSuite | yes |
| Storage humidity | 20% - 80% |
| Storage temperature (°C) | -40 - 60 |
| Weight (kg) | 0.320 |
- 1K and 2K resolution line scan
- 12.8 mm wide sensor with 12.5 µm square pixels
- Up to 29 kHz (29,000 lines/s) scan rate
- GigE Vision interface for efficient data transfer
- InGaAs-based SWIR industrial camera (900–1700 nm spectral response)
- Selectable output formats (Mono8/10/12/14-bit)
- Supports FFC (Flat Field Correction), DPC (Defective Pixel Correction), Sharpness, Destripe, black level control and LUT
- Gain control includes digital gain and analog gain
- Standard C-mount
