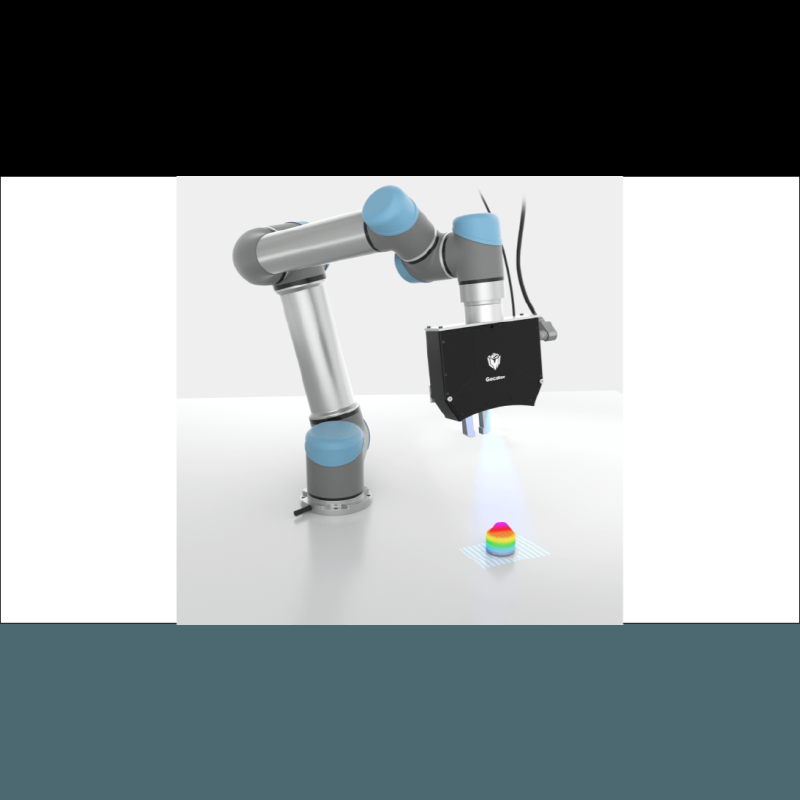

LMI GOCATOR 3210
SKU#:
34582
Cutting-edge laser triangulation 3D smart snapshot sensors.
Hinweis: Das tatsächliche Produkt kann von der Abbildung abweichen!
Die Downloads finden Sie unter der entsprechenden Produktserie:
LMI - Gocator 3000
List Price
Your Discount
Your Price
12.790,00 €
Product not available in your country
Preis und Verfügbarkeit auf Anfrage
Kontakt aufnehmen
Preise anfragen
Errors and changes excepted. Our general terms and conditions apply. We supply exclusively to corporate customers.
Product Features
| Attributes | |
|---|---|
| Working distance (mm) | 164.00 |
| FoV (Field of View) | 71x98 - 100x154 |
| Scan Rate (Hz) | 4 |
| X resolution (mm) | 0.060 - 0.090 |
| Z resolution (mm) | N/A |
| Scan type | digital fringe projection |
| Laser Class | 3B |
| Manufacturer | LMI Technologies |
| Dimension (depth, mm) | 190 |
| Dimension (height, mm) | 142 |
| Dimension (width, mm) | 49 |
| Interface | Gigabit Ethernet |
| LED risk group | N/A |
| Weight (kg) | 1.700 |
- Scan rate: up to 5 Hz
- Interface: Gigabit Ethernet
- Built-in web server supports any computer and operating system
- Built-in 3D measurement tools: 3D feature tools: openings (holes, slots), cylinders, studs (threaded and non-threaded), plane / 3D volumetric tools: volumes, areas, bounding boxes, positions (min, max, centroid), ellipses, orientations
- Inputs: differential encoder, light / laser safety enable, trigger
- Outputs: 2 x digital output, RS485 serial (115 kbaud), 1 x analogue output (4 - 20 mA)
- Input voltage (power): +24 to +48 VDC (25 watts), ripple +/- 10 %
- Housing: gasketed aluminium enclosure with IP67 rating
- Weight: > 1.5 kg
- Operating temperature: 0 to 50° C
- Vibration resistance: 10 to 55 Hz, 1.5 mm double amplitude in X, Y and Z directions, 2 hours per direction
- Shock resistance: 15 g, half sine wave, 11 ms, positive and negative for X, Y and Z directions
