Schneider-Kreuznach - ZIRCONIA
12k and 16k line scan lenses with large apertures
Key Features

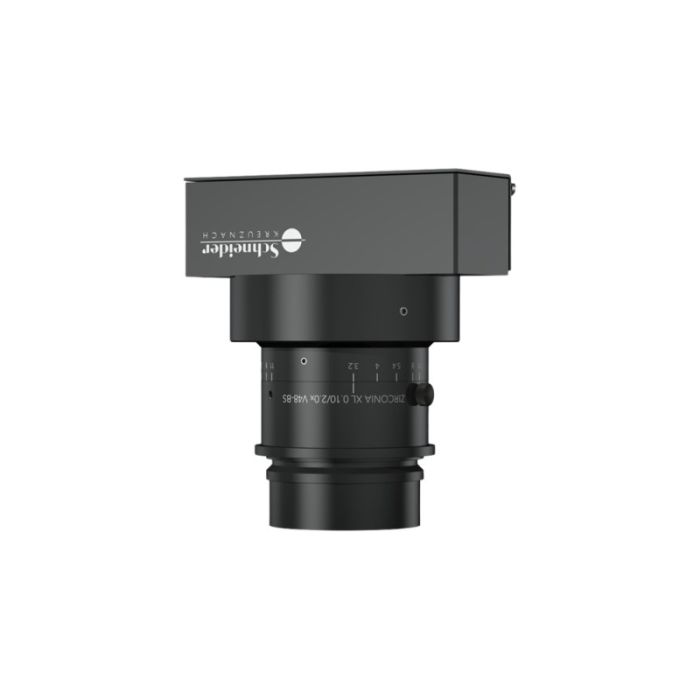

- Magnifications: -0.2x, -0.33x, -0.5x, -0.7x, -1.0x, -2.0x (optional with beamsplitter)
- Initial aperture: 2.8-4.0
- Filter thread: M46 x 0.75
- Transmission: 400 - 1000 nm
-
Miscellaneous:
- V70 mount adaptable to M58, M72, M90 and M95
- V48 to V70 focusing mechanism required
- Various extension tubes to fit your needs
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Aperture | Camera mount (optics) | Filter thread | Focal length (mm) | Magnification (max) | Manufacturer | Min. pixel size | Resolution | Sensor format | Sensor size diagonal (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| F 3.3 | V48 | M46 x 0.75 | 92 | 0.200 | Schneider Kreuznach | 5 µm | 12k | 35mm | 62.5 | |
| F 3.2 | V48 | M46 x 0.75 | 91.5 | 0.5 | Schneider Kreuznach | 3.5 µm | 12k | 35mm | 82 | |

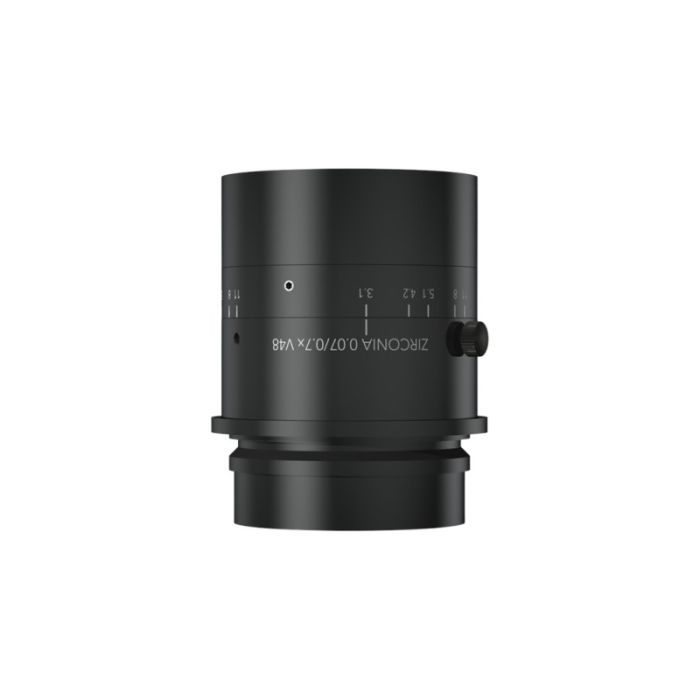

| F 3.1 | V48 | M46 x 0.75 | 91.2 | 0.7 | Schneider Kreuznach | 3.5 µm | 12k | 35mm | 82 | |

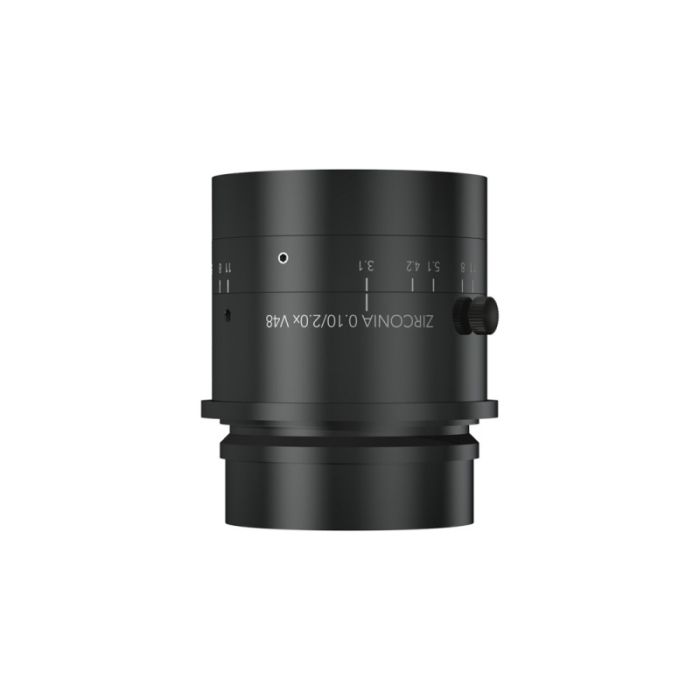

| F 3.2 | V48 | M46 x 0.75 | 91.6 | 2.0 | Schneider Kreuznach | 5 µm | 12k | 35mm | 82 | |
| F 3.2 | V48 | M46 x 0.75 | 91.6 | 2.0 | Schneider Kreuznach | 5 µm | 12k | 35mm | 82 | |
| F 4 | V48 | M46 x 0.75 | 85 | 0.33 | Schneider Kreuznach | 3.5 µm | 12k | 35mm | 62.5 | |
| F 2.8 | V48 | M46 x 0.75 | 88.8 | 1.0 | Schneider Kreuznach | 5 µm | 12k | 35mm | 82 | |
| F 3.3 | V48 | M46 x 0.75 | 90 | 0.100 | Schneider Kreuznach | 5 µm | 12k | 35mm | 62.5 |
