High-Speed Imaging, Wider Wavelengths, New Line Scan Options

Countdown to VISION 2026 is on!

VISION 2026 Stuttgart

We at STEMMER IMAGING look forward to meeting you in person and discussing your individual machine vision project. Your goal is our direction. Manufacturer-independent and backed by experience from countless successfully completed projects, we find the solution that fits your requirements best.

• The Evening Club: 7 October, from 16:00, at the Hotel Mövenpick Stuttgart Messe & Congress – an evening for customers, partners and friends.
• Conference Talk: 6 October, 13:40–14:00 – “Secure Design for Long-Lived Machine Vision Systems” with Luis Lopez.
• Book your personal appointment: Meet the STEMMER IMAGING team at VISION 2026 in Stuttgart.

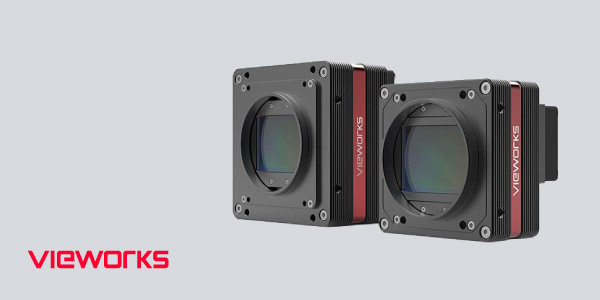

Vieworks VCS-14MX2 Camera

14 megapixels or 338 fps. Most cameras make you choose.

Print, PCB and semiconductor lines increasingly need higher resolution and higher frame rate without giving up light sensitivity. The Vieworks VCS-14MX2 closes that gap, built for demanding inspection tasks in mono or colour versions.

• 14 MP, back-side illuminated: The BSI sensor with 4,608 × 3,072 resolution and 5.5 µm pixels retains the light sensitivity that front-illuminated sensors give up at this resolution.
• 338 fps at full resolution: Four-lane CoaXPress 2.0 reaches up to 50 Gbps and up to 21.037 fps at 32 lines in partial scan mode.
• Global shutter, fully corrected: DSNU, PRNU and flat-field correction keep images accurate across the full sensor and reduce false rejects.
• Two cooling options, one specification: Fan-cooled or heat-sink variants both operate from 0 to 40°C, so the enclosure decides, not the camera.

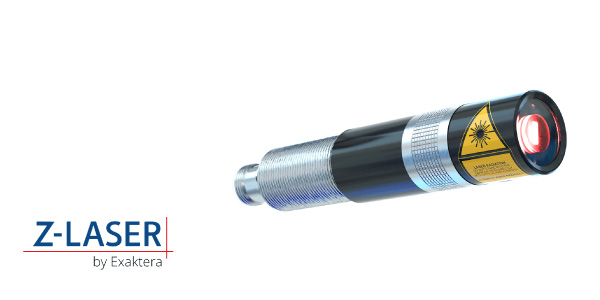

Z-LASER ZM18-V Laser Illumination

The same form factor. More flexibility for machine vision.

Integrators and OEMs building imaging, positioning and precision measurement systems need laser modules that adapt to different applications without forcing a mechanical redesign. The ZM18-V extends Z-LASER’s proven ZM18 platform with a broader wavelength range for machine-vision applications.

• 405 to 830 nm wavelength range: Supports inspection, defect detection and alignment across different materials and camera sensitivities.
• 20°, 30°, 45° or 60° opening angles: Additional angles are available on request, allowing the beam geometry to be matched to the application.
• Established M18 form factor and four-pin M12 connector: Supports integration into existing systems while retaining established mechanical and electrical interfaces.
• Fixed or manual focus, up to 170 mW and IP67 protection: Configuration options support different working distances and demanding industrial environments.

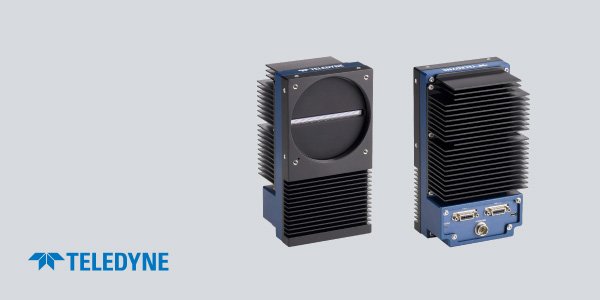

Teledyne DALSA Linea HS2

One more pixel array. One less excuse for low light.

Semiconductor inspection often runs in light-limited conditions where adding illumination is not an option. The Linea HS2 family now spans two new models: the HS2-HM-16K100T-00-B adds a fourth pixel array for the darkest semiconductor applications, and the HS2-HM-08K100H-00-B brings 8k resolution to lines that do not need the full 16k.

• 8k or 16k resolution, up to 1 MHz: Covers both formats at full line rate, so the same platform serves multiple inspection tiers.
• Dual CLHS interface, 16 GB/s: Field-proven high-speed data transmission keeps up with fast-moving lines without dropping frames.
• Multi-array configurations: Prioritise dynamic range or responsivity depending on what the application actually needs.
• Smart lens shading correction and on-chip binning: Corrects unevenness on-camera and adapts resolution to speed without extra processing steps.

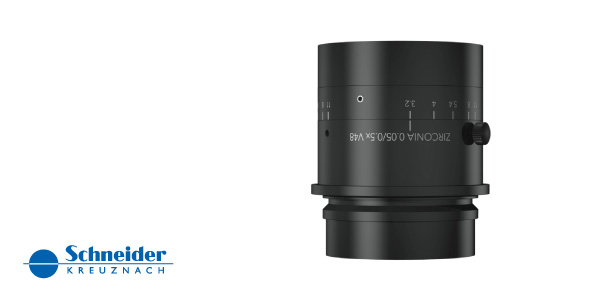

Schneider-Kreuznach ZIRCONIA

High-resolution line scan optics combining performance and value.

Large-format sensors need lenses matched to sensor size, pixel pitch and application magnification, not simply a lens with a compatible mount. ZIRCONIA is Schneider-Kreuznach’s line-scan lens family built specifically for high-resolution imaging with large sensors.

• 62.5 to 82 mm image circles, 5 µm pixels: Seven magnifications from 0.1x to 2.0x cover a broad range of applications, including display, PCB and AOI inspection.
• 82 mm XL variant for 16k/5 µm line-scan sensors: Supports sensors including the Teledyne DALSA Linea HS2 16k, addressing larger line-scan formats within the same lens family.
• V48 mount and best-azimuth marking: Extension tubes, focusing mounts and camera adapters simplify integration across different setups.
• Dedicated 2.0x XL beamsplitter version: Supports applications using coaxial illumination with an integrated beamsplitter.

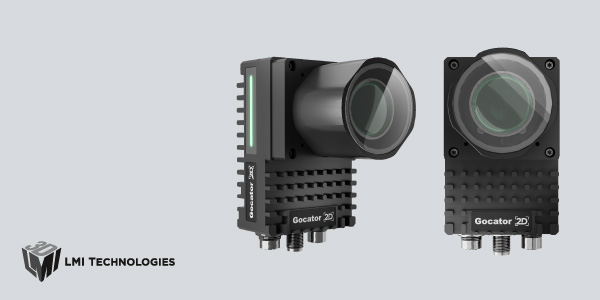

LMI Gocator 2D

Four new models. AI inference, right-sized.

Not every inspection task needs the same sensor resolution or on-board processing power, but every line still needs dependable 2D defect detection. LMI Technologies is expanding the Gocator 2D range with four new models, arriving late Q4 2026.

• 5 MP or 12 MP, mono or colour: Match sensor resolution to part size and defect class.
• Integrated Orin Nano AI inference: On-device deep learning for applications that do not require the full power of Orin NX.
• IP67 and global shutter: Built for washdown and dusty production environments.
• High-speed GigE and onboard storage: Trigger and strobe control are simplified before integration even starts.

Supreme Cobot & Automation Day 2026

Five specialists, one stage in Zaragoza.

Robotic automation and machine vision increasingly work side by side on production lines, yet most events still cover them separately. Supreme Cobot & Automation Day brings ABB, PILZ, STEMMER IMAGING, SCHMALZ and ZIMMER together for one technical day at the Instituto Tecnológico de Aragón.

• Five specialists, one programme: ABB, PILZ, STEMMER IMAGING, SCHMALZ and ZIMMER present robotics, safety, machine vision and handling solutions side by side.
• Live demonstrations: See robotic and vision technologies working together in real automation set-ups, not just on a slide.
• Talk to application engineers: Bring a current project or an open technical question and discuss it on site.
• Half-day format, 9:30am–2pm: Technical talks and networking fit into a single morning at ITA Zaragoza.
• Date and location: 1 October 2026, ITA, Zaragoza, Spain.

SIANE 2026

Different applications need different ways of seeing.

Industrial inspection, 3D robotics and advanced sensing each place different demands on a vision system. At SIANE 2026, STEMMER IMAGING shows four application-focused demonstrations, illustrating how the right imaging approach follows from what the application needs to see, measure or understand.

• Four live demonstrations: Industrial inspection, 3D inspection and automation, 3D object handling and advanced sensing.
• Application first: Specialists translate your vision requirement into the right combination of camera, optics, illumination, processing and software.
• Manufacturer-independent: A broad technology portfolio means the demonstration reflects what fits, not one vendor’s line.
• Talk to the team: Discuss quality inspection, automation, machine building or robotics requirements on site.
• Date and location: 13–15 October 2026, MEETT, Toulouse, France, Booth B65.

WeAreCobots 2026

Cobots move parts. Vision tells them where to look.

Intralogistics operations increasingly rely on collaborative robots, but automation only works reliably when the robot can see and verify what it is handling. WeAreCobots Logistics País Vasco brings STEMMER IMAGING and Universal Robots together for a day on flexible, safe automation for the supply chain.

• Expert talks on logistics automation: Sessions on collaborative robotics and digital transformation from specialists in the field.
• Real customer case studies: See how companies are already improving their operations through automation.
• Live demos with cobots and vision systems: Watch collaborative robots and machine vision working together in logistics set-ups.
• Networking and lunch included: Connect with integrators, professionals and industry leaders on site.
• Date and location: 15 October 2026, Anoeta, San Sebastián, Spain.

Scanautomatic 2026

One vision partner, every application on the show floor.

Nordic industrial automation spans everything from single components to complete production systems. At Scanautomatic 2026, STEMMER IMAGING AB joins the region’s premier automation and digitalisation event, held alongside ProcessTeknik at Svenska Mässan.

• Manufacturer-independent portfolio: Cameras, optics, lighting and software matched to the application, not one vendor’s line.
• Application expertise on site: Talk to specialists about inspection, robotics or automation projects specific to your production line.
• Three days, two fairs: Scanautomatic runs alongside ProcessTeknik, covering automation, digitalisation and process technology under one roof.
• Date and location: 20–22 October 2026, Svenska Mässan, Gothenburg, Sweden.

What frame rate does the Vieworks VCS-14MX2 reach?

Up to 338 fps at full 4,608 × 3,072 (14 MP) resolution, using a four-lane CoaXPress 2.0 interface.

What wavelengths does the Z-Laser LM18V cover?

It launches with 15 variants across seven wavelengths, from 405 nm to 830 nm.

Does the Z-Laser LM18V fit existing M18S3 mounts?

Yes. The LM18V carries over the M18S3's mechanical design, brackets and cable routing, so it's a drop-in upgrade without redesigning the mount.

Which lens matches the Teledyne DALSA Linea HS2 16k camera?

The Schneider-Kreuznach ZIRCONIA XL 82 mm variants, optimised for the 16k / 5 µm format.

What pixel size and image circle does the Schneider-Kreuznach ZIRCONIA cover?

ZIRCONIA is optimised for 5 µm pixels, with image circles from 62.5 mm to 82 mm across seven magnifications from 0.1x to 2.0x.

How many new Gocator 2D models has LMI Technologies released?

Four: two 5 MP models (1051-M/C) and two 12 MP models (1121-M/C), both built on Jetson Orin Nano.
