Teledyne FLIR - Blackfly S USB3
As the lightest camera in its class, the compact Blackfly S combines industry-leading sensors in a compact ice cube form factor with advanced features for fast and accurate image capture. With on-board storage, data is efficiently stored directly on the camera. Flexible I/O allows easy integration into even the most complex systems.
Key Features
- Up to 24.5 Megapixel
- Max. Frame rate: 522
- Standard lens mount: C-mount
- Sensor type: CMOS
- Sensor model: Sony
- Data interface: USB3.1 Gen 1
- Spectrum color / monochrome
Find the right model for your needs
Use the filters below to narrow down your selection based on your application requirements
| Produktname | Bandwidth (MByte/s) | Bit depth | Dimension (depth, mm) | Dimension (height, mm) | Dimension (width, mm) | Frame rate (Hz) | Resolution Horizontal (Px) | Housing | Interface | Interface configuration | Lens mount | Manufacturer | Pixel size (µm) | Resolution (MP) | Scan type | Sensor configuration | Sensor model | Sensor size diagonal (mm) | Shutter type | Wavelength range | Resolution Vertical (Px) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N/A | 10; 12; 8 | 29 | 29 | 30 | 118 | 2048 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 3.2 | area | N/A | IMX252 | 8.83 | Global shutter | Colour; Visible | 1536 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 46 | 2840 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 2.74 | 8 | area | N/A | IMX546 | 11 | Global shutter | Colour; Visible | 2840 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 75 | 2448 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 5 | area | N/A | IMX250 | 11.07 | Global shutter | Monochrome; Visible | 2048 | 0.036 | |

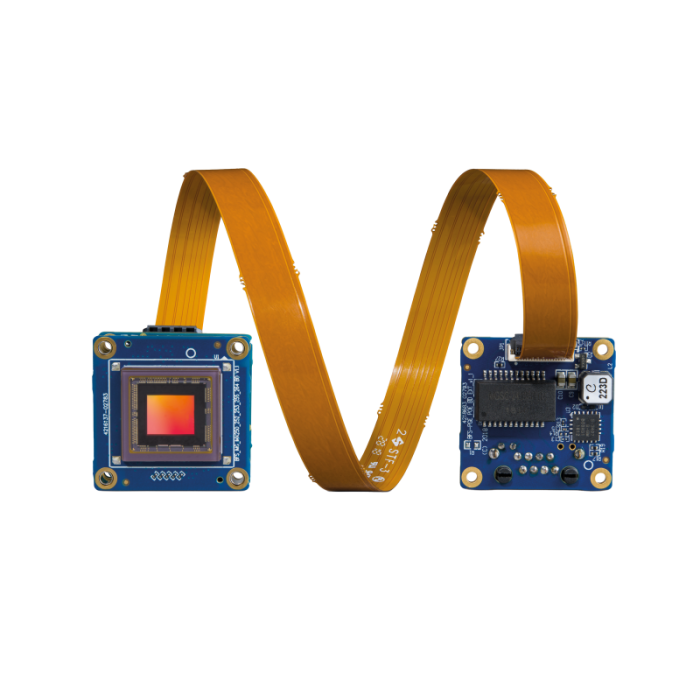

| N/A | 10; 12; 8 | 29 | 29 | 30 | 55 | 2048 | bare board 180° | USB | USB3.1; USB3.1 Gen1 | None | Teledyne FLIR | 3.45 | 3.2 | area | N/A | IMX265 | 8.89 | Global shutter | Colour; Visible | 1536 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 163 | 1920 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 2.3 | area | N/A | IMX392 | 7.7 | Global shutter | Monochrome; Visible | 1200 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 163 | 1920 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 2.3 | area | N/A | IMX392 | 7.7 | Global shutter | Colour; Visible | 1200 | 0.036 | |
| N/A | 12 | 29 | 29 | 30 | 30 | 4096 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 12.3 | area | N/A | IMX253 | 17.58 | Global shutter | Monochrome; Visible | 3000 | 0.036 | |
| N/A | 12 | 29 | 29 | 30 | 23 | 5320 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 2.74 | 16.1 | area | N/A | IMX542 | 18.8 | Global shutter | Monochrome; Visible | 3032 | 0.036 | |
| N/A | 12 | 29 | 29 | 30 | 226 | 1440 | closed housing | USB | USB3.1; USB3.1 Gen1 | CS-Mount | Teledyne FLIR | 3.45 | 1.6 | area | N/A | IMX273 | 6.27 | Global shutter | Monochrome; Visible | 1080 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 118 | 2048 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 3.2 | area | N/A | IMX252 | 8.83 | Global shutter | Monochrome; Visible | 1536 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 23 | 4096 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 12.3 | area | N/A | IMX304 | 17.58 | Global shutter | Monochrome; Visible | 3000 | 0.036 | |
| N/A | 10 | 29 | 29 | 30 | 170 | 1280 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 4.8 | 1.3 | area | N/A | Python 1300 | 8 | Global shutter | Monochrome; Visible | 1024 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 130 | 1936 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 4.5 | 2.8 | area | N/A | IMX421 | 11 | Global shutter | Colour; Visible | 1464 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 72 | 2448 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 2.74 | 5 | area | N/A | IMX547 | 8.9 | Global shutter | Monochrome; Visible | 2048 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 46 | 2840 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 2.74 | 8 | area | N/A | IMX546 | 11 | Global shutter | Monochrome; Visible | 2840 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 23 | 4096 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 12.3 | area | N/A | IMX304 | 17.58 | Global shutter | Colour; Visible | 3000 | 0.036 | |
| N/A | 10 | 29 | 29 | 30 | 170 | 1280 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 4.8 | 1.3 | area | N/A | Python 1300 | 8 | Global shutter | Colour; Visible | 1024 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 59.6 | 3072 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 2.74 | 6.3 | area | N/A | IMX178 | 8.86 | Global shutter | Colour; Visible | 2048 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 59.6 | 3072 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 2.74 | 6.3 | area | N/A | IMX178 | 8.86 | Global shutter | Monochrome; Visible | 2048 | 0.036 | |
| N/A | 12 | 29 | 29 | 30 | 18 | 5472 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 2.4 | 20 | area | N/A | IMX183 | 15.8 | Rolling shutter | Colour; Visible | 3648 | 0.036 | |
| N/A | 12 | 29 | 29 | 30 | 18 | 5472 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 2.4 | 20 | area | N/A | IMX183 | 15.8 | Rolling shutter | Monochrome; Visible | 3648 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 31 | 4000 | closed housing | USB | USB3.1; USB3.1 Gen1 | CS-Mount | Teledyne FLIR | 1.85 | 12 | area | N/A | IMX226 | 9.33 | Global shutter | Colour; Visible | 3000 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 31 | 4000 | closed housing | USB | USB3.1; USB3.1 Gen1 | CS-Mount | Teledyne FLIR | 1.85 | 12 | area | N/A | IMX226 | 9.33 | Global shutter | Monochrome; Visible | 3000 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 75 | 2448 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 5 | area | N/A | IMX250 | 11.07 | Global shutter | Colour; Visible | 2048 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 75 | 2448 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 5 | area | N/A | IMX250MZR | 11.07 | Global shutter | Colour; Visible | 2048 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 75 | 2448 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 5 | area | N/A | IMX250MZR | 11.07 | Global shutter | Monochrome; Visible | 2048 | 0.036 | |
| N/A | 10; 12 | 29 | 29 | 30 | 30 | 4096 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 12.3 | area | N/A | IMX253 | 17.58 | Global shutter | Colour; Visible | 3000 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 72 | 2448 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 2.74 | 5 | area | N/A | IMX547 | 8.9 | Global shutter | Colour; Visible | 2048 | 0.036 | |
| N/A | 12 | 29 | 29 | 30 | 23 | 5320 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 2.74 | 16.1 | area | N/A | IMX542 | 18.8 | Global shutter | Colour; Visible | 3032 | 0.036 | |
| N/A | 12 | 29 | 29 | 30 | 13 | 4504 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 2.74 | 20.3 | area | N/A | IMX541 | 18.8 | Global shutter | Monochrome; Visible | 4504 | 0.036 | |
| N/A | 12 | 29 | 29 | 30 | 13 | 4504 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 2.74 | 20.3 | area | N/A | IMX541 | 18.8 | Global shutter | Colour; Visible | 4504 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 15 | 5320 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 2.74 | 24.5 | area | N/A | IMX540 | 19.3 | Global shutter | Monochrome; Visible | 4600 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 15 | 5320 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 2.74 | 24.5 | area | N/A | IMX540 | 19.3 | Global shutter | Colour; Visible | 4600 | 0.036 | |
| N/A | 12 | 29 | 29 | 30 | 97 | 1600 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 9 | 1.7 | area | N/A | IMX432 | 18.8 | Global shutter | Monochrome; Visible | 1100 | 0.036 | |
| N/A | 12 | 29 | 29 | 30 | 97 | 1600 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 9 | 1.7 | area | N/A | IMX432 | 18.8 | Global shutter | Colour; Visible | 1100 | 0.036 | |
| N/A | 12 | 29 | 29 | 39 | 131 | 1616 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 4.5 | 2 | area | N/A | IMX430 | 8.8 | Global shutter | Monochrome; Visible | 1240 | 0.036 | |
| N/A | 12 | 29 | 29 | 30 | 131 | 1616 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 4.5 | 2 | area | N/A | IMX430 | 8.8 | Global shutter | Colour; Visible | 1240 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 95 | 1936 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 4.5 | 2.8 | area | N/A | IMX429 | 11 | Global shutter | Monochrome; Visible | 1464 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 95 | 1936 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 4.5 | 2.8 | area | N/A | IMX429 | 11 | Global shutter | Colour; Visible | 1464 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 51 | 3208 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 4.5 | 7.1 | area | N/A | IMX428 | 18.8 | Global shutter | Monochrome; Visible | 2200 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 51 | 3208 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 4.5 | 7.1 | area | N/A | IMX428 | 18.8 | Global shutter | Colour; Visible | 2200 | 0.036 | |
| N/A | 12 | 29 | 29 | 39 | 196 | 1600 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 9 | 1.7 | area | N/A | IMX425 | 18.8 | Global shutter | Monochrome; Visible | 1100 | 0.036 | |
| N/A | 12 | 29 | 29 | 30 | 196 | 1600 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 9 | 1.7 | area | N/A | IMX425 | 18.8 | Global shutter | Colour; Visible | 1100 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 175 | 1616 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 4.5 | 2 | area | N/A | IMX422 | 8.8 | Global shutter | Monochrome; Visible | 1240 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 175 | 1616 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 4.5 | 2 | area | N/A | IMX422 | 8.8 | Global shutter | Colour; Visible | 1240 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 130 | 1936 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 4.5 | 2.8 | area | N/A | IMX421 | 11 | Global shutter | Monochrome; Visible | 1464 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 522 | 720 | closed housing | USB | USB3.1; USB3.1 Gen1 | CS-Mount | Teledyne FLIR | 6.9 | 0.4 | area | N/A | IMX287 | 6.27 | Global shutter | Monochrome; Visible | 540 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 522 | 720 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 6.9 | 0.4 | area | N/A | IMX287 | 6.27 | Global shutter | Monochrome; Visible | 520 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 522 | 720 | closed housing | USB | USB3.1; USB3.1 Gen1 | CS-Mount | Teledyne FLIR | 6.9 | 0.4 | area | N/A | IMX287 | 6.27 | Global shutter | Colour; Visible | 540 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 522 | 720 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 6.9 | 0.4 | area | N/A | IMX287 | 6.27 | Global shutter | Colour; Visible | 540 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 32 | 4096 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 8.9 | area | N/A | IMX267 | 16.05 | Global shutter | Monochrome; Visible | 2160 | 0.036 | |
| N/A | 12 | 29 | 29 | 30 | 226 | 1440 | closed housing | USB | USB3.1; USB3.1 Gen1 | CS-Mount | Teledyne FLIR | 3.45 | 1.6 | area | N/A | IMX273 | 6.27 | Global shutter | Colour; Visible | 1080 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 32 | 4096 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 8.9 | area | N/A | IMX267 | 16.05 | Global shutter | Colour; Visible | 2160 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 55 | 2048 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 3.2 | area | N/A | IMX265 | 8.89 | Global shutter | Monochrome; Visible | 1536 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 55 | 2048 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 3.2 | area | N/A | IMX265 | 8.89 | Global shutter | Colour; Visible | 1536 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 35 | 2448 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 5 | area | N/A | IMX264 | 8.89 | Global shutter | Monochrome; Visible | 2048 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 35 | 2448 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 5 | area | N/A | IMX264 | 8.89 | Global shutter | Colour; Visible | 2048 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 42 | 4096 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 8.9 | area | N/A | IMX255 | 16.05 | Global shutter | Monochrome; Visible | 2160 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 42 | 4096 | closed housing | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 3.45 | 8.9 | area | N/A | IMX255 | 16.05 | Global shutter | Colour; Visible | 2160 | 0.036 | |
| N/A | 12 | 29 | 29 | 10 | 18 | 5472 | bare board 180° | USB | USB3.1; USB3.1 Gen1 | C-Mount | Teledyne FLIR | 2.4 | 20 | area | N/A | IMX183 | 15.8 | Rolling shutter | Colour; Visible | 3648 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 72 | 2448 | bare board 180° | USB | USB3.1; USB3.1 Gen1 | None | Teledyne FLIR | 2.74 | 5 | area | N/A | IMX547 | 8.9 | Global shutter | Colour; Visible | 2048 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 72 | 2448 | closed housing | USB | USB3.1; USB3.1 Gen1 | CS-Mount | Teledyne FLIR | 2.74 | 5 | area | N/A | IMX547 | 8.9 | Global shutter | Colour; Visible | 2048 | 0.036 | |
| N/A | 10; 12; 8 | 29 | 29 | 30 | 72 | 2448 | closed housing | USB | USB3.1; USB3.1 Gen1 | CS-Mount | Teledyne FLIR | 2.74 | 5 | area | N/A | IMX547 | 8.9 | Global shutter | Monochrome; Visible | 2048 | 0.036 | |
| N/A | 10; 12; 8 | 39 | 29 | 29 | 10 | 4096 | closed housing | USB | USB3.1 | C-Mount | Teledyne FLIR | 2.74 | 12.3 | area | Single sensor | IMX545 | 13.91 | Global shutter | Colour; Visible | 3000 | 0.053 |
